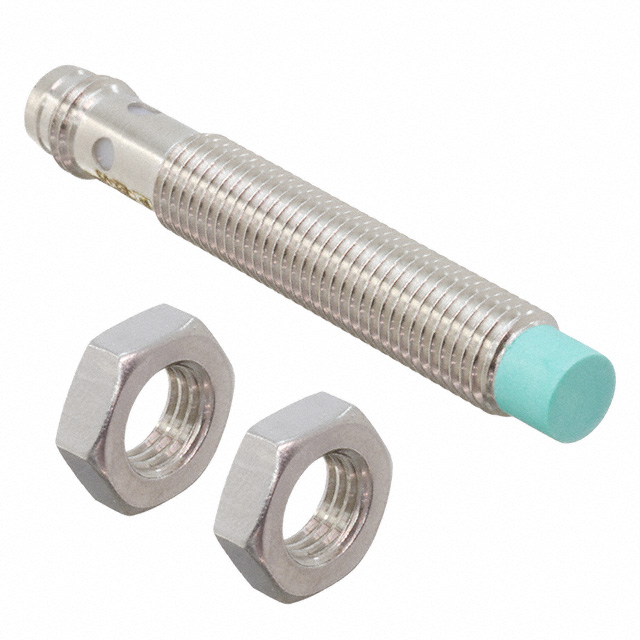

NBN3-8GM40-E2-V3

Active

PEPPERL+FUCHS

INDUCTIVE SENSOR

Search across all available documentation for this part.

Active

PEPPERL+FUCHS

INDUCTIVE SENSOR

Technical Specifications

Parameters and characteristics for this part

Part	Shielding	Sensing Distance	Sensing Distance	Voltage - Supply [Max]	Voltage - Supply [Min]	Sensor Type	Package / Case	Output Type	Termination Style	Material - Body	Indicator [custom]	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]
PEPPERL+FUCHS NBN3-8GM50-E0	Unshielded	3 mm	0.118 in	30 VDC	5 V	Inductive	Cylinder Threaded - M8	NPN-NO 3-Wire	Cable	Nickel-Plated Brass	LED	IP67	85 °C	-40 °C
PEPPERL+FUCHS NBN3-8GM30-E0	Unshielded	3 mm	0.118 in	30 VDC	5 V	Inductive	Cylinder Threaded - M8	NPN-NO 3-Wire	Cable	Nickel-Plated Brass	LED	IP67	85 °C	-40 °C
PEPPERL+FUCHS NBN3-8GM30-E2	Unshielded	3 mm	0.118 in	30 VDC	5 V	Inductive	Cylinder Threaded - M8	NPN-NO 3-Wire	Cable	Nickel-Plated Brass	LED	IP67	85 °C	-40 °C
PEPPERL+FUCHS NBN3-8GM40-E2-V3	Unshielded	3 mm	0.118 in	30 VDC	5 V	Inductive	Cylinder Threaded - M8	PNP-NO 3-Wire	Connector	Nickel-Plated Brass	LED	IP67	85 °C	-40 °C
PEPPERL+FUCHS NBN3-8GS40-E2-PUR	Unshielded	3 mm	0.118 in	30 VDC	5 V	Inductive	Cylinder Threaded - M8	PNP-NO 3-Wire	Cable	Stainless Steel	LED	IP67	85 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

INDUCTIVE SENSOR
