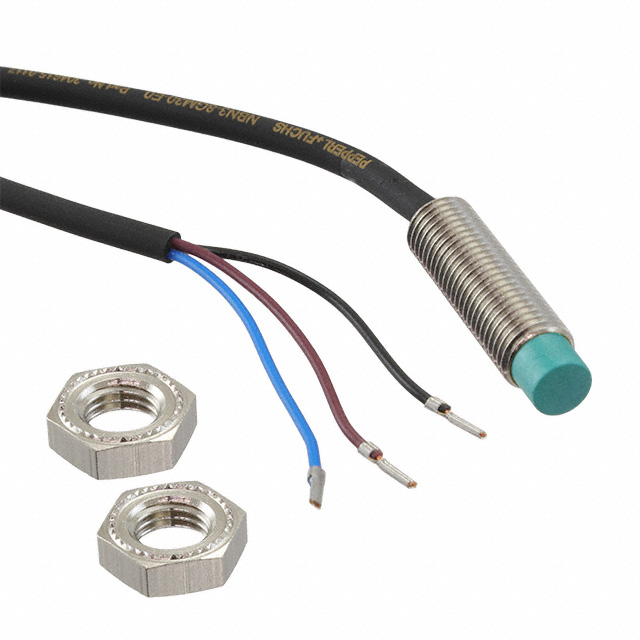

NBN3-8GM30-E0
ActivePEPPERL+FUCHS
INDUCTIVE SEN 3MM NPN
Deep-Dive with AI
Search across all available documentation for this part.
NBN3-8GM30-E0
ActivePEPPERL+FUCHS
INDUCTIVE SEN 3MM NPN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | NBN3-8GM30-E0 |
|---|---|
| Indicator [custom] | LED |
| Ingress Protection | IP67 |
| Material - Body | Nickel-Plated Brass |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Type | NPN-NO, 3-Wire |
| Package / Case | Cylinder, Threaded - M8 |
| Sensing Distance | 3 mm |
| Sensing Distance | 0.118 in |
| Sensor Type | Inductive |
| Shielding | Unshielded |
| Termination Style | Cable |
| Voltage - Supply [Max] | 30 VDC |
| Voltage - Supply [Min] | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 140.21 | |
| 5 | $ 118.27 | |||
| 10 | $ 109.92 | |||
| 25 | $ 99.79 | |||
| 50 | $ 92.75 | |||
| 100 | $ 89.70 | |||
Description
General part information
NBN3-8 Series
INDUCTIVE SEN 3MM NPN
Documents
Technical documentation and resources
No documents available
