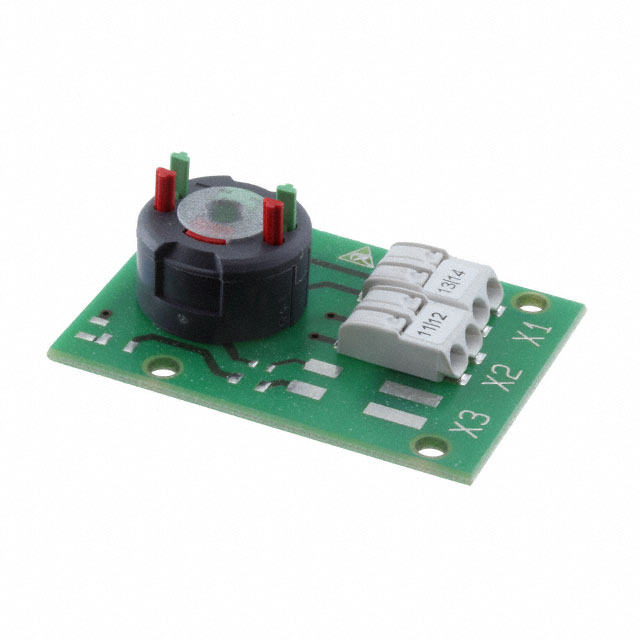

5.00.100.234/0100

Active

RAFI USA

CONTACT BLOCK SPST 0.1A 35V

Search across all available documentation for this part.

Active

RAFI USA

CONTACT BLOCK SPST 0.1A 35V

Technical Specifications

Parameters and characteristics for this part

Specification	5.00.100.234/0100

(Select First, Then Apply Filters) Compatible Series	Rafix 22 FS
Circuit	SPST-NO + SPST-NC
Contact Rating @ Voltage	35 VAC/DC, 0.1 A
Requires	Switch Body
Termination Style	Screwless Clamp

Part	Circuit	Requires	(Select First, Then Apply Filters) Compatible Series	Termination Style	Contact Rating @ Voltage
RAFI USA 5.00.100.160/0000	SPST-NO	Switch Body	Rafix 22QR	Screwless Clamp	0.1 A 35 VAC/DC
RAFI USA 5.00.100.224/0100	DPST-NC	Switch Body	Rafix 22 FS	Screwless Clamp	0.1 A 35 VAC/DC
RAFI USA 5.00.100.240/0100	DPST-NO	Switch Body	Rafix 22 FS	Screwless Clamp	0.1 A 35 VAC/DC
RAFI USA 5.00.100.143/0000	SPST-NO + SPST-NC	Switch Body	Rafix 22QR	Screw Terminal	10 A 250 VAC
RAFI USA 5.00.100.105/0000
RAFI USA 5.00.100.145/0000	SPST-NO	Switch Body	Rafix 22QR	Screwless Clamp	10 A 125 VAC
RAFI USA 5.00100.0540000
RAFI USA 5.00.100.142/0000	DPST-NO	Switch Body	Rafix 22QR	Screw Terminal	10 A 250 VAC
RAFI USA 5.00.100.234/0100	SPST-NO + SPST-NC	Switch Body	Rafix 22 FS	Screwless Clamp	0.1 A 35 VAC/DC
RAFI USA 5.00.100.165/0000	SPST-NO	Switch Body	Rafix 22QR	Screw Terminal	0.1 A 35 VAC/DC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Configurable Contact Block SPST-NO + SPST-NC 0.1A @ 35VAC/DC
