5.00.100.224/0100

Active

RAFI USA

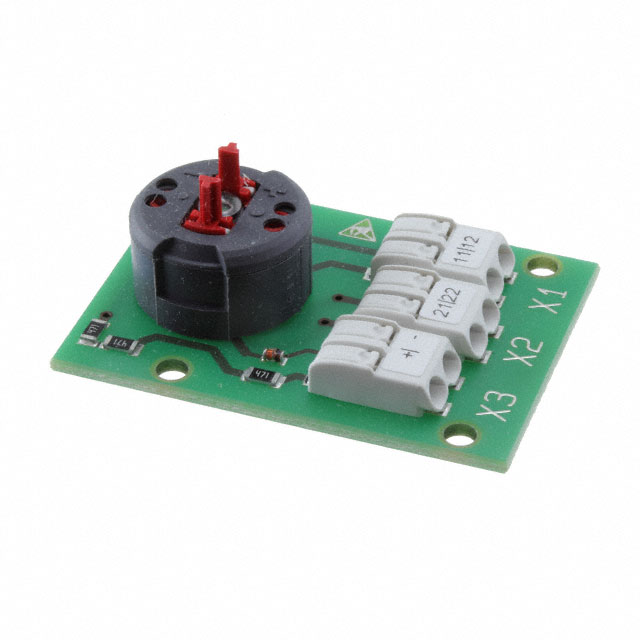

CONTACT BLOCK DPST-NC 0.1A 35V

Search across all available documentation for this part.

Active

RAFI USA

CONTACT BLOCK DPST-NC 0.1A 35V

Technical Specifications

Parameters and characteristics for this part

Specification	5.00.100.224/0100

(Select First, Then Apply Filters) Compatible Series	Rafix 22 FS
Circuit	DPST-NC
Contact Rating @ Voltage	35 VAC/DC, 0.1 A
Requires	Switch Body
Termination Style	Screwless Clamp

Part	Circuit	Requires	(Select First, Then Apply Filters) Compatible Series	Termination Style	Contact Rating @ Voltage
RAFI USA 5.00.100.160/0000	SPST-NO	Switch Body	Rafix 22QR	Screwless Clamp	0.1 A 35 VAC/DC
RAFI USA 5.00.100.224/0100	DPST-NC	Switch Body	Rafix 22 FS	Screwless Clamp	0.1 A 35 VAC/DC
RAFI USA 5.00.100.240/0100	DPST-NO	Switch Body	Rafix 22 FS	Screwless Clamp	0.1 A 35 VAC/DC
RAFI USA 5.00.100.143/0000	SPST-NO + SPST-NC	Switch Body	Rafix 22QR	Screw Terminal	10 A 250 VAC
RAFI USA 5.00.100.105/0000
RAFI USA 5.00.100.145/0000	SPST-NO	Switch Body	Rafix 22QR	Screwless Clamp	10 A 125 VAC
RAFI USA 5.00100.0540000
RAFI USA 5.00.100.142/0000	DPST-NO	Switch Body	Rafix 22QR	Screw Terminal	10 A 250 VAC
RAFI USA 5.00.100.234/0100	SPST-NO + SPST-NC	Switch Body	Rafix 22 FS	Screwless Clamp	0.1 A 35 VAC/DC
RAFI USA 5.00.100.165/0000	SPST-NO	Switch Body	Rafix 22QR	Screw Terminal	0.1 A 35 VAC/DC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Configurable Contact Block DPST-NC 0.1A @ 35VAC/DC
