OSTTJ060150

Active

On Shore Technology Inc.

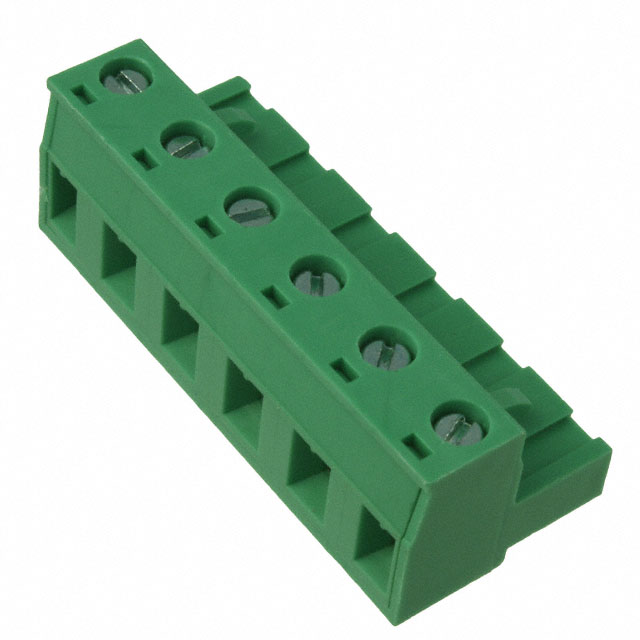

TERM BLOCK PLUG 6POS 7.62MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

OSTTJ060150

Active

On Shore Technology Inc.

TERM BLOCK PLUG 6POS 7.62MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	OSTTJ060150

Contact Material	Brass
Housing Material	Brass
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Levels	1
Number of Positions	6
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-30 ░C
Pitch [x]	0.3 in
Pitch [x]	7.62 mm
Positions Per Level	6
Termination Style	Screw
Torque - Screw	0.56 Nm
Torque - Screw	5 Lb-In
Type	Plug, Female Sockets
Voltage - UL	300 V
Wire Gauge or Range - AWG [Max]	24 AWG
Wire Gauge or Range - AWG [Min]	12 AWG
Wire Strip Length [Max]	8 mm
Wire Strip Length [Min]	7 mm

OSTTJ06 Series

Part	Number of Levels	Housing Material	Material Flammability Rating	Mounting Type	Number of Positions	Positions Per Level	Operating Temperature [Min]	Operating Temperature [Max]	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Type	Termination Style	Contact Material	Torque - Screw	Torque - Screw	Color	Pitch [x]	Pitch [x]	Voltage - UL	Wire Gauge or Range - mm˛ [Min]	Wire Gauge or Range - mm˛ [Max]	Wire Strip Length [Min]	Wire Strip Length [Max]	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm˛
On Shore Technology Inc. OSTTJ065152	1	Brass	UL94 V-0	Free Hanging (In-Line)	6	6	-30 ░C	105 ░C	24 AWG	12 AWG	Plug Female Sockets	Screw	Brass	0.56 Nm	5 Lb-In	Green	0.2 in	5.08 mm	300 V	0.34 mm˛	2.5 mm˛	7 mm	8 mm
On Shore Technology Inc. OSTTJ0611530	1	Brass		Free Hanging (In-Line)	6	6	-30 ░C	105 ░C	26 AWG	16 AWG	Plug Female Sockets	Screw	Brass	0.28 Nm	2.5 Lb-In		0.138 in	3.5 mm	300 V			6 mm	7 mm
On Shore Technology Inc. OSTTJ067150	1	Brass	UL94 V-0	Free Hanging (In-Line)	6	6	-40 °C	115 °C	30 AWG	12 AWG	Plug Female Sockets	Screw	Brass	0.56 Nm	5 Lb-In	Green	0.197 in	5 mm	300 V			7 mm	8 mm	0.34 mm²	2.5 mm²
On Shore Technology Inc. OSTTJ0631520	1	Brass	UL94 V-0	Free Hanging (In-Line)	6	6	-30 ░C	105 ░C	26 AWG	16 AWG	Plug Female Sockets	Screw	Brass	0.28 Nm	2.5 Lb-In	Green	0.15 in	3.81 mm	300 V			6 mm	7 mm			1.5 mm˛
On Shore Technology Inc. OSTTJ0611520	1	Brass	UL94 V-0	Free Hanging (In-Line)	6	6	-30 ░C	105 ░C	26 AWG	16 AWG	Plug Female Sockets	Screw	Brass	0.28 Nm	2.5 Lb-In		0.138 in	3.5 mm	300 V			6 mm	7 mm
On Shore Technology Inc. OSTTJ060150	1	Brass	UL94 V-0	Free Hanging (In-Line)	6	6	-30 ░C	105 ░C	24 AWG	12 AWG	Plug Female Sockets	Screw	Brass	0.56 Nm	5 Lb-In		0.3 in	7.62 mm	300 V			7 mm	8 mm
On Shore Technology Inc. OSTTJ060152	1	Brass	UL94 V-0	Free Hanging (In-Line)	6	6	-30 ░C	105 ░C	24 AWG	12 AWG	Plug Female Sockets	Screw	Brass	0.56 Nm	5 Lb-In		0.3 in	7.62 mm	300 V			7 mm	8 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 4.56
		10	$ 3.24
		25	$ 2.84
		50	$ 2.59
		100	$ 2.38
		250	$ 2.17
		500	$ 2.04
		1000	$ 1.94
		5000	$ 1.79

Description

General part information

OSTTJ06 Series

6 Position Terminal Block Plug, Female Sockets 0.300" (7.62mm) Free Hanging (In-Line)
