OSTTJ067150

Active

On Shore Technology Inc.

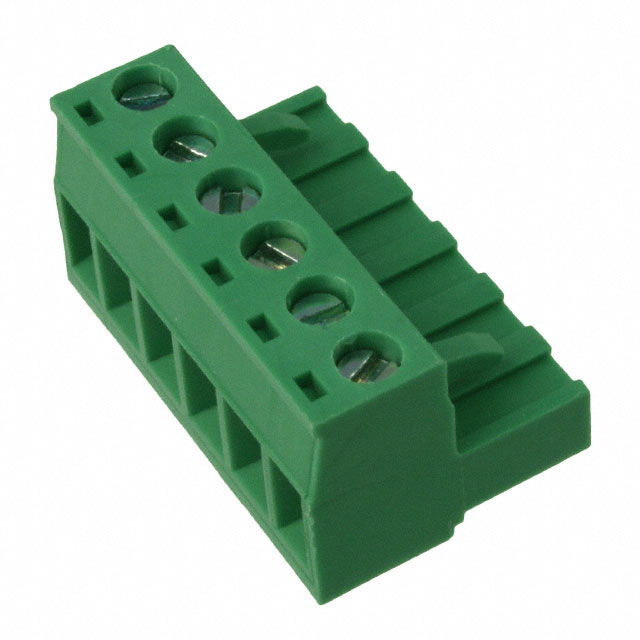

TERM BLOCK PLUG 6POS STR 5MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

OSTTJ067150

Active

On Shore Technology Inc.

TERM BLOCK PLUG 6POS STR 5MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	OSTTJ067150

Color	Green
Contact Material	Brass
Housing Material	Brass
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Levels	1
Number of Positions	6
Operating Temperature [Max]	115 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	5 mm
Pitch [x]	0.197 in
Positions Per Level	6
Termination Style	Screw
Torque - Screw	0.56 Nm
Torque - Screw	5 Lb-In
Type	Plug, Female Sockets
Voltage - UL	300 V
Wire Gauge or Range - AWG [Max]	30 AWG
Wire Gauge or Range - AWG [Min]	12 AWG
Wire Gauge or Range - mm² [Max]	2.5 mm²
Wire Gauge or Range - mm² [Min]	0.34 mm²
Wire Strip Length [Max]	8 mm
Wire Strip Length [Min]	7 mm

OSTTJ06 Series

Part	Number of Levels	Housing Material	Material Flammability Rating	Mounting Type	Number of Positions	Positions Per Level	Operating Temperature [Min]	Operating Temperature [Max]	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Type	Termination Style	Contact Material	Torque - Screw	Torque - Screw	Color	Pitch [x]	Pitch [x]	Voltage - UL	Wire Gauge or Range - mm˛ [Min]	Wire Gauge or Range - mm˛ [Max]	Wire Strip Length [Min]	Wire Strip Length [Max]	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm˛
On Shore Technology Inc. OSTTJ065152	1	Brass	UL94 V-0	Free Hanging (In-Line)	6	6	-30 ░C	105 ░C	24 AWG	12 AWG	Plug Female Sockets	Screw	Brass	0.56 Nm	5 Lb-In	Green	0.2 in	5.08 mm	300 V	0.34 mm˛	2.5 mm˛	7 mm	8 mm
On Shore Technology Inc. OSTTJ0611530	1	Brass		Free Hanging (In-Line)	6	6	-30 ░C	105 ░C	26 AWG	16 AWG	Plug Female Sockets	Screw	Brass	0.28 Nm	2.5 Lb-In		0.138 in	3.5 mm	300 V			6 mm	7 mm
On Shore Technology Inc. OSTTJ067150	1	Brass	UL94 V-0	Free Hanging (In-Line)	6	6	-40 °C	115 °C	30 AWG	12 AWG	Plug Female Sockets	Screw	Brass	0.56 Nm	5 Lb-In	Green	0.197 in	5 mm	300 V			7 mm	8 mm	0.34 mm²	2.5 mm²
On Shore Technology Inc. OSTTJ0631520	1	Brass	UL94 V-0	Free Hanging (In-Line)	6	6	-30 ░C	105 ░C	26 AWG	16 AWG	Plug Female Sockets	Screw	Brass	0.28 Nm	2.5 Lb-In	Green	0.15 in	3.81 mm	300 V			6 mm	7 mm			1.5 mm˛
On Shore Technology Inc. OSTTJ0611520	1	Brass	UL94 V-0	Free Hanging (In-Line)	6	6	-30 ░C	105 ░C	26 AWG	16 AWG	Plug Female Sockets	Screw	Brass	0.28 Nm	2.5 Lb-In		0.138 in	3.5 mm	300 V			6 mm	7 mm
On Shore Technology Inc. OSTTJ060150	1	Brass	UL94 V-0	Free Hanging (In-Line)	6	6	-30 ░C	105 ░C	24 AWG	12 AWG	Plug Female Sockets	Screw	Brass	0.56 Nm	5 Lb-In		0.3 in	7.62 mm	300 V			7 mm	8 mm
On Shore Technology Inc. OSTTJ060152	1	Brass	UL94 V-0	Free Hanging (In-Line)	6	6	-30 ░C	105 ░C	24 AWG	12 AWG	Plug Female Sockets	Screw	Brass	0.56 Nm	5 Lb-In		0.3 in	7.62 mm	300 V			7 mm	8 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.13
		10	$ 2.01
		25	$ 1.79
		50	$ 1.67
		100	$ 1.58
		250	$ 1.50
		500	$ 1.45
		1000	$ 1.42
		5000	$ 1.37

Description

General part information

OSTTJ06 Series

6 Position Terminal Block Plug, Female Sockets 0.197" (5.00mm) Free Hanging (In-Line)
