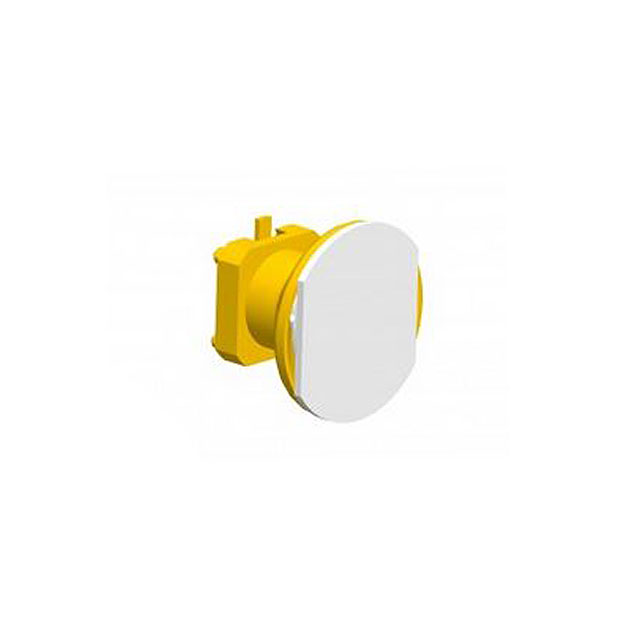

PSMP-MSSB-PCT1R

Active

Amphenol RF

CONNECTOR: COAXIAL; SOCKET; MALE; PSMP; THT; ON PCBS; STRAIGHT; 50Ω

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsPSMP Series Product Intro

PSMP-MSSB-PCT1R

Active

Amphenol RF

CONNECTOR: COAXIAL; SOCKET; MALE; PSMP; THT; ON PCBS; STRAIGHT; 50Ω

Deep-Dive with AI

DocumentsPSMP Series Product Intro

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PSMP-MSSB-PCT1R

Body Finish	Gold
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	PSMP
Connector Type	Male Pin, Jack
Contact Termination	Solder
Dielectric Material	Polyetheretherketone (PEEK)
Fastening Type	Snap-On
Features	Smooth Bore
Frequency - Max [Max]	10 GHz
Housing Color	Gold
Impedance	50 Ohms
Mounting Type	Surface Mount, Through Hole
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	480 V

PSMP Series

Part	Fastening Type	Mounting Type	Center Contact Plating	Conversion Type	Operating Temperature [Min]	Operating Temperature [Max]	Center Gender	Body Material	Style	Dielectric Material	Frequency - Max [Max]	Convert To (Adapter End)	Impedance	Adapter Type	Convert From (Adapter End)	Body Finish	Center Contact Material	Connector Style	Housing Color	Features	Connector Type	Shield Termination	Contact Termination	Number of Ports	Voltage Rating
Amphenol RF PSMP-FSBA-1175	Snap-On	Free Hanging (In-Line)	Gold	Same Series	-65 ░C	165 °C	Female to Female	Beryllium Copper	Straight	Polytetrafluoroethylene (PTFE)	10 GHz	Female Socket PSMP Plug	50 Ohms	Plug to Plug	PSMP Plug Female Socket	White Bronze	Beryllium Copper
Amphenol RF PSMP-FSBA-2380	Snap-On	Free Hanging (In-Line)	Gold	Same Series	-65 ░C	165 °C	Female to Female	Beryllium Copper	Straight	Polytetrafluoroethylene (PTFE)	10 GHz	Female Socket PSMP Plug	50 Ohms	Plug to Plug	PSMP Plug Female Socket	White Bronze	Beryllium Copper
Amphenol RF PSMP-FSBA-1000	Snap-On	Free Hanging (In-Line)	Gold	Same Series	-65 ░C	165 °C	Female to Female	Beryllium Copper	Straight	Polytetrafluoroethylene (PTFE)	10 GHz	Female Socket PSMP Plug	50 Ohms	Plug to Plug	PSMP Plug Female Socket	White Bronze	Beryllium Copper
Amphenol RF PSMP-FSBA-1755	Snap-On	Free Hanging (In-Line)	Gold	Same Series	-65 ░C	165 °C	Female to Female	Beryllium Copper	Straight	Polytetrafluoroethylene (PTFE)	10 GHz	Female Socket PSMP Plug	50 Ohms	Plug to Plug	PSMP Plug Female Socket	White Bronze	Beryllium Copper
Amphenol RF PSMP-FSBA-2580	Snap-On	Free Hanging (In-Line)	Gold	Same Series	-65 ░C	165 °C	Female to Female	Beryllium Copper	Straight	Polytetrafluoroethylene (PTFE)	10 GHz	Female Socket PSMP Plug	50 Ohms	Plug to Plug	PSMP Plug Female Socket	White Bronze	Beryllium Copper
Amphenol RF PSMP-MSLD-PCTEM	Snap-On	Surface Mount Through Hole	Gold		-65 ░C	165 °C		Brass		Liquid Crystal Polymer (LCP)	10 GHz		50 Ohms			Gold	Brass	PSMP	Gold	EMI Ring Limited Detent	Jack Male Pin	Compression	Solder	1	480 V
Amphenol RF PSMP-MSSB-PCT1R	Snap-On	Surface Mount Through Hole	Gold		-65 ░C	165 °C		Brass		Polyetheretherketone (PEEK)	10 GHz		50 Ohms			Gold	Brass	PSMP	Gold	Smooth Bore	Jack Male Pin	Solder	Solder	1	480 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 8.37
TME	N/A	100	$ 10.10

Description

General part information

PSMP Series

PSMP Connector Jack, Male Pin 50 Ohms Surface Mount, Through Hole Solder

Documents

Technical documentation and resources

PSMP Series Product Intro

Datasheet
