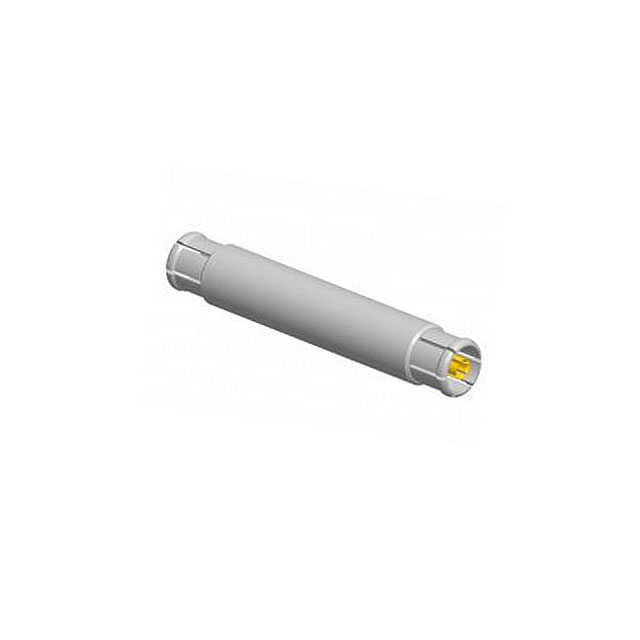

PSMP-FSBA-2580

Active

Amphenol RF

PSMP-FSBA-2580 AMPHENOL RF CONNECTORS SMP ADAPTER PL/PL 0HZ TO 10GHZ 50OHM ST GOLD - ARROW.COM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsPSMP Series Product Intro

PSMP-FSBA-2580

Active

Amphenol RF

PSMP-FSBA-2580 AMPHENOL RF CONNECTORS SMP ADAPTER PL/PL 0HZ TO 10GHZ 50OHM ST GOLD - ARROW.COM

Deep-Dive with AI

DocumentsPSMP Series Product Intro

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PSMP-FSBA-2580

Adapter Type	Plug to Plug
Body Finish	White Bronze
Body Material	Beryllium Copper
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Center Gender	Female to Female
Conversion Type	Same Series
Convert From (Adapter End)	PSMP Plug, Female Socket
Convert To (Adapter End)	PSMP Plug, Female Socket
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	10 GHz
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Style	Straight

PSMP Series

Part	Fastening Type	Mounting Type	Center Contact Plating	Conversion Type	Operating Temperature [Min]	Operating Temperature [Max]	Center Gender	Body Material	Style	Dielectric Material	Frequency - Max [Max]	Convert To (Adapter End)	Impedance	Adapter Type	Convert From (Adapter End)	Body Finish	Center Contact Material	Connector Style	Housing Color	Features	Connector Type	Shield Termination	Contact Termination	Number of Ports	Voltage Rating
Amphenol RF PSMP-FSBA-1175	Snap-On	Free Hanging (In-Line)	Gold	Same Series	-65 ░C	165 °C	Female to Female	Beryllium Copper	Straight	Polytetrafluoroethylene (PTFE)	10 GHz	Female Socket PSMP Plug	50 Ohms	Plug to Plug	PSMP Plug Female Socket	White Bronze	Beryllium Copper
Amphenol RF PSMP-FSBA-2380	Snap-On	Free Hanging (In-Line)	Gold	Same Series	-65 ░C	165 °C	Female to Female	Beryllium Copper	Straight	Polytetrafluoroethylene (PTFE)	10 GHz	Female Socket PSMP Plug	50 Ohms	Plug to Plug	PSMP Plug Female Socket	White Bronze	Beryllium Copper
Amphenol RF PSMP-FSBA-1000	Snap-On	Free Hanging (In-Line)	Gold	Same Series	-65 ░C	165 °C	Female to Female	Beryllium Copper	Straight	Polytetrafluoroethylene (PTFE)	10 GHz	Female Socket PSMP Plug	50 Ohms	Plug to Plug	PSMP Plug Female Socket	White Bronze	Beryllium Copper
Amphenol RF PSMP-FSBA-1755	Snap-On	Free Hanging (In-Line)	Gold	Same Series	-65 ░C	165 °C	Female to Female	Beryllium Copper	Straight	Polytetrafluoroethylene (PTFE)	10 GHz	Female Socket PSMP Plug	50 Ohms	Plug to Plug	PSMP Plug Female Socket	White Bronze	Beryllium Copper
Amphenol RF PSMP-FSBA-2580	Snap-On	Free Hanging (In-Line)	Gold	Same Series	-65 ░C	165 °C	Female to Female	Beryllium Copper	Straight	Polytetrafluoroethylene (PTFE)	10 GHz	Female Socket PSMP Plug	50 Ohms	Plug to Plug	PSMP Plug Female Socket	White Bronze	Beryllium Copper
Amphenol RF PSMP-MSLD-PCTEM	Snap-On	Surface Mount Through Hole	Gold		-65 ░C	165 °C		Brass		Liquid Crystal Polymer (LCP)	10 GHz		50 Ohms			Gold	Brass	PSMP	Gold	EMI Ring Limited Detent	Jack Male Pin	Compression	Solder	1	480 V
Amphenol RF PSMP-MSSB-PCT1R	Snap-On	Surface Mount Through Hole	Gold		-65 ░C	165 °C		Brass		Polyetheretherketone (PEEK)	10 GHz		50 Ohms			Gold	Brass	PSMP	Gold	Smooth Bore	Jack Male Pin	Solder	Solder	1	480 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	120	$ 11.88

Description

General part information

PSMP Series

Adapter Coaxial Connector PSMP Plug, Female Socket To PSMP Plug, Female Socket 50 Ohms

Documents

Technical documentation and resources

PSMP Series Product Intro

Datasheet
