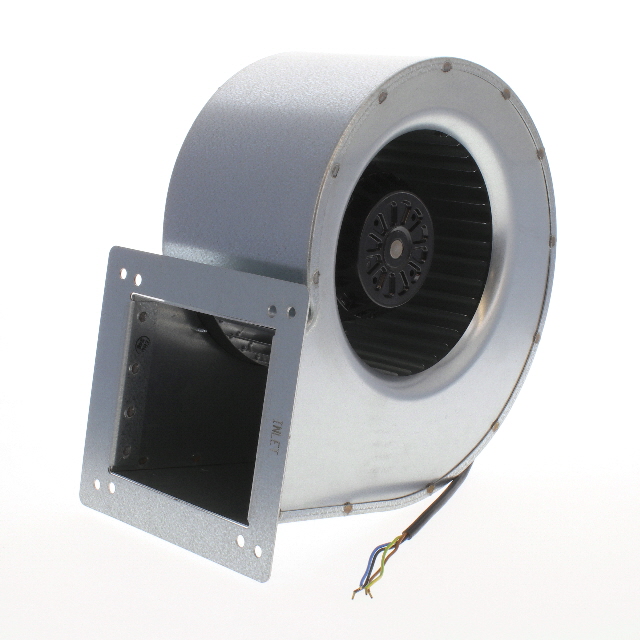

EE1G-115-180-04

Active

ebm-papst Inc.

AC BLOWER CENTRIFUGAL BALL BEARING 115V 450CFM 64DB

Search across all available documentation for this part.

Active

ebm-papst Inc.

AC BLOWER CENTRIFUGAL BALL BEARING 115V 450CFM 64DB

Technical Specifications

Parameters and characteristics for this part

Specification	EE1G-115-180-04

Air Flow	12.6 m³/min
Air Flow	450 CFM
Bearing Type	Ball
Fan Type	Blower, Centrifugal
Features	Capacitor
Material - Blade	Steel
Material - Frame	Steel
Noise	64 dB(A)
Operating Temperature [custom]	122 °F
Operating Temperature [custom]	50 °C
Power (Watts)	180 W
Size / Dimension	Rectangular/Rounded
Size / Dimension [x]	260 mm
Size / Dimension [y]	302 mm
Termination	3 Wire Leads
Voltage - Rated	115 VAC
Width [y]	170 mm

Part	Power (Watts)	Operating Temperature	Operating Temperature	Noise	Bearing Type	Termination	Size / Dimension	Size / Dimension [y]	Size / Dimension [x]	Features	Material - Blade	Material - Frame	Width [x]	Fan Type	Air Flow	Air Flow	Voltage - Rated	Width [y]	Operating Temperature [custom]	Operating Temperature [custom]
ebm-papst Inc. EE1G-230-180-06	180 W	60 °C	60 °C	64 dB(A)	Ball	3 Wire Leads	Rectangular/Rounded	357 mm	287 mm	Capacitor	Steel	Steel	177 mm	Blower Centrifugal	500 CFM	14 mł/min	230 VAC
ebm-papst Inc. EE1G-115-140-03	195 W			64 dB(A)	Ball	3 Wire Leads	Rectangular/Rounded	256.5 mm	220 mm	Capacitor	Steel	Steel		Blower Centrifugal	270 CFM	7.56 mł/min	115 VAC	130 mm	122 °F	50 °C
ebm-papst Inc. EE1G-115-180-04	180 W			64 dB(A)	Ball	3 Wire Leads	Rectangular/Rounded	302 mm	260 mm	Capacitor	Steel	Steel		Blower Centrifugal	450 CFM	12.6 m³/min	115 VAC	170 mm	122 °F	50 °C
ebm-papst Inc. EE1G-230-140-02	200 W			68 dB	Ball	3 Wire Leads	Rectangular/Rounded	256.5 mm	220 mm	Capacitor	Steel	Steel		Blower Centrifugal	290 CFM	8.12 m³/min	230 VAC	130 mm	122 °F	50 °C
ebm-papst Inc. EE1G-230-180-04	180 W	60 °C	60 °C	64 dB(A)	Ball	3 Wire Leads	Rectangular/Rounded	302 mm	260 mm	Capacitor	Steel	Steel		Blower Centrifugal	450 CFM	12.6 m³/min	230 VAC	170 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	1	$ 429.17
		10	$ 414.36
Digikey	Bulk	1	$ 415.19

General part information

Fan Blower, Centrifugal 115VAC Rectangular/Rounded - 260mm L x 302mm H Ball 450.0 CFM (12.60m³/min) 3 Wire Leads
