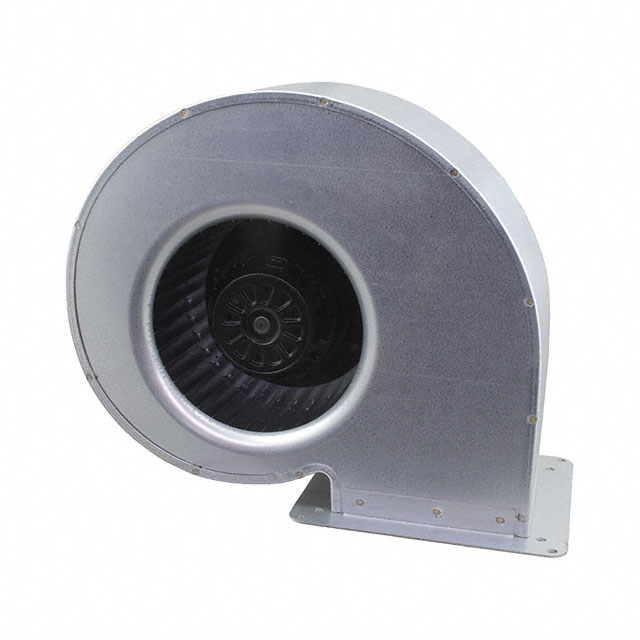

EE1G-230-180-06

Active

ebm-papst Inc.

BLOWER

Search across all available documentation for this part.

Active

ebm-papst Inc.

BLOWER

Technical Specifications

Parameters and characteristics for this part

Part	Power (Watts)	Operating Temperature	Operating Temperature	Noise	Bearing Type	Termination	Size / Dimension	Size / Dimension [y]	Size / Dimension [x]	Features	Material - Blade	Material - Frame	Width [x]	Fan Type	Air Flow	Air Flow	Voltage - Rated	Width [y]	Operating Temperature [custom]	Operating Temperature [custom]
ebm-papst Inc. EE1G-230-180-06	180 W	60 °C	60 °C	64 dB(A)	Ball	3 Wire Leads	Rectangular/Rounded	357 mm	287 mm	Capacitor	Steel	Steel	177 mm	Blower Centrifugal	500 CFM	14 mł/min	230 VAC
ebm-papst Inc. EE1G-115-140-03	195 W			64 dB(A)	Ball	3 Wire Leads	Rectangular/Rounded	256.5 mm	220 mm	Capacitor	Steel	Steel		Blower Centrifugal	270 CFM	7.56 mł/min	115 VAC	130 mm	122 °F	50 °C
ebm-papst Inc. EE1G-115-180-04	180 W			64 dB(A)	Ball	3 Wire Leads	Rectangular/Rounded	302 mm	260 mm	Capacitor	Steel	Steel		Blower Centrifugal	450 CFM	12.6 m³/min	115 VAC	170 mm	122 °F	50 °C
ebm-papst Inc. EE1G-230-140-02	200 W			68 dB	Ball	3 Wire Leads	Rectangular/Rounded	256.5 mm	220 mm	Capacitor	Steel	Steel		Blower Centrifugal	290 CFM	8.12 m³/min	230 VAC	130 mm	122 °F	50 °C
ebm-papst Inc. EE1G-230-180-04	180 W	60 °C	60 °C	64 dB(A)	Ball	3 Wire Leads	Rectangular/Rounded	302 mm	260 mm	Capacitor	Steel	Steel		Blower Centrifugal	450 CFM	12.6 m³/min	230 VAC	170 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Blower, Centrifugal 230VAC Rectangular/Rounded - 287mm L x 357mm H Ball 500.0 CFM (14.00m³/min) 3 Wire Leads
