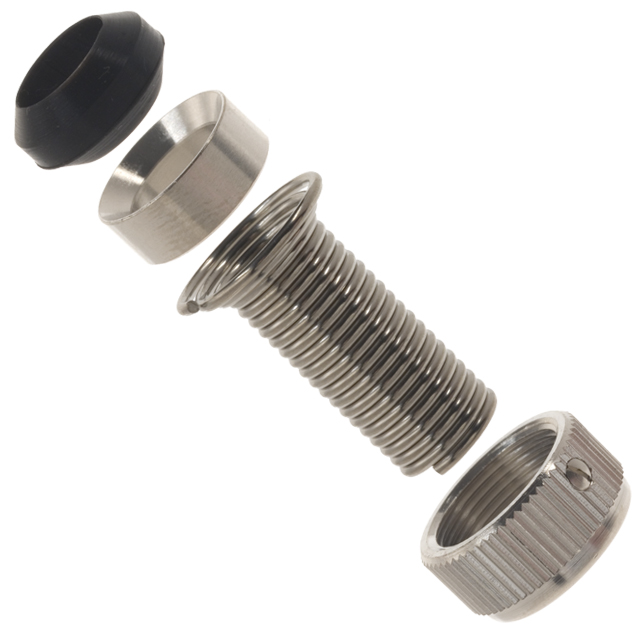

RM12WBP-CP(6)(71)

Obsolete

Hirose Electric USA, Inc.

CONNECTOR ACCESSORIES CLAMP STRAIGHT

Search across all available documentation for this part.

Obsolete

Hirose Electric USA, Inc.

CONNECTOR ACCESSORIES CLAMP STRAIGHT

Technical Specifications

Parameters and characteristics for this part

Specification	RM12WBP-CP(6)(71)

Cable Exit	180 °
Cable Opening [custom]	0.295 in
Cable Opening [custom]	7.5 mm
Color	Silver
Diameter - Outside [diameter]	0.63 in
Diameter - Outside [diameter]	16 mm
Features	Washer, Gasket
For Use With/Related Products	RM-W Series Plug
Includes	2 pc Clamp, 1 Gasket, 1 Washer
Ingress Protection	IP67 - Dust Tight, Waterproof
Material	Zinc Alloy, Brass
Plating	Nickel
Shell Size - Insert	12
Thread Size	M13x0.75
Type	Cable Clamp, Internal

Part	Features	Includes	Diameter - Outside [diameter]	Diameter - Outside [diameter]	For Use With/Related Products	Cable Opening [diameter]	Cable Opening [diameter]	Type	Material	Ingress Protection	Color	Plating	Shell Size - Insert	Thread Size	Cable Exit	Cable Opening [custom]	Cable Opening [custom]	Mounting Type	Connector Type	Orientation	Fastening Type	Number of Positions
Hirose Electric USA, Inc. RM12WBP-CP(4)	Gasket Washer	1 Gasket 1 Washer 2 pc Clamp	0.63 in	16 mm	RM-W Series Plug	5.5 mm	0.217 in	Cable Clamp	Brass Zinc Alloy	IP67 - Dust Tight Waterproof	Silver	Nickel	12	M13x0.75	180 °
Hirose Electric USA, Inc. RM12WBP-CP(7)(71)	Gasket Washer	1 Gasket 1 Washer 2 pc Clamp	0.63 in	16 mm	RM-W Series Plug			Cable Clamp Internal	Brass Zinc Alloy	IP67 - Dust Tight Waterproof	Silver	Nickel	12	M13x0.75	180 °	0.295 in	7.5 mm
Hirose Electric USA, Inc. RM12WBP-3P(71)													12					Free Hanging (In-Line)	Male Pins Plug	Keyed	Bayonet Lock
Hirose Electric USA, Inc. RM12WBP-5P(71)													12					Free Hanging (In-Line)	Male Pins Plug	Keyed	Bayonet Lock
Hirose Electric USA, Inc. RM12WBP-2S(71)													12					Free Hanging (In-Line)	Female Sockets Plug	Keyed	Bayonet Lock	2
Hirose Electric USA, Inc. RM12WBP-CP(6)(71)	Gasket Washer	1 Gasket 1 Washer 2 pc Clamp	0.63 in	16 mm	RM-W Series Plug			Cable Clamp Internal	Brass Zinc Alloy	IP67 - Dust Tight Waterproof	Silver	Nickel	12	M13x0.75	180 °	0.295 in	7.5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Silver Connector Cable Clamp, Internal M13x0.75 12
