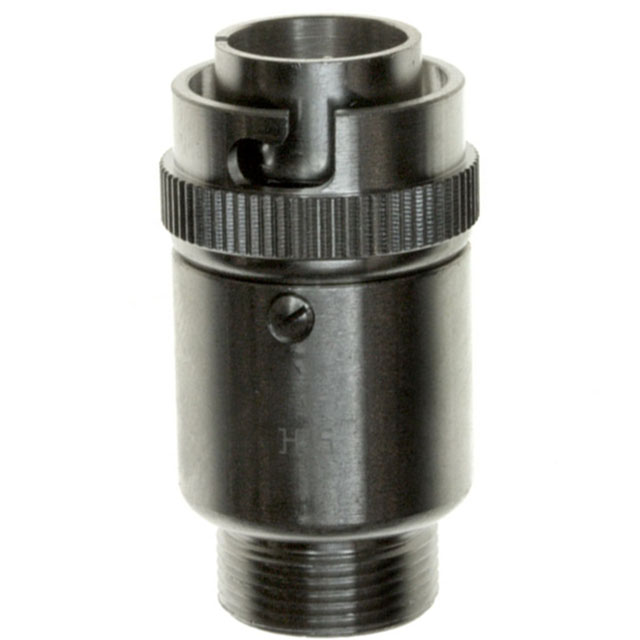

RM12WBP-5P(71)

Obsolete

Hirose Electric USA, Inc.

CONN PLUG MALE 5 POS

Search across all available documentation for this part.

Obsolete

Hirose Electric USA, Inc.

CONN PLUG MALE 5 POS

Technical Specifications

Parameters and characteristics for this part

Part	Features	Includes	Diameter - Outside [diameter]	Diameter - Outside [diameter]	For Use With/Related Products	Cable Opening [diameter]	Cable Opening [diameter]	Type	Material	Ingress Protection	Color	Plating	Shell Size - Insert	Thread Size	Cable Exit	Cable Opening [custom]	Cable Opening [custom]	Mounting Type	Connector Type	Orientation	Fastening Type	Number of Positions
Hirose Electric USA, Inc. RM12WBP-CP(4)	Gasket Washer	1 Gasket 1 Washer 2 pc Clamp	0.63 in	16 mm	RM-W Series Plug	5.5 mm	0.217 in	Cable Clamp	Brass Zinc Alloy	IP67 - Dust Tight Waterproof	Silver	Nickel	12	M13x0.75	180 °
Hirose Electric USA, Inc. RM12WBP-CP(7)(71)	Gasket Washer	1 Gasket 1 Washer 2 pc Clamp	0.63 in	16 mm	RM-W Series Plug			Cable Clamp Internal	Brass Zinc Alloy	IP67 - Dust Tight Waterproof	Silver	Nickel	12	M13x0.75	180 °	0.295 in	7.5 mm
Hirose Electric USA, Inc. RM12WBP-3P(71)													12					Free Hanging (In-Line)	Male Pins Plug	Keyed	Bayonet Lock
Hirose Electric USA, Inc. RM12WBP-5P(71)													12					Free Hanging (In-Line)	Male Pins Plug	Keyed	Bayonet Lock
Hirose Electric USA, Inc. RM12WBP-2S(71)													12					Free Hanging (In-Line)	Female Sockets Plug	Keyed	Bayonet Lock	2
Hirose Electric USA, Inc. RM12WBP-CP(6)(71)	Gasket Washer	1 Gasket 1 Washer 2 pc Clamp	0.63 in	16 mm	RM-W Series Plug			Cable Clamp Internal	Brass Zinc Alloy	IP67 - Dust Tight Waterproof	Silver	Nickel	12	M13x0.75	180 °	0.295 in	7.5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

5 Position Circular Connector Plug, Male Pins

Technical documentation and resources
