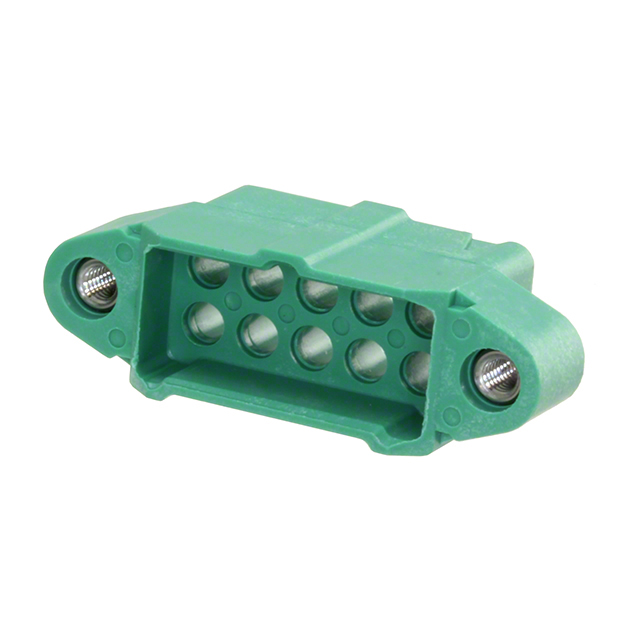

M300-3241096M1
ActiveHarwin Inc.
CONNECTOR HOUSING, PLUG, 10POS, 3MM ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
M300-3241096M1
ActiveHarwin Inc.
CONNECTOR HOUSING, PLUG, 10POS, 3MM ROHS COMPLIANT: YES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | M300-3241096M1 |
|---|---|
| Color | Green |
| Connector Type | Plug |
| Contact Termination | Crimp |
| Contact Type | Male Pin, Power |
| Features | Potting Wall |
| Insulation Material | Polyamide (PA46), Nylon 4/6, Glass Filled |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 10 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 347 °F |
| Operating Temperature [Min] | -65 ░C |
| Pitch [x] | 3 mm |
| Pitch [x] | 0.118 in |
| Row Spacing [x] | 0.118 in |
| Row Spacing [x] | 3 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
M300-324 Series
10 Rectangular Connectors - Housings Plug Green 0.118" (3.00mm)
