M300-3240696M1

Active

Harwin Inc.

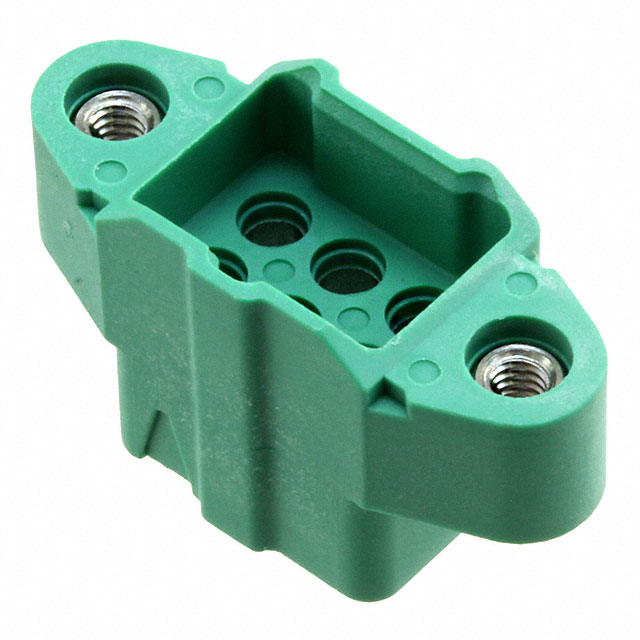

3+3 POS. MALE DIL CABLE HOUSING, JACKSCREWS ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Harwin Inc.

3+3 POS. MALE DIL CABLE HOUSING, JACKSCREWS ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	M300-3240696M1

Color	Green
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Male Pin
Features	Potting Wall
Insulation Material	Polyamide (PA46), Nylon 4/6, Glass Filled
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	6
Number of Rows	2
Operating Temperature [Max]	347 °F
Operating Temperature [Min]	-65 ░C
Pitch [x]	3 mm
Pitch [x]	0.118 in
Row Spacing [x]	0.118 in
Row Spacing [x]	3 mm

Part	Note	Pitch [x]	Pitch [x]	Number of Rows	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Features	Color	Contact Termination	Row Spacing [x]	Row Spacing [x]	Insulation Material	Number of Positions	Mounting Type	Connector Type
Harwin Inc. M300-3240696M1	Contacts Not Included	3 mm	0.118 in	2	Male Pin	-65 ░C	347 °F	Potting Wall	Green	Crimp	0.118 in	3 mm	Glass Filled Nylon 4/6 Polyamide (PA46)	6	Free Hanging (In-Line)	Plug
Harwin Inc. M300-3241096M1	Contacts Not Included	3 mm	0.118 in	2	Male Pin Power	-65 ░C	347 °F	Potting Wall	Green	Crimp	0.118 in	3 mm	Glass Filled Nylon 4/6 Polyamide (PA46)	10	Free Hanging (In-Line)	Plug

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 Rectangular Connectors - Housings Plug Green 0.118" (3.00mm)
