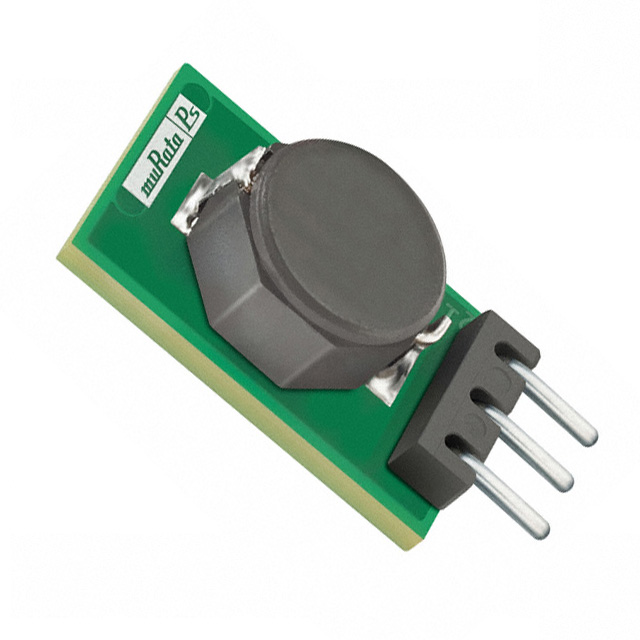

OKI-78SR-3.3/1.5-W36-C - OKI-78SR

OKI-78SR-3.3/1.5-W36-C

Active
Murata Power Solutions Inc.

DC/DC CONVERTER, ITE, 1 OUTPUT, 4.95 W, 3.3 V, 1.5 A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetDatasheet+3
OKI-78SR-3.3/1.5-W36-C - OKI-78SR

OKI-78SR-3.3/1.5-W36-C

Active
Murata Power Solutions Inc.

DC/DC CONVERTER, ITE, 1 OUTPUT, 4.95 W, 3.3 V, 1.5 A

Deep-Dive with AI

DocumentsDatasheetDatasheet+3

Technical Specifications

Parameters and characteristics for this part

SpecificationOKI-78SR-3.3/1.5-W36-C
ApplicationsITE (Commercial)
Current - Output (Max) [Max]1.5 A
Efficiency85.5 %
FeaturesSCP
Mounting TypeThrough Hole
Number of Outputs1
Operating Temperature [Max]85 °C
Operating Temperature [Min]-40 °C
Package / Case3-SIP Module
Power (Watts)5 W
Size / Dimension [x]0.41 "
Size / Dimension [x]10.4 mm
Size / Dimension [y]7.6 mm
Size / Dimension [y]0.3 "
Size / Dimension [z]16.5 mm
Size / Dimension [z]0.65 in
TypeLinear Regulator Replacement
Voltage - Input (Max) [Max]36 V
Voltage - Input (Min) [Min]7 V
Voltage - Output 13.3 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTray 1$ 4.97
5$ 4.92
10$ 4.89
25$ 4.82
50$ 4.67
100$ 4.37
250$ 3.91
NewarkEach 1$ 5.49
5$ 5.44
10$ 5.41
25$ 5.34
50$ 5.18
100$ 4.87
SagerN/A 1$ 4.31
10$ 4.27
25$ 4.18
50$ 4.17
100$ 4.13
250$ 4.12

Description

General part information

OKI-78SR Series

Non-Isolated DC/DC Converters 4.95W 12VIN 3.3VOUT 1.5A DC/DC
