0190360003

Active

Molex

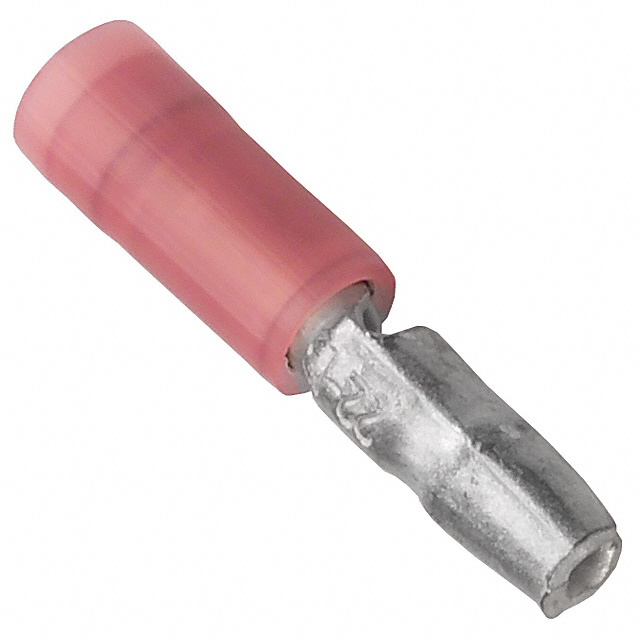

CONN TERM PIN 18-22AWG CRIMP

Search across all available documentation for this part.

Active

Molex

CONN TERM PIN 18-22AWG CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	0190360003

Color	Red
Contact Finish	Tin
Contact Material	Copper
Diameter - Barrel [diameter]	3.96 mm
Diameter - Barrel [diameter]	0.156 in
Insulation	Non-Mating End Insulated
Insulation Diameter [diameter]	3.56 mm
Insulation Diameter [diameter]	0.14 in
Length - Barrel	0.44 in
Length - Barrel	11.18 mm
Length - Overall	23.62 mm
Length - Overall [x]	0.93 in
Material - Insulation	Nylon, Polyamide (PA)
Terminal Type	Pin (Plug), Male
Termination	Crimp
Wire Gauge [Max]	22 AWG
Wire Gauge [Min]	17.5 AWG

Part	Contact Material	Wire Gauge [Max]	Wire Gauge [Min]	Termination	Material - Insulation	Insulation Diameter [diameter]	Insulation Diameter [diameter]	Length - Barrel [x]	Length - Barrel [x]	Contact Finish	Diameter - Barrel [diameter]	Diameter - Barrel [diameter]	Color	Terminal Type	Insulation	Length - Overall [x]	Length - Overall [x]	Length - Overall	Length - Barrel	Length - Barrel
Molex 0190360018	Copper	22 AWG	17.5 AWG	Crimp	Nylon Polyamide (PA)	3.56 mm	0.14 in	0.426 "	10.82 mm	Tin	3.96 mm	0.156 in	Red	Male Pin (Plug)	Non-Mating End Insulated	22.89 mm	0.901 in
Molex 0190360001	Copper	22 AWG	17.5 AWG	Crimp	Nylon Polyamide (PA)	3.56 mm	0.14 in	0.49 in	12.45 mm	Tin			Red	Male Pin (Plug)	Non-Mating End Insulated	24.89 mm	0.98 in
Molex 0190360006	Copper			Crimp	Nylon Polyamide (PA)			0.49 in	12.45 mm	Tin			Blue	Male Pin (Plug)	Non-Mating End Insulated	24.89 mm	0.98 in
Molex 0190360003	Copper	22 AWG	17.5 AWG	Crimp	Nylon Polyamide (PA)	3.56 mm	0.14 in			Tin	3.96 mm	0.156 in	Red	Male Pin (Plug)	Non-Mating End Insulated		0.93 in	23.62 mm	0.44 in	11.18 mm
Molex 0190360009	Copper			Crimp	Nylon Polyamide (PA)					Tin	3.96 mm	0.156 in	Blue	Male Pin (Plug)	Non-Mating End Insulated		0.93 in	23.62 mm	0.44 in	11.18 mm
Molex 0190360005	Copper	22 AWG	17.5 AWG	Crimp	Nylon Polyamide (PA)	3.56 mm	0.14 in			Tin	3.96 mm	0.156 in	Red	Male Pin (Plug)	Non-Mating End Insulated		0.93 in	23.62 mm	0.44 in	11.18 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Terminal Connector Male, Pin (Plug) 18-22 AWG Crimp Tin
