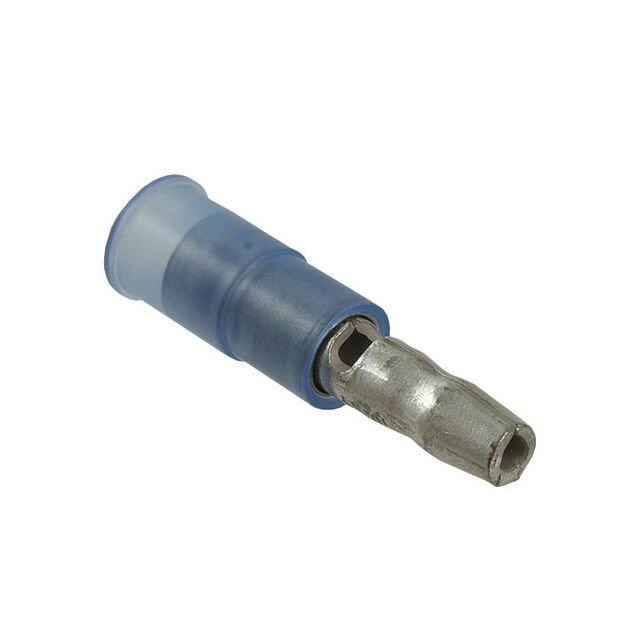

0190360006

Active

Molex

CONN TERM PIN 14-16AWG CRIMP

Search across all available documentation for this part.

Active

Molex

CONN TERM PIN 14-16AWG CRIMP

Technical Specifications

Parameters and characteristics for this part

Part	Contact Material	Wire Gauge [Max]	Wire Gauge [Min]	Termination	Material - Insulation	Insulation Diameter [diameter]	Insulation Diameter [diameter]	Length - Barrel [x]	Length - Barrel [x]	Contact Finish	Diameter - Barrel [diameter]	Diameter - Barrel [diameter]	Color	Terminal Type	Insulation	Length - Overall [x]	Length - Overall [x]	Length - Overall	Length - Barrel	Length - Barrel
Molex 0190360018	Copper	22 AWG	17.5 AWG	Crimp	Nylon Polyamide (PA)	3.56 mm	0.14 in	0.426 "	10.82 mm	Tin	3.96 mm	0.156 in	Red	Male Pin (Plug)	Non-Mating End Insulated	22.89 mm	0.901 in
Molex 0190360001	Copper	22 AWG	17.5 AWG	Crimp	Nylon Polyamide (PA)	3.56 mm	0.14 in	0.49 in	12.45 mm	Tin			Red	Male Pin (Plug)	Non-Mating End Insulated	24.89 mm	0.98 in
Molex 0190360006	Copper			Crimp	Nylon Polyamide (PA)			0.49 in	12.45 mm	Tin			Blue	Male Pin (Plug)	Non-Mating End Insulated	24.89 mm	0.98 in
Molex 0190360003	Copper	22 AWG	17.5 AWG	Crimp	Nylon Polyamide (PA)	3.56 mm	0.14 in			Tin	3.96 mm	0.156 in	Red	Male Pin (Plug)	Non-Mating End Insulated		0.93 in	23.62 mm	0.44 in	11.18 mm
Molex 0190360009	Copper			Crimp	Nylon Polyamide (PA)					Tin	3.96 mm	0.156 in	Blue	Male Pin (Plug)	Non-Mating End Insulated		0.93 in	23.62 mm	0.44 in	11.18 mm
Molex 0190360005	Copper	22 AWG	17.5 AWG	Crimp	Nylon Polyamide (PA)	3.56 mm	0.14 in			Tin	3.96 mm	0.156 in	Red	Male Pin (Plug)	Non-Mating End Insulated		0.93 in	23.62 mm	0.44 in	11.18 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Terminal Connector Male, Pin (Plug) 14-16 AWG Crimp Tin

Technical documentation and resources

No documents available
