800-10-031-10-001101
ActivePRECI-DIP SA

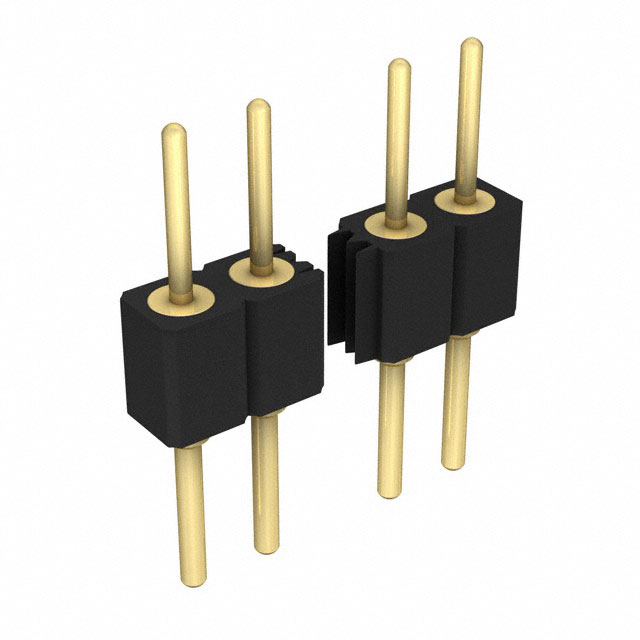

CONN HEADER VERT 31POS 2.54MM
Deep-Dive with AI
Search across all available documentation for this part.
800-10-031-10-001101
ActivePRECI-DIP SA
CONN HEADER VERT 31POS 2.54MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 800-10-031-10-001101 |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Gold |
| Contact Finish Thickness - Mating | 10 çin |
| Contact Finish Thickness - Mating | 0.25 çm |
| Contact Finish Thickness - Post | 10 çin |
| Contact Finish Thickness - Post | 0.25 çm |
| Contact Length - Mating | 0.191 in |
| Contact Length - Mating | 4.85 mm |
| Contact Length - Post | 0.121 in |
| Contact Length - Post | 3.08 mm |
| Contact Material | Brass |
| Contact Shape | Circular |
| Contact Type | Male Pin |
| Current Rating (Amps) | 3 A |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Insulation Height | 2.95 mm |
| Insulation Height | 0.116 in |
| Insulation Material | Polyester, Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 31 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Overall Contact Length | 11.12 mm |
| Overall Contact Length | 0.438 in |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Shrouding | Unshrouded |
| Termination | Solder |
| Voltage Rating | 150 VDC |
800-10 Series
...
| Part | Shrouding | Contact Shape | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Finish - Mating | Contact Type | Insulation Color | Contact Length - Post | Contact Length - Post [x] | Termination | Contact Finish - Post | Number of Positions Loaded | Mounting Type | Contact Length - Mating | Contact Length - Mating | Connector Type | Number of Rows | Voltage Rating | Operating Temperature [Min] | Operating Temperature [Max] | Fastening Type | Material Flammability Rating | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Insulation Material | Contact Material | Insulation Height | Insulation Height | Current Rating (Amps) | Number of Positions | Pitch - Mating | Pitch - Mating | Features | Contact Length - Mating | Contact Length - Post | Overall Contact Length | Overall Contact Length | Contact Length - Post [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
PRECI-DIP SA | Unshrouded | Circular | 10 çin | 0.25 çm | Gold | Male Pin | Black | 3.2 mm | 0.126 in | Solder | Gold | All | Through Hole Right Angle | 0.195 " | 4.95 mm | Header | 1 | 150 VDC | -55 °C | 125 °C | Push-Pull | UL94 V-0 | 10 çin | 0.25 çm | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Brass | 0.1 in | 2.54 mm | 3 A | 36 | 0.1 in | 2.54 mm | ||||||
PRECI-DIP SA | Unshrouded | Circular | 10 çin | 0.25 çm | Gold | Male Pin | Black | Solder | Gold | All | Surface Mount | 0.141 in | 3.6 mm | Header | 1 | 150 VDC | -55 °C | 125 °C | Push-Pull | UL94 V-0 | 10 çin | 0.25 çm | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Brass | 3 A | 4 | 0.1 in | 2.54 mm | ||||||||||
PRECI-DIP SA | Unshrouded | Circular | 10 çin | 0.25 çm | Gold | Male Pin | Black | 3.2 mm | 0.126 in | Solder | Gold | All | Through Hole Right Angle | 0.195 " | 4.95 mm | Header | 1 | 150 VDC | -55 °C | 125 °C | Push-Pull | UL94 V-0 | 10 çin | 0.25 çm | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Brass | 0.1 in | 2.54 mm | 3 A | 2 | 0.1 in | 2.54 mm | ||||||
PRECI-DIP SA | Unshrouded | Circular | 10 çin | 0.25 çm | Gold | Male Pin | Black | Solder | Gold | All | Surface Mount | 0.191 in | Header | 1 | 150 VDC | -55 °C | 125 °C | Push-Pull | UL94 V-0 | 10 çin | 0.25 çm | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Brass | 0.116 in | 2.95 mm | 3 A | 10 | 0.1 in | 2.54 mm | Pick and Place | 4.85 mm | |||||||
PRECI-DIP SA | Unshrouded | Circular | 10 çin | 0.25 çm | Gold | Male Pin | Black | Solder | Gold | All | Surface Mount Right Angle | 0.191 in | Header | 1 | 150 VDC | -55 °C | 125 °C | Push-Pull | UL94 V-0 | 10 çin | 0.25 çm | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Brass | 0.1 in | 2.54 mm | 3 A | 44 | 0.1 in | 2.54 mm | 4.85 mm | ||||||||
PRECI-DIP SA | Unshrouded | Circular | 10 çin | 0.25 çm | Gold | Male Pin | Black | Solder | Gold | All | Surface Mount | 0.141 in | 3.6 mm | Header | 1 | 150 VDC | -55 °C | 125 °C | Push-Pull | UL94 V-0 | 10 çin | 0.25 çm | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Brass | 3 A | 63 | 0.1 in | 2.54 mm | ||||||||||
PRECI-DIP SA | Unshrouded | Circular | 10 çin | 0.25 çm | Gold | Male Pin | Black | 3.08 mm | Solder | Gold | All | Through Hole | 0.191 in | Header | 1 | 150 VDC | -55 °C | 125 °C | Push-Pull | UL94 V-0 | 10 çin | 0.25 çm | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Brass | 0.116 in | 2.95 mm | 3 A | 31 | 0.1 in | 2.54 mm | 4.85 mm | 0.121 in | 11.12 mm | 0.438 in | ||||
PRECI-DIP SA | Unshrouded | Circular | 10 çin | 0.25 çm | Gold | Male Pin | Black | 0.15 in | Press-Fit Solder | Gold | All | Through Hole | 0.191 in | Header | 1 | 150 VDC | -55 °C | 125 °C | Push-Pull | UL94 V-0 | 10 çin | 0.25 çm | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Bronze | 0.116 in | 2.95 mm | 3 A | 2 | 0.1 in | 2.54 mm | 4.85 mm | 11.85 mm | 0.467 in | 3.81 mm | ||||
PRECI-DIP SA | Unshrouded | Circular | 10 çin | 0.25 çm | Gold | Male Pin | Black | 3.2 mm | 0.126 in | Solder | Gold | All | Through Hole Right Angle | 0.195 " | 4.95 mm | Header | 1 | 150 VDC | -55 °C | 125 °C | Push-Pull | UL94 V-0 | 10 çin | 0.25 çm | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Brass | 0.1 in | 2.54 mm | 3 A | 41 | 0.1 in | 2.54 mm | ||||||
PRECI-DIP SA | Unshrouded | Circular | 10 çin | 0.25 çm | Gold | Male Pin | Black | Solder | Gold | All | Surface Mount | 0.191 in | Header | 1 | 150 VDC | -55 °C | 125 °C | Push-Pull | UL94 V-0 | 10 çin | 0.25 çm | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Brass | 0.116 in | 2.95 mm | 3 A | 57 | 0.1 in | 2.54 mm | 4.85 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 250 | $ 4.66 | |
Description
General part information
800-10 Series
Connector Header Through Hole 31 position 0.100" (2.54mm)
