800-10-057-30-001101

Active

PRECI-DIP SA

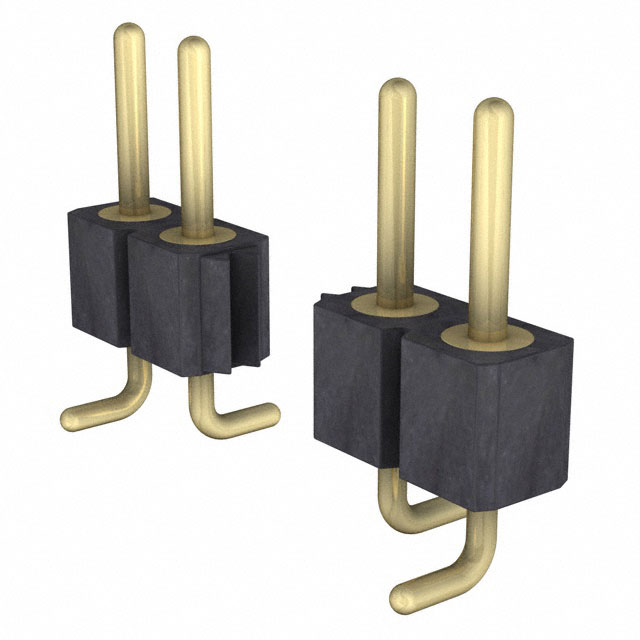

CONN HEADER SMD 57POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

800-10-057-30-001101

Active

PRECI-DIP SA

CONN HEADER SMD 57POS 2.54MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	800-10-057-30-001101

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Finish Thickness - Post	10 çin
Contact Finish Thickness - Post	0.25 çm
Contact Length - Mating	0.191 in
Contact Length - Mating	4.85 mm
Contact Material	Brass
Contact Shape	Circular
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	2.95 mm
Insulation Height	0.116 in
Insulation Material	Polyester, Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	57
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Termination	Solder
Voltage Rating	150 VDC

800-10 Series

...

Part	Shrouding	Contact Shape	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish - Mating	Contact Type	Insulation Color	Contact Length - Post	Contact Length - Post [x]	Termination	Contact Finish - Post	Number of Positions Loaded	Mounting Type	Contact Length - Mating	Contact Length - Mating	Connector Type	Number of Rows	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Material Flammability Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Material	Contact Material	Insulation Height	Insulation Height	Current Rating (Amps)	Number of Positions	Pitch - Mating	Pitch - Mating	Features	Contact Length - Mating	Contact Length - Post	Overall Contact Length	Overall Contact Length	Contact Length - Post [x]
PRECI-DIP SA 800-10-036-20-001101	Unshrouded	Circular	10 çin	0.25 çm	Gold	Male Pin	Black	3.2 mm	0.126 in	Solder	Gold	All	Through Hole Right Angle	0.195 "	4.95 mm	Header	1	150 VDC	-55 °C	125 °C	Push-Pull	UL94 V-0	10 çin	0.25 çm	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Brass	0.1 in	2.54 mm	3 A	36	0.1 in	2.54 mm
PRECI-DIP SA 800-10-004-30-480101	Unshrouded	Circular	10 çin	0.25 çm	Gold	Male Pin	Black			Solder	Gold	All	Surface Mount	0.141 in	3.6 mm	Header	1	150 VDC	-55 °C	125 °C	Push-Pull	UL94 V-0	10 çin	0.25 çm	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Brass			3 A	4	0.1 in	2.54 mm
PRECI-DIP SA 800-10-002-20-004101	Unshrouded	Circular	10 çin	0.25 çm	Gold	Male Pin	Black	3.2 mm	0.126 in	Solder	Gold	All	Through Hole Right Angle	0.195 "	4.95 mm	Header	1	150 VDC	-55 °C	125 °C	Push-Pull	UL94 V-0	10 çin	0.25 çm	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Brass	0.1 in	2.54 mm	3 A	2	0.1 in	2.54 mm
PRECI-DIP SA 800-10-010-30-001191	Unshrouded	Circular	10 çin	0.25 çm	Gold	Male Pin	Black			Solder	Gold	All	Surface Mount		0.191 in	Header	1	150 VDC	-55 °C	125 °C	Push-Pull	UL94 V-0	10 çin	0.25 çm	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Brass	0.116 in	2.95 mm	3 A	10	0.1 in	2.54 mm	Pick and Place	4.85 mm
PRECI-DIP SA 800-10-044-40-001101	Unshrouded	Circular	10 çin	0.25 çm	Gold	Male Pin	Black			Solder	Gold	All	Surface Mount Right Angle		0.191 in	Header	1	150 VDC	-55 °C	125 °C	Push-Pull	UL94 V-0	10 çin	0.25 çm	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Brass	0.1 in	2.54 mm	3 A	44	0.1 in	2.54 mm		4.85 mm
PRECI-DIP SA 800-10-063-30-480101	Unshrouded	Circular	10 çin	0.25 çm	Gold	Male Pin	Black			Solder	Gold	All	Surface Mount	0.141 in	3.6 mm	Header	1	150 VDC	-55 °C	125 °C	Push-Pull	UL94 V-0	10 çin	0.25 çm	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Brass			3 A	63	0.1 in	2.54 mm
PRECI-DIP SA 800-10-031-10-001101	Unshrouded	Circular	10 çin	0.25 çm	Gold	Male Pin	Black	3.08 mm		Solder	Gold	All	Through Hole		0.191 in	Header	1	150 VDC	-55 °C	125 °C	Push-Pull	UL94 V-0	10 çin	0.25 çm	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Brass	0.116 in	2.95 mm	3 A	31	0.1 in	2.54 mm		4.85 mm	0.121 in	11.12 mm	0.438 in
PRECI-DIP SA 800-10-002-66-001101	Unshrouded	Circular	10 çin	0.25 çm	Gold	Male Pin	Black		0.15 in	Press-Fit Solder	Gold	All	Through Hole		0.191 in	Header	1	150 VDC	-55 °C	125 °C	Push-Pull	UL94 V-0	10 çin	0.25 çm	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Bronze	0.116 in	2.95 mm	3 A	2	0.1 in	2.54 mm		4.85 mm		11.85 mm	0.467 in	3.81 mm
PRECI-DIP SA 800-10-041-20-001101	Unshrouded	Circular	10 çin	0.25 çm	Gold	Male Pin	Black	3.2 mm	0.126 in	Solder	Gold	All	Through Hole Right Angle	0.195 "	4.95 mm	Header	1	150 VDC	-55 °C	125 °C	Push-Pull	UL94 V-0	10 çin	0.25 çm	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Brass	0.1 in	2.54 mm	3 A	41	0.1 in	2.54 mm
PRECI-DIP SA 800-10-057-30-001101	Unshrouded	Circular	10 çin	0.25 çm	Gold	Male Pin	Black			Solder	Gold	All	Surface Mount		0.191 in	Header	1	150 VDC	-55 °C	125 °C	Push-Pull	UL94 V-0	10 çin	0.25 çm	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Brass	0.116 in	2.95 mm	3 A	57	0.1 in	2.54 mm		4.85 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	160	$ 8.77

Description

General part information

800-10 Series

Connector Header Surface Mount 57 position 0.100" (2.54mm)

Documents

Technical documentation and resources

No documents available
