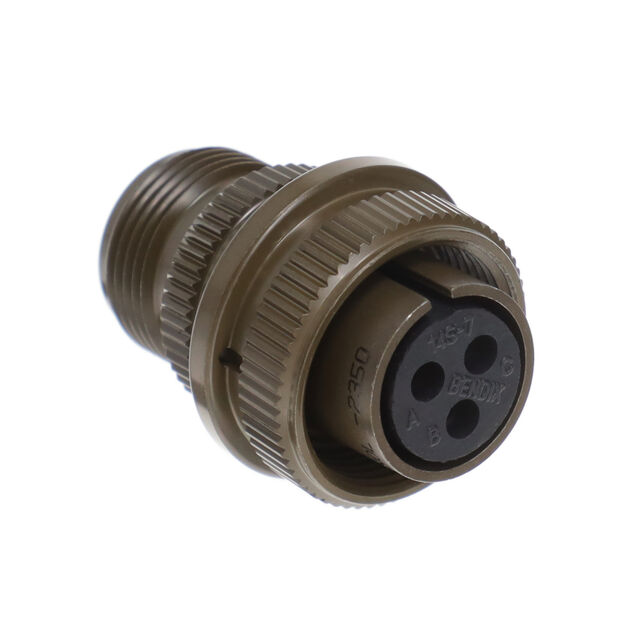

MS3106A14S-1S

Active

Amphenol Industrial Operations

CONN PLUG FMALE 3P SILV SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MS3106A14S-1S

Active

Amphenol Industrial Operations

CONN PLUG FMALE 3P SILV SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MS3106A14S-1S

Applications	Military, Marine
Color	Olive Drab
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Features	Coupling Nut, Backshell
Insert Material	Neoprene
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-5015
Shell Finish	Olive Drab Chromate over Cadmium
Shell Material	Aluminum Alloy
Shell Size - Insert	14S-1
Shielding	Unshielded

MS3106A14 Series

Part	Shell Size - Insert	Connector Type	Primary Material	Shielding	Shell Material	Qualification	Color	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Contact Finish - Mating	Shell Finish	Mounting Type	Features	Orientation	Insert Material	Number of Positions
Amphenol Industrial Operations MS3106A14S-2SX-RES
Amphenol Industrial Operations MS3106A14S-5P-RES
Amphenol Industrial Operations MS3106A-14S-2PX
Amphenol Industrial Operations MS3106A14S-9PW
Amphenol Industrial Operations MS3106A14S-1S	14S-1	Female Sockets Plug	Metal	Unshielded	Aluminum Alloy	MIL-DTL-5015	Olive Drab	Copper Alloy	-55 °C	125 °C	Marine Military	Silver	Olive Drab Chromate over Cadmium	Free Hanging (In-Line)	Backshell Coupling Nut	N	Neoprene
Amphenol Industrial Operations MS3106A14S-5S	14S-5	Female Sockets Plug	Metal	Unshielded	Aluminum Alloy	MIL-DTL-5015	Olive Drab	Copper Alloy	-55 °C	125 °C	Marine Military	Silver	Olive Drab Chromate over Cadmium	Free Hanging (In-Line)	Backshell Coupling Nut	N	Neoprene
Amphenol Industrial Operations MS3106A14S-12P
Amphenol Industrial Operations MS3106A14S-12S
Amphenol Industrial Operations MS3106A14S-7P	14S-7	Male Pins Plug	Metal	Unshielded	Aluminum Alloy	MIL-DTL-5015	Olive Drab	Copper Alloy	-55 °C	125 °C	Marine Military	Silver	Olive Drab Chromate over Cadmium	Free Hanging (In-Line)	Backshell Coupling Nut	N	Neoprene
Amphenol Industrial Operations MS3106A14S-6P	14S-6	Male Pins Plug	Metal	Unshielded	Aluminum Alloy	MIL-DTL-5015	Olive Drab	Copper Alloy	-55 °C	125 °C	Marine Military	Silver	Olive Drab Chromate over Cadmium	Free Hanging (In-Line)	Backshell Coupling Nut	N	Neoprene	6

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 24.59
		10	$ 21.53
		25	$ 20.60
		50	$ 19.94
		100	$ 19.27
		250	$ 18.21
		500	$ 17.68

Description

General part information

MS3106A14 Series

3 Position Circular Connector Plug, Female Sockets Solder Cup
