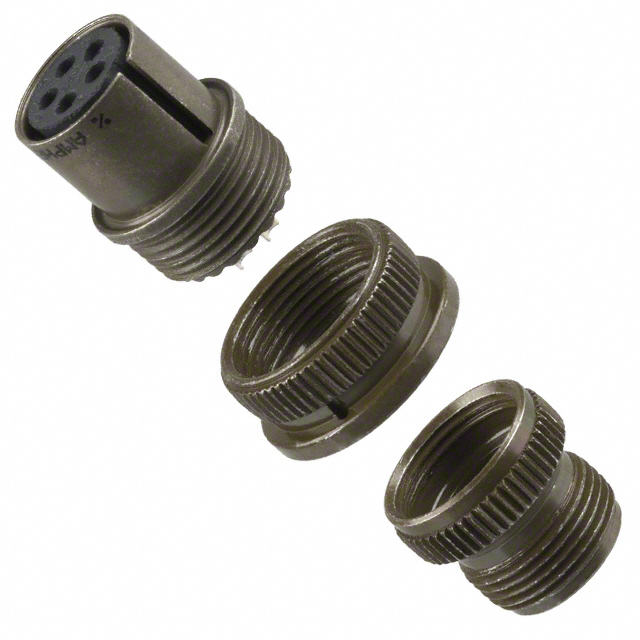

MS3106A14S-5S
ActiveAmphenol Industrial Operations
CONN PLUG FMALE 5P SOLDER CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MS3106A14S-5S
ActiveAmphenol Industrial Operations
CONN PLUG FMALE 5P SOLDER CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MS3106A14S-5S |
|---|---|
| Applications | Military, Marine |
| Color | Olive Drab |
| Connector Type | Female Sockets, Plug |
| Contact Finish - Mating | Silver |
| Contact Material | Copper Alloy |
| Features | Coupling Nut, Backshell |
| Insert Material | Neoprene |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Orientation | N |
| Primary Material | Metal |
| Qualification | MIL-DTL-5015 |
| Shell Finish | Olive Drab Chromate over Cadmium |
| Shell Material | Aluminum Alloy |
| Shell Size - Insert | 14S-5 |
| Shielding | Unshielded |
MS3106A14 Series
| Part | Shell Size - Insert | Connector Type | Primary Material | Shielding | Shell Material | Qualification | Color | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Applications | Contact Finish - Mating | Shell Finish | Mounting Type | Features | Orientation | Insert Material | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Industrial Operations | ||||||||||||||||||
Amphenol Industrial Operations | ||||||||||||||||||
Amphenol Industrial Operations | ||||||||||||||||||
Amphenol Industrial Operations | ||||||||||||||||||
Amphenol Industrial Operations | 14S-1 | Female Sockets Plug | Metal | Unshielded | Aluminum Alloy | MIL-DTL-5015 | Olive Drab | Copper Alloy | -55 °C | 125 °C | Marine Military | Silver | Olive Drab Chromate over Cadmium | Free Hanging (In-Line) | Backshell Coupling Nut | N | Neoprene | |
Amphenol Industrial Operations | 14S-5 | Female Sockets Plug | Metal | Unshielded | Aluminum Alloy | MIL-DTL-5015 | Olive Drab | Copper Alloy | -55 °C | 125 °C | Marine Military | Silver | Olive Drab Chromate over Cadmium | Free Hanging (In-Line) | Backshell Coupling Nut | N | Neoprene | |
Amphenol Industrial Operations | ||||||||||||||||||
Amphenol Industrial Operations | ||||||||||||||||||
Amphenol Industrial Operations | 14S-7 | Male Pins Plug | Metal | Unshielded | Aluminum Alloy | MIL-DTL-5015 | Olive Drab | Copper Alloy | -55 °C | 125 °C | Marine Military | Silver | Olive Drab Chromate over Cadmium | Free Hanging (In-Line) | Backshell Coupling Nut | N | Neoprene | |
Amphenol Industrial Operations | 14S-6 | Male Pins Plug | Metal | Unshielded | Aluminum Alloy | MIL-DTL-5015 | Olive Drab | Copper Alloy | -55 °C | 125 °C | Marine Military | Silver | Olive Drab Chromate over Cadmium | Free Hanging (In-Line) | Backshell Coupling Nut | N | Neoprene | 6 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 19.45 | |
| 10 | $ 16.86 | |||
| 25 | $ 15.98 | |||
| 50 | $ 15.74 | |||
| 100 | $ 13.89 | |||
| 250 | $ 12.97 | |||
| 500 | $ 12.69 | |||
Description
General part information
MS3106A14 Series
5 Position Circular Connector Plug, Female Sockets Solder Cup
