1003-002-01100

Active

CnC Tech, LLC

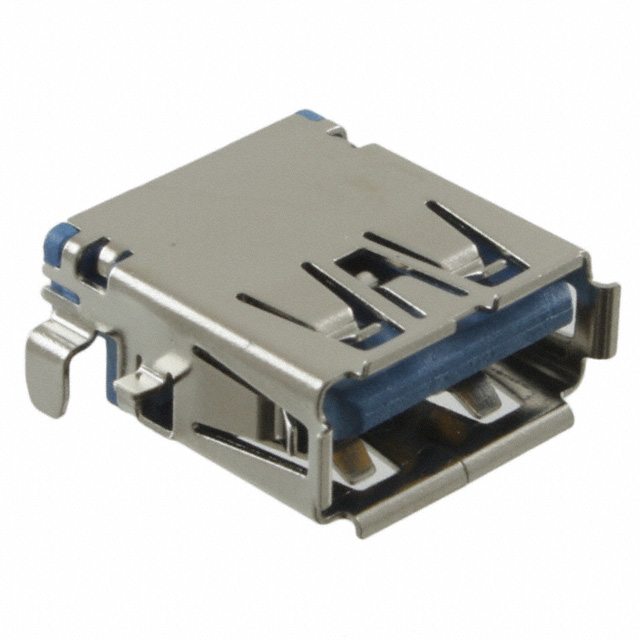

CONN RCPT USB3.0 TYPEA 9P SMD RA

Search across all available documentation for this part.

Active

CnC Tech, LLC

CONN RCPT USB3.0 TYPEA 9P SMD RA

Technical Specifications

Parameters and characteristics for this part

Specification	1003-002-01100

Connector Type	USB-A (USB TYPE-A)
Contact Finish	Gold
Current Rating (Amps)	1.5 A
Features	Board Lock, Solder Retention
Gender	Receptacle
Material Flammability Rating	UL94 V-0
Mating Cycles	1500
Mounting Feature	Horizontal
Mounting Type	Surface Mount, Right Angle
Number of Contacts	9
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Shell/Shielding Material	Brass
Termination	Solder

Part	Shielding	Number of Contacts	Current Rating (Amps)	Termination	Mounting Feature	Gender	Material Flammability Rating	Mounting Type	Contact Finish	Connector Type	Shell/Shielding Material	Number of Ports	Insulation Color	Operating Temperature [Min]	Operating Temperature [Max]	Features	Mating Cycles
CnC Tech, LLC 1003-002-01100-TR	Unshielded	9	0.25 A 1.8 A	Solder	Horizontal	Receptacle	UL94 V-0	Surface Mount Right Angle	Gold	USB-A (USB TYPE-A)	Brass	1	Blue	-40 °C	105 ░C
CnC Tech, LLC 1003-002-BL-KIT		9		Solder		Plug	UL94 V-0	Free Hanging (In-Line)	Gold	USB-B		1	Black
CnC Tech, LLC 1003-002-01100		9	1.5 A	Solder	Horizontal	Receptacle	UL94 V-0	Surface Mount Right Angle	Gold	USB-A (USB TYPE-A)	Brass	1		-25 °C	85 °C	Board Lock Solder Retention	1500

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

USB-A (USB TYPE-A) USB 3.2 Gen 1 (USB 3.1 Gen 1, Superspeed (USB 3.0)) Receptacle Connector 9 Position Surface Mount, Right Angle
