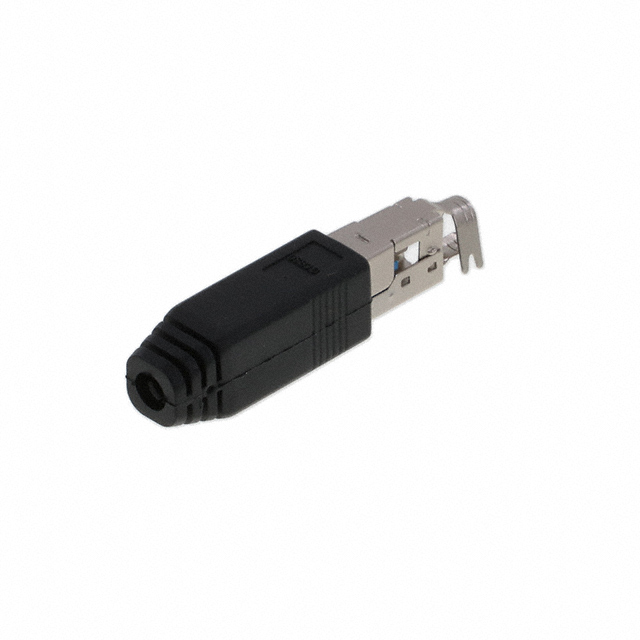

1003-002-BL-KIT

Active

CnC Tech, LLC

CONN & HOOD KIT USB3.0 TYPE B

Search across all available documentation for this part.

Active

CnC Tech, LLC

CONN & HOOD KIT USB3.0 TYPE B

Technical Specifications

Parameters and characteristics for this part

Specification	1003-002-BL-KIT

Connector Type	USB-B
Contact Finish	Gold
Gender	Plug
Insulation Color	Black
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Contacts	9
Number of Ports	1
Termination	Solder

Part	Shielding	Number of Contacts	Current Rating (Amps)	Termination	Mounting Feature	Gender	Material Flammability Rating	Mounting Type	Contact Finish	Connector Type	Shell/Shielding Material	Number of Ports	Insulation Color	Operating Temperature [Min]	Operating Temperature [Max]	Features	Mating Cycles
CnC Tech, LLC 1003-002-01100-TR	Unshielded	9	0.25 A 1.8 A	Solder	Horizontal	Receptacle	UL94 V-0	Surface Mount Right Angle	Gold	USB-A (USB TYPE-A)	Brass	1	Blue	-40 °C	105 ░C
CnC Tech, LLC 1003-002-BL-KIT		9		Solder		Plug	UL94 V-0	Free Hanging (In-Line)	Gold	USB-B		1	Black
CnC Tech, LLC 1003-002-01100		9	1.5 A	Solder	Horizontal	Receptacle	UL94 V-0	Surface Mount Right Angle	Gold	USB-A (USB TYPE-A)	Brass	1		-25 °C	85 °C	Board Lock Solder Retention	1500

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

USB-B (USB TYPE-B) USB 3.2 Gen 1 (USB 3.1 Gen 1, Superspeed (USB 3.0)) Plug Connector 9 Position Free Hanging (In-Line)
