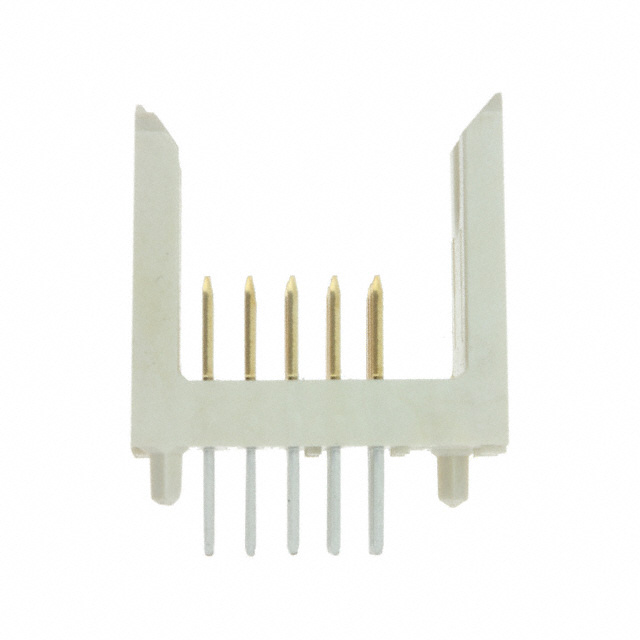

MP2-H030-51S1-S-LR - MP2-H030-51S1-S-LR

MP2-H030-51S1-S-LR

Active
3M (TC)

80000916652 MP2-H030-51S1-S-LR=MP2/HDR/VERT/30P/5R/ST/4.60MM/SHDR/30PDNI/R

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetMetPak™ MP2 Series Spec
MP2-H030-51S1-S-LR - MP2-H030-51S1-S-LR

MP2-H030-51S1-S-LR

Active
3M (TC)

80000916652 MP2-H030-51S1-S-LR=MP2/HDR/VERT/30P/5R/ST/4.60MM/SHDR/30PDNI/R

Deep-Dive with AI

DocumentsDatasheetMetPak™ MP2 Series Spec

Technical Specifications

Parameters and characteristics for this part

SpecificationMP2-H030-51S1-S-LR
ColorBeige
Connector StyleFuturebus+®
Connector TypeHeader, Male Pins
Connector UsageBackplane
Contact FinishGold
Contact Finish Thickness3 Áin
Contact Finish Thickness0.076 Ám
Current Rating (Amps)1.5 A
FeaturesMating Guide, Board Guide
Material Flammability RatingUL94 V-0
Mounting TypeThrough Hole
Number of Positions30
Number of Positions LoadedAll
Number of Rows5
Operating Temperature [Max]125 °C
Operating Temperature [Min]-55 °C
Pitch [x]0.079 in
Pitch [x]2 mm
TerminationSolder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTube 1$ 4.48
10$ 4.05
100$ 3.54
840$ 3.28
NewarkEach 500$ 4.86
1000$ 4.57

Description

General part information

MP2-H030 Series

30 Connector Header, Male Pins Through Hole Beige Futurebus+®
