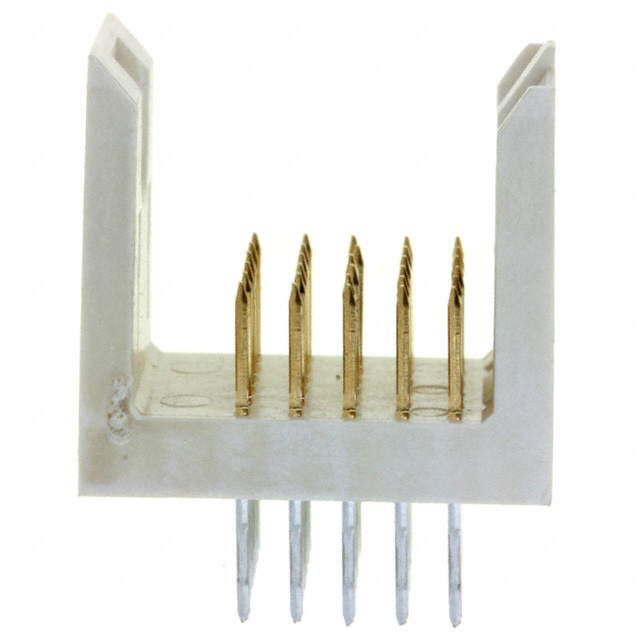

MP2-H030-51P1-S-KR

Active

3M (TC)

CONN HEADER FUTUREBUS+ 30POS PCB

Search across all available documentation for this part.

Active

3M (TC)

CONN HEADER FUTUREBUS+ 30POS PCB

Technical Specifications

Parameters and characteristics for this part

Specification	MP2-H030-51P1-S-KR

Color	Beige
Connector Style	Futurebus+®
Connector Type	Header, Male Pins
Connector Usage	Backplane
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Current Rating (Amps)	1.5 A
Features	Mating Guide, Board Guide
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	30
Number of Positions Loaded	All
Number of Rows	5
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.079 in
Pitch [x]	2 mm
Termination	Press-Fit

Part	Connector Style	Connector Type	Pitch [x]	Pitch [x]	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Features	Number of Positions Loaded	Current Rating (Amps)	Termination	Mounting Type	Material Flammability Rating	Contact Finish	Color	Number of Rows	Connector Usage
3M (TC) MP2-H030-54P1-S-TR30	Futurebus+®	Header Male Pins	0.079 in	2 mm	-55 °C	125 °C	30	3 Áin	0.076 Ám	Board Guide Mating Guide	All	1.5 A	Press-Fit	Through Hole	UL94 V-0	Gold	Beige	5	Backplane
3M (TC) MP2-H030-51P1-S-KR	Futurebus+®	Header Male Pins	0.079 in	2 mm	-55 °C	125 °C	30	30 Áin	0.76 Ám	Board Guide Mating Guide	All	1.5 A	Press-Fit	Through Hole	UL94 V-0	Gold	Beige	5	Backplane
3M (TC) MP2-H030-51S1-S-LR	Futurebus+®	Header Male Pins	0.079 in	2 mm	-55 °C	125 °C	30	3 Áin	0.076 Ám	Board Guide Mating Guide	All	1.5 A	Solder	Through Hole	UL94 V-0	Gold	Beige	5	Backplane

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	840	$ 4.48

General part information

30 Connector Header, Male Pins Through Hole Beige Futurebus+®
