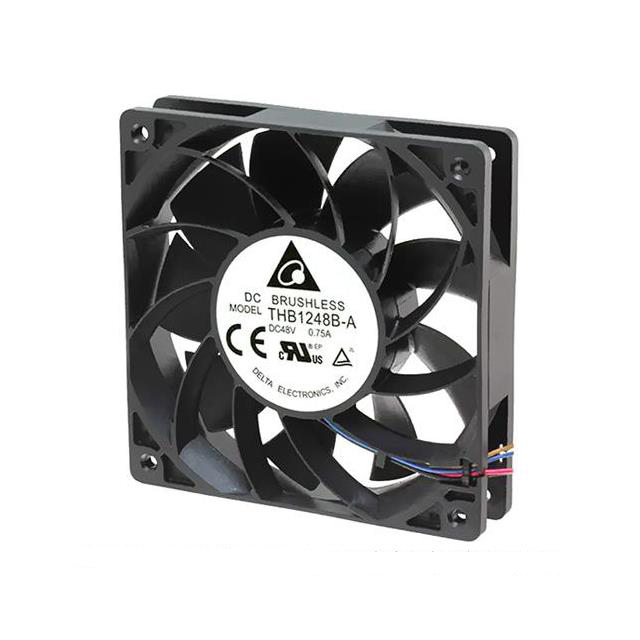

THB1248B-A

Active

Delta Electronics

FAN AXIAL 120X25.4MM 48VDC WIRE

Search across all available documentation for this part.

Active

Delta Electronics

FAN AXIAL 120X25.4MM 48VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	THB1248B-A

Air Flow	186.6 CFM
Air Flow	5.22 m³/min
Approval Agency	cURus, CE, TUV
Bearing Type	Ball
Current Rating (Amps)	400 mA
Fan Type	Tubeaxial
Features	Locked Rotor Protection, PWM Control, Speed Sensor (Tach)
Lifetime @ Temp.	70000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	59 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	19.2 W
RPM	5300 RPM
Size / Dimension [x]	120 mm
Size / Dimension [y]	120 mm
Static Pressure	0.962 in H2O
Static Pressure	239.6 Pa
Termination	4 Wire Leads
Voltage - Rated [custom]	48 VDC
Voltage Range [Max]	75 VDC
Voltage Range [Min]	36 VDC
Weight	198 g
Weight	0.437 lb
Width [y]	25.4 mm

Part	Fan Type	Approval Agency	Termination	Noise	Voltage - Rated [custom]	RPM	Air Flow	Air Flow	Features	Lifetime @ Temp.	Static Pressure	Static Pressure	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Weight	Weight	Voltage Range [Max]	Voltage Range [Min]	Bearing Type	Material - Blade	Size / Dimension [y]	Size / Dimension [x]	Power (Watts)	Current Rating (Amps)	Material - Frame	Width [y]	Ingress Protection
Delta Electronics THB1248CE	Tubeaxial	CE cURus TUV	4 Wire Leads	70 dB(A)	48 VDC	7800 RPM	7.34 m³/min	262 CFM	Locked Rotor Protection PWM Control Speed Sensor (Tach)	70000 Hrs	2.03 in H2O	505.7 Pa	70 °C	70 °C	-10 °C	-10 °C	0.915 lb	415.04 g	60 V	36 VDC	Ball	Plastic	120 mm	120 mm	45.6 W	0.95 A	Aluminum	38 mm
Delta Electronics THB1248B-AXHG	Tubeaxial	CE cURus TUV	4 Wire Leads	59 dB(A)	48 VDC	5300 RPM	5.22 m³/min	186.6 CFM	Locked Rotor Protection PWM Control Speed Sensor (Tach)	70000 Hrs	0.962 in H2O	239.6 Pa	70 °C	70 °C	-10 °C	-10 °C	0.437 lb	198 g	75 VDC	36 VDC	Ball	Plastic	120 mm	120 mm	19.2 W	400 mA	Plastic	25.4 mm	IP54 - Dust Protected Water Resistant
Delta Electronics THB1248B-A	Tubeaxial	CE cURus TUV	4 Wire Leads	59 dB(A)	48 VDC	5300 RPM	5.22 m³/min	186.6 CFM	Locked Rotor Protection PWM Control Speed Sensor (Tach)	70000 Hrs	0.962 in H2O	239.6 Pa	70 °C	70 °C	-10 °C	-10 °C	0.437 lb	198 g	75 VDC	36 VDC	Ball	Plastic	120 mm	120 mm	19.2 W	400 mA	Plastic	25.4 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	108	$ 42.01

General part information

Fan Tubeaxial 48VDC Square - 120mm L x 120mm H Ball 186.6 CFM (5.22m³/min) 4 Wire Leads
