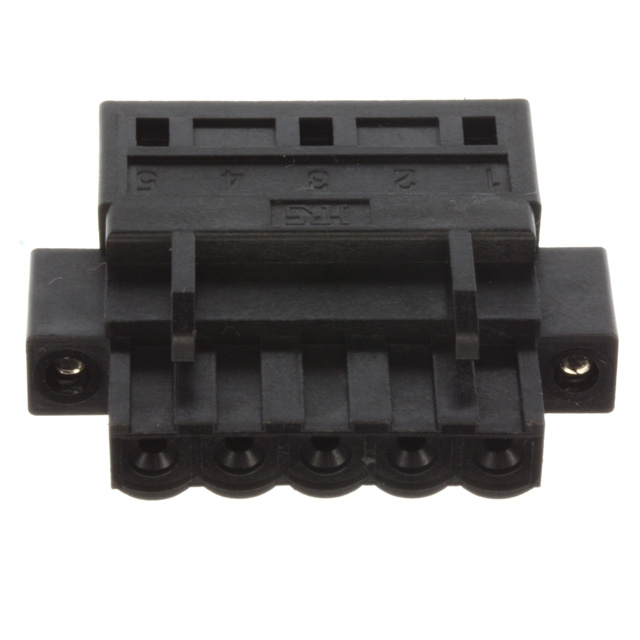

HR31-5.08P-5SC(71)

Obsolete

Hirose Electric USA, Inc.

CONN PLUG HSG 5POS 5.08MM

Search across all available documentation for this part.

Obsolete

Hirose Electric USA, Inc.

CONN PLUG HSG 5POS 5.08MM

Technical Specifications

Parameters and characteristics for this part

Specification	HR31-5.08P-5SC(71)

Color	Black
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Female Socket
Insulation Material	Polybutylene Terephthalate (PBT)
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Rows	1
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.2 in
Pitch [x]	5.08 mm

Part	Wire Gauge [Max]	Wire Gauge [Min]	Contact Termination	Pin or Socket	Contact Finish	Note	Mounting Type	Contact Type	Connector Type	Color	Number of Rows	Pitch [x]	Pitch [x]	Number of Positions Loaded	Contact Material	Insulation Material	Contact Shape	Shrouding	Pitch - Mating	Pitch - Mating	Features	Style	Operating Temperature [Max]	Operating Temperature [Min]	Insulation Height	Insulation Height	Termination	Contact Length - Post	Contact Length - Post	Contact Finish - Mating	Insulation Color	Material Flammability Rating
Hirose Electric USA, Inc. HR31-SC-121(71)	24 AWG	17.5 AWG	Crimp	Socket	Gold
Hirose Electric USA, Inc. HR31-SC-121	24 AWG	17.5 AWG	Crimp	Socket	Gold
Hirose Electric USA, Inc. HR31-SC-111(71)			Crimp	Socket	Gold
Hirose Electric USA, Inc. HR31-5.08P-5SC			Crimp			Contacts Not Included	Free Hanging (In-Line)	Female Socket	Plug	Black	1	0.2 in	5.08 mm
Hirose Electric USA, Inc. HR31-5.08R-5PDL(75)							Through Hole Right Angle	Male Pin	Header		1			All	Brass	Polybutylene Terephthalate (PBT)	Circular	Shrouded - 4 Wall	5.08 mm	0.2 in	Board Lock Mating Flange	Board to Cable/Wire	100 °C	-40 °C	8.61 mm	0.339 "	Solder	0.13 in	3.3 mm	Gold	Green	UL94 V-0
Hirose Electric USA, Inc. HR31-5.08P-5SC(71)			Crimp			Contacts Not Included	Free Hanging (In-Line)	Female Socket	Plug	Black	1	0.2 in	5.08 mm			Polybutylene Terephthalate (PBT)							100 °C	-40 °C
Hirose Electric USA, Inc. HR31-5.08R-5PD(76)							Through Hole	Male Pin	Header		1			All	Brass	Polybutylene Terephthalate (PBT)	Circular	Shrouded - 4 Wall	5.08 mm	0.2 in	Mating Flange	Board to Cable/Wire	100 °C	-40 °C	12 mm	0.472 in	Solder	0.169 in	4.3 mm	Gold	Green	UL94 V-0

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

5 Rectangular Connectors - Housings Plug Black 0.200" (5.08mm)

Technical documentation and resources

No documents available
