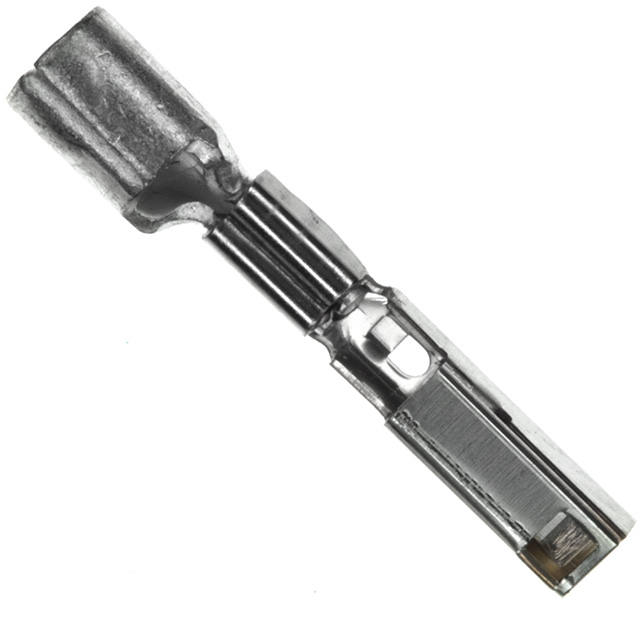

HR31-SC-111(71)

Active

Hirose Electric USA, Inc.

CONN SOCKET 14-16AWG CRIMP GOLD

Search across all available documentation for this part.

Active

Hirose Electric USA, Inc.

CONN SOCKET 14-16AWG CRIMP GOLD

Technical Specifications

Parameters and characteristics for this part

Part	Wire Gauge [Max]	Wire Gauge [Min]	Contact Termination	Pin or Socket	Contact Finish	Note	Mounting Type	Contact Type	Connector Type	Color	Number of Rows	Pitch [x]	Pitch [x]	Number of Positions Loaded	Contact Material	Insulation Material	Contact Shape	Shrouding	Pitch - Mating	Pitch - Mating	Features	Style	Operating Temperature [Max]	Operating Temperature [Min]	Insulation Height	Insulation Height	Termination	Contact Length - Post	Contact Length - Post	Contact Finish - Mating	Insulation Color	Material Flammability Rating
Hirose Electric USA, Inc. HR31-SC-121(71)	24 AWG	17.5 AWG	Crimp	Socket	Gold
Hirose Electric USA, Inc. HR31-SC-121	24 AWG	17.5 AWG	Crimp	Socket	Gold
Hirose Electric USA, Inc. HR31-SC-111(71)			Crimp	Socket	Gold
Hirose Electric USA, Inc. HR31-5.08P-5SC			Crimp			Contacts Not Included	Free Hanging (In-Line)	Female Socket	Plug	Black	1	0.2 in	5.08 mm
Hirose Electric USA, Inc. HR31-5.08R-5PDL(75)							Through Hole Right Angle	Male Pin	Header		1			All	Brass	Polybutylene Terephthalate (PBT)	Circular	Shrouded - 4 Wall	5.08 mm	0.2 in	Board Lock Mating Flange	Board to Cable/Wire	100 °C	-40 °C	8.61 mm	0.339 "	Solder	0.13 in	3.3 mm	Gold	Green	UL94 V-0
Hirose Electric USA, Inc. HR31-5.08P-5SC(71)			Crimp			Contacts Not Included	Free Hanging (In-Line)	Female Socket	Plug	Black	1	0.2 in	5.08 mm			Polybutylene Terephthalate (PBT)							100 °C	-40 °C
Hirose Electric USA, Inc. HR31-5.08R-5PD(76)							Through Hole	Male Pin	Header		1			All	Brass	Polybutylene Terephthalate (PBT)	Circular	Shrouded - 4 Wall	5.08 mm	0.2 in	Mating Flange	Board to Cable/Wire	100 °C	-40 °C	12 mm	0.472 in	Solder	0.169 in	4.3 mm	Gold	Green	UL94 V-0

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 0.94

General part information

Socket Contact Gold 14-16 AWG Crimp

Technical documentation and resources

No documents available
