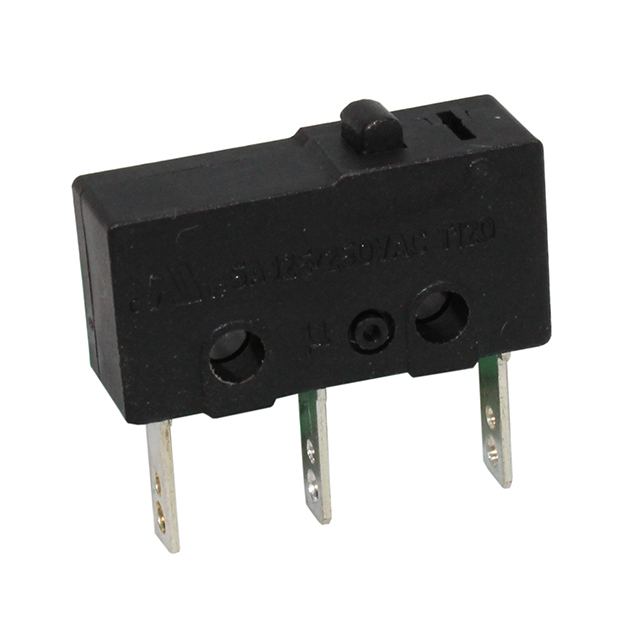

SM3CQF0801L00

Active

CIT Relay and Switch

SWITCH LIMIT SPDT 5A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SM3CQF0801L00

Active

CIT Relay and Switch

SWITCH LIMIT SPDT 5A 125V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SM3CQF0801L00

Actuator Type	Round (Pin Plunger)
Circuit	SPDT
Current Rating (Amps)	5 A
Differential Travel	0.002 in
Differential Travel	0.05 mm
Electrical Life	100000 Cycles
Mechanical Life	10000000 Cycles
Mounting Type	Chassis Mount
Operating Force	80 gf
Operating Position	0.413 in
Operating Position	10.5 mm
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-40 °C
Overtravel	0.4 mm
Overtravel	0.015 "
Switch Function	On-Mom
Termination Style	Quick Connect - 0.110" (2.8mm)
Voltage Rating - AC	125 V

SM3CQ Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Type	Circuit	Differential Travel	Differential Travel	Mounting Type	Termination Style	Mechanical Life	Overtravel	Overtravel	Current Rating (Amps)	Switch Function	Voltage Rating - AC	Operating Position	Operating Position	Operating Force	Electrical Life	Pretravel	Pretravel	Release Force
CIT Relay and Switch SM3CQF0801L00	-40 °C	120 °C	Round (Pin Plunger)	SPDT	0.002 in	0.05 mm	Chassis Mount	Quick Connect - 0.110" (2.8mm)	10000000 Cycles	0.4 mm	0.015 "	5 A	On-Mom	125 V	0.413 in	10.5 mm	80 gf	100000 Cycles
CIT Relay and Switch SM3CQF0803L02	-40 °C	120 °C	Lever Simulated Roller	SPDT			Through Hole	PC Pin	10000000 Cycles	1.1 mm	0.045 in	5 A	On-Mom	125 V	0.512 in	13 mm		100000 Cycles	4.5 mm	0.178 in
CIT Relay and Switch SM3CQF1302L02	-40 °C	120 °C	Lever Simulated Roller	SPDT			Chassis Mount	Solder Lug	10000000 Cycles	1.1 mm	0.045 in	5 A	On-Mom	125 V	0.512 in	13 mm	35 gf	100000 Cycles	4.5 mm	0.178 in	16 gf
CIT Relay and Switch SM3CQF1304L03	-40 °C	120 °C	Lever Roller	SPDT	0.031 "	0.8 mm	Through Hole Right Angle	PC Pin	10000000 Cycles	1 mm	0.039 in	5 A	On-Mom	125 V	0.646 "	16.4 mm	40 gf	100000 Cycles	4.1 mm	0.161 in	20 gf
CIT Relay and Switch SM3CQF3504L03	-40 °C	120 °C	Lever Roller	SPDT	0.031 "	0.8 mm	Through Hole Right Angle	PC Pin	10000000 Cycles	1 mm	0.039 in	5 A	On-Mom	125 V	0.646 "	16.4 mm	95 gf	100000 Cycles	4.1 mm	0.161 in	38 gf
CIT Relay and Switch SM3CQF0801L03	-40 °C	120 °C	Lever Roller	SPDT	0.031 "	0.8 mm	Chassis Mount	Quick Connect - 0.110" (2.8mm)	10000000 Cycles	1 mm	0.039 in	5 A	On-Mom	125 V	0.646 "	16.4 mm	18 gf	100000 Cycles	4.1 mm	0.161 in
CIT Relay and Switch SM3CQF3502L02	-40 °C	120 °C	Lever Simulated Roller	SPDT			Chassis Mount	Solder Lug	10000000 Cycles	1.1 mm	0.045 in	5 A	On-Mom	125 V	0.512 in	13 mm	95 gf	100000 Cycles	4.5 mm	0.178 in	30 gf
CIT Relay and Switch SM3CQF3501L03	-40 °C	120 °C	Lever Roller	SPDT	0.031 "	0.8 mm	Chassis Mount	Quick Connect - 0.110" (2.8mm)	10000000 Cycles	1 mm	0.039 in	5 A	On-Mom	125 V	0.646 "	16.4 mm	95 gf	100000 Cycles	4.1 mm	0.161 in	38 gf
CIT Relay and Switch SM3CQF1303L02	-40 °C	120 °C	Lever Simulated Roller	SPDT			Through Hole	PC Pin	10000000 Cycles	1.1 mm	0.045 in	5 A	On-Mom	125 V	0.512 in	13 mm	35 gf	100000 Cycles	4.5 mm	0.178 in	16 gf
CIT Relay and Switch SM3CQF0805L01	-40 °C	120 °C	Lever Straight	SPDT			Through Hole Right Angle	PC Pin	10000000 Cycles	0.8 mm	0.031 in	5 A	On-Mom	125 V	0.413 in	10.5 mm	20 gf	100000 Cycles	4 mm	0.157 in	10 gf

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 1.31
		10	$ 1.09
		25	$ 1.01
		50	$ 0.95
		200	$ 0.85
		400	$ 0.80
		600	$ 0.78
		1000	$ 0.74
		5000	$ 0.67

Description

General part information

SM3CQ Series

Switch SPDT Chassis Mount
