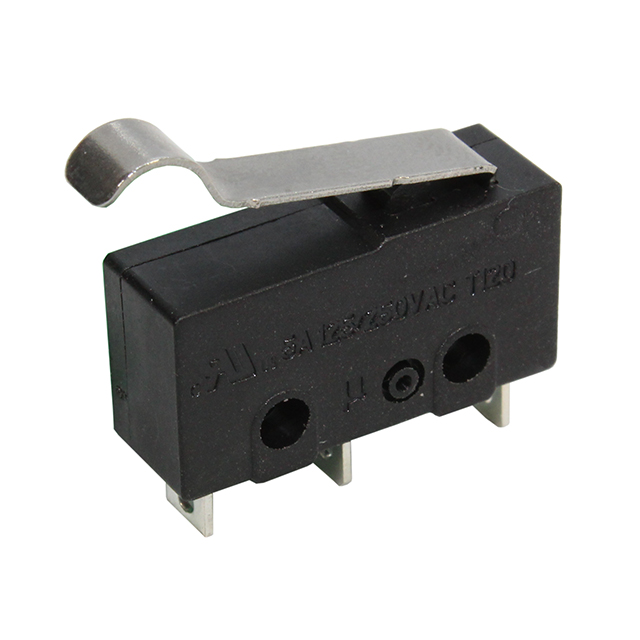

SM3CQF3502L02

Active

CIT Relay and Switch

SWITCH LIMIT SPDT 5A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SM3CQF3502L02

Active

CIT Relay and Switch

SWITCH LIMIT SPDT 5A 125V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SM3CQF3502L02

Actuator Type	Simulated Roller, Lever
Circuit	SPDT
Current Rating (Amps)	5 A
Electrical Life	100000 Cycles
Mechanical Life	10000000 Cycles
Mounting Type	Chassis Mount
Operating Force	95 gf
Operating Position	13 mm
Operating Position	0.512 in
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-40 °C
Overtravel	0.045 in
Overtravel	1.1 mm
Pretravel	4.5 mm
Pretravel	0.178 in
Release Force	30 gf
Switch Function	On-Mom
Termination Style	Solder Lug
Voltage Rating - AC	125 V

SM3CQ Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Type	Circuit	Differential Travel	Differential Travel	Mounting Type	Termination Style	Mechanical Life	Overtravel	Overtravel	Current Rating (Amps)	Switch Function	Voltage Rating - AC	Operating Position	Operating Position	Operating Force	Electrical Life	Pretravel	Pretravel	Release Force
CIT Relay and Switch SM3CQF0801L00	-40 °C	120 °C	Round (Pin Plunger)	SPDT	0.002 in	0.05 mm	Chassis Mount	Quick Connect - 0.110" (2.8mm)	10000000 Cycles	0.4 mm	0.015 "	5 A	On-Mom	125 V	0.413 in	10.5 mm	80 gf	100000 Cycles
CIT Relay and Switch SM3CQF0803L02	-40 °C	120 °C	Lever Simulated Roller	SPDT			Through Hole	PC Pin	10000000 Cycles	1.1 mm	0.045 in	5 A	On-Mom	125 V	0.512 in	13 mm		100000 Cycles	4.5 mm	0.178 in
CIT Relay and Switch SM3CQF1302L02	-40 °C	120 °C	Lever Simulated Roller	SPDT			Chassis Mount	Solder Lug	10000000 Cycles	1.1 mm	0.045 in	5 A	On-Mom	125 V	0.512 in	13 mm	35 gf	100000 Cycles	4.5 mm	0.178 in	16 gf
CIT Relay and Switch SM3CQF1304L03	-40 °C	120 °C	Lever Roller	SPDT	0.031 "	0.8 mm	Through Hole Right Angle	PC Pin	10000000 Cycles	1 mm	0.039 in	5 A	On-Mom	125 V	0.646 "	16.4 mm	40 gf	100000 Cycles	4.1 mm	0.161 in	20 gf
CIT Relay and Switch SM3CQF3504L03	-40 °C	120 °C	Lever Roller	SPDT	0.031 "	0.8 mm	Through Hole Right Angle	PC Pin	10000000 Cycles	1 mm	0.039 in	5 A	On-Mom	125 V	0.646 "	16.4 mm	95 gf	100000 Cycles	4.1 mm	0.161 in	38 gf
CIT Relay and Switch SM3CQF0801L03	-40 °C	120 °C	Lever Roller	SPDT	0.031 "	0.8 mm	Chassis Mount	Quick Connect - 0.110" (2.8mm)	10000000 Cycles	1 mm	0.039 in	5 A	On-Mom	125 V	0.646 "	16.4 mm	18 gf	100000 Cycles	4.1 mm	0.161 in
CIT Relay and Switch SM3CQF3502L02	-40 °C	120 °C	Lever Simulated Roller	SPDT			Chassis Mount	Solder Lug	10000000 Cycles	1.1 mm	0.045 in	5 A	On-Mom	125 V	0.512 in	13 mm	95 gf	100000 Cycles	4.5 mm	0.178 in	30 gf
CIT Relay and Switch SM3CQF3501L03	-40 °C	120 °C	Lever Roller	SPDT	0.031 "	0.8 mm	Chassis Mount	Quick Connect - 0.110" (2.8mm)	10000000 Cycles	1 mm	0.039 in	5 A	On-Mom	125 V	0.646 "	16.4 mm	95 gf	100000 Cycles	4.1 mm	0.161 in	38 gf
CIT Relay and Switch SM3CQF1303L02	-40 °C	120 °C	Lever Simulated Roller	SPDT			Through Hole	PC Pin	10000000 Cycles	1.1 mm	0.045 in	5 A	On-Mom	125 V	0.512 in	13 mm	35 gf	100000 Cycles	4.5 mm	0.178 in	16 gf
CIT Relay and Switch SM3CQF0805L01	-40 °C	120 °C	Lever Straight	SPDT			Through Hole Right Angle	PC Pin	10000000 Cycles	0.8 mm	0.031 in	5 A	On-Mom	125 V	0.413 in	10.5 mm	20 gf	100000 Cycles	4 mm	0.157 in	10 gf

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 1.13
		10	$ 0.93
		25	$ 0.87
		50	$ 0.82
		200	$ 0.73
		400	$ 0.69
		600	$ 0.67
		1000	$ 0.64
		5000	$ 0.57

Description

General part information

SM3CQ Series

Switch SPDT Chassis Mount
