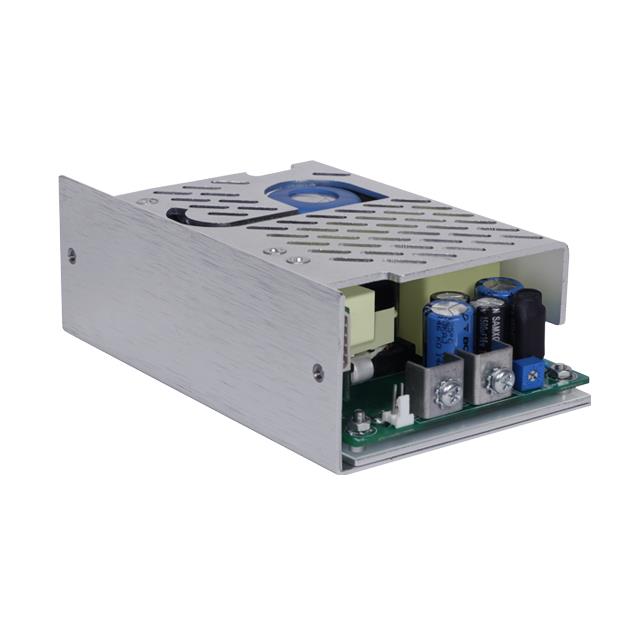

MEPG500-1048-L - MEPG500-1248-L

MEPG500-1048-L

Active
EOS Power India Private Ltd

SWITCHING POWER SUPPLIES POWERSUPPLY,MEPG500-1048-L

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet
MEPG500-1048-L - MEPG500-1248-L

MEPG500-1048-L

Active
EOS Power India Private Ltd

SWITCHING POWER SUPPLIES POWERSUPPLY,MEPG500-1048-L

Deep-Dive with AI

DocumentsDatasheet

Technical Specifications

Parameters and characteristics for this part

SpecificationMEPG500-1048-L
ApplicationsITE (Commercial)
Approval AgencyCE
Current - Output 110.41 A
Efficiency94 %
FeaturesI2C Interface, Remote On/Off, Adjustable Output, Remote Sense, PFC, Universal Input
Mounting TypeChassis Mount
Number of Outputs1
Power (Watts)500 W
Power (Watts)300 W
Size / Dimension [x]5 in
Size / Dimension [x]127 mm
Size / Dimension [y]3 "
Size / Dimension [y]76.2 mm
Size / Dimension [z]1.58 "
Size / Dimension [z]40 mm
Standard Number62368-1
TypeOpen Frame
Voltage - Input [Max]264 VAC
Voltage - Input [Min]90 VAC
Voltage - Isolation4000 V
Voltage - Output 148 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBox 1$ 402.38
5$ 389.81
10$ 377.24
25$ 364.66
SagerN/A 1$ 401.75
5$ 388.85
10$ 376.25
25$ 363.55

Description

General part information

MEPG500 Series

Switching Power Supplies POWERSUPPLY,MEPG500-2215-U

Documents

Technical documentation and resources

Datasheet

Document
