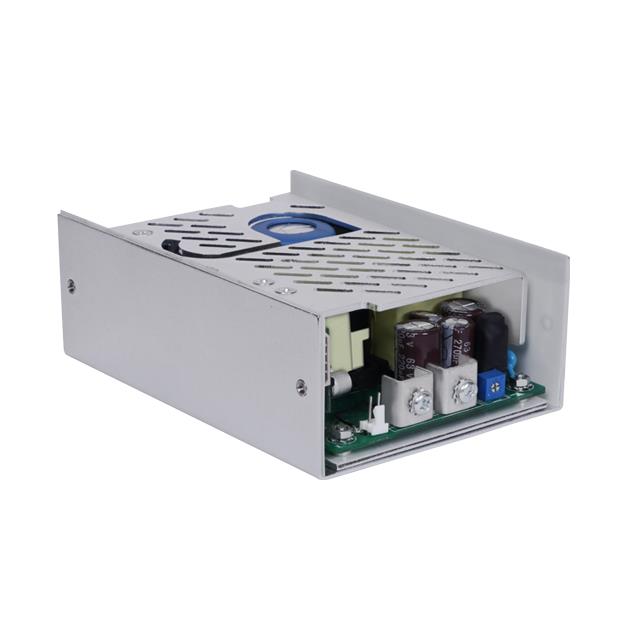

MEPG500-2215-U

Active

EOS Power India Private Ltd

SWITCHING POWER SUPPLIES POWERSUPPLY,MEPG500-2215-U

Search across all available documentation for this part.

Active

EOS Power India Private Ltd

SWITCHING POWER SUPPLIES POWERSUPPLY,MEPG500-2215-U

Technical Specifications

Parameters and characteristics for this part

Specification	MEPG500-2215-U

Applications	ITE (Commercial)
Approval Agency	CE
Current - Output 1	26.67 A
Efficiency	94 %
Features	Universal Input, Remote On/Off, Remote Sense, Adjustable Output, I2C Interface, PFC, Standby Output
Mounting Type	Chassis Mount
Number of Outputs	1
Power (Watts)	400 W
Power (Watts)	240 W
Size / Dimension [x]	5 in
Size / Dimension [x]	127 mm
Size / Dimension [y]	3 "
Size / Dimension [y]	76.2 mm
Size / Dimension [z]	1.58 "
Size / Dimension [z]	40 mm
Standard Number	62368-1
Type	Open Frame
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Isolation	4000 V
Voltage - Output 1	15 V

Switching Power Supplies POWERSUPPLY,MEPG500-2215-U

Part	Features	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Standard Number	Voltage - Isolation	Voltage - Input [Min]	Voltage - Input [Max]	Type	Voltage - Output 1	Mounting Type	Approval Agency	Current - Output 1	Applications	Efficiency	Number of Outputs	Power (Watts)	Power (Watts)
EOS Power India Private Ltd MEPG500-1048-L	Adjustable Output I2C Interface PFC Remote On/Off Remote Sense Universal Input	5 in	3 "	127 mm	1.58 "	76.2 mm	40 mm	62368-1	4000 V	90 VAC	264 VAC	Open Frame	48 V	Chassis Mount	CE	10.41 A	ITE (Commercial)	94 %	1	500 W	300 W
EOS Power India Private Ltd MEPG500-2215-U	Adjustable Output I2C Interface PFC Remote On/Off Remote Sense Standby Output Universal Input	5 in	3 "	127 mm	1.58 "	76.2 mm	40 mm	62368-1	4000 V	90 VAC	264 VAC	Open Frame	15 V	Chassis Mount	CE	26.67 A	ITE (Commercial)	94 %	1	400 W	240 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	42	$ 379.73

General part information

Switching Power Supplies POWERSUPPLY,MEPG500-2215-U

Technical documentation and resources
