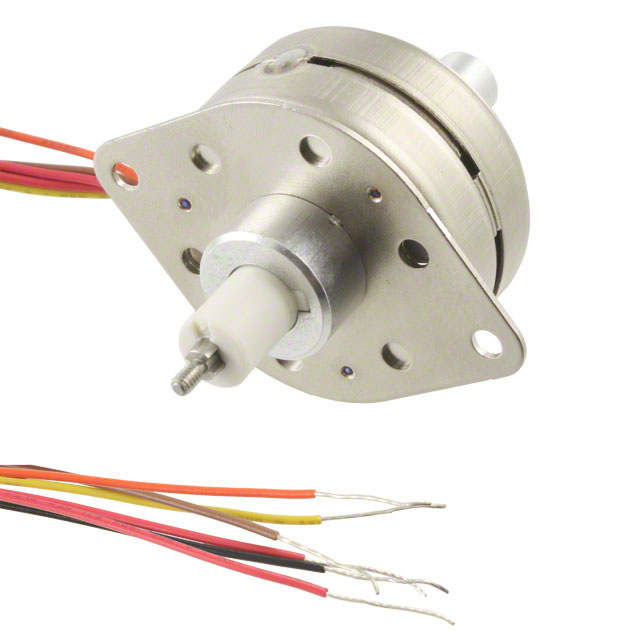

35DBM10B2U-K
ActivePortescap
STEPPER MOTOR PM LINEAR ACT 12V
Deep-Dive with AI
Search across all available documentation for this part.
35DBM10B2U-K
ActivePortescap
STEPPER MOTOR PM LINEAR ACT 12V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 35DBM10B2U-K |
|---|---|
| Construction | Ball Screw |
| Load Force (Static) | 4.7 lbf |
| Load Force (Static) | 20.9 N |
| Motor Type | Stepper, Unipolar |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Stroke Length | 17.9 mm |
| Stroke Length | 0.705 in |
| Termination Style | Wire Leads |
| Type | Linear Actuator |
| Voltage - Rated | 12 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 98.29 | |
| 5 | $ 96.56 | |||
| 10 | $ 94.84 | |||
| 25 | $ 93.11 | |||
| 50 | $ 91.73 | |||
| 100 | $ 89.66 | |||
Description
General part information
35DBM10 Series
STEPPER MOTOR PM LINEAR ACT 12V
Documents
Technical documentation and resources
