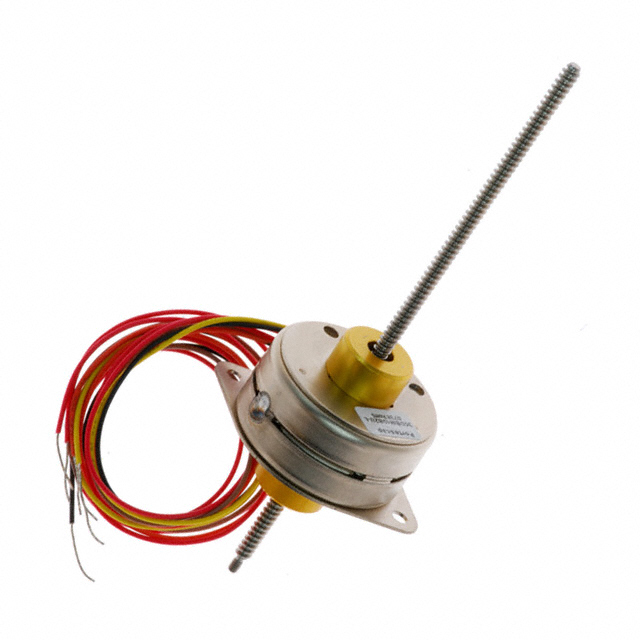

35DBM10B2U-L
ActivePortescap
STEPPER MOTOR PM LINEAR ACT 12V
Deep-Dive with AI
Search across all available documentation for this part.
35DBM10B2U-L
ActivePortescap
STEPPER MOTOR PM LINEAR ACT 12V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 35DBM10B2U-L |
|---|---|
| Construction | Ball Screw |
| Load Force (Static) | 4.7 lbf |
| Load Force (Static) | 20.9 N |
| Motor Type | Stepper, Unipolar |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Termination Style | Wire Leads |
| Type | Linear Actuator |
| Voltage - Rated | 12 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 96.71 | |
| 5 | $ 88.88 | |||
| 10 | $ 85.70 | |||
| 25 | $ 81.68 | |||
| 50 | $ 78.76 | |||
| 100 | $ 77.50 | |||
Description
General part information
35DBM10 Series
STEPPER MOTOR PM LINEAR ACT 12V
