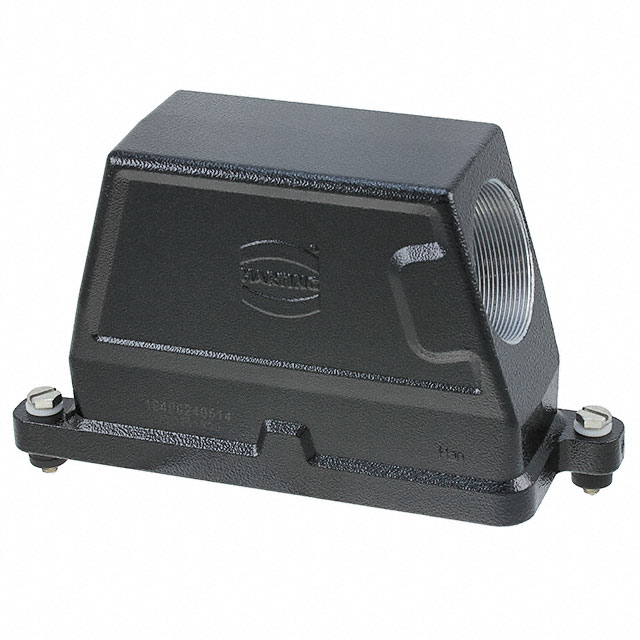

HEAVY DUTY CONNECTOR, HOOD, SIDE ENTRY, ALUMINUM BODY, SCREW, 24B

Deep-Dive with AI

Search across all available documentation for this part.

Documents19400240514 Datasheet Datasheet +2

19400240514

Active

HARTING Technology Group

HEAVY DUTY CONNECTOR, HOOD, SIDE ENTRY, ALUMINUM BODY, SCREW, 24B

Deep-Dive with AI

Documents19400240514 Datasheet Datasheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	19400240514

Connector Type	Hood
Housing Color	Black
Housing Finish	Powder Coated
Housing Material	Die Cast, Aluminum
Lock Location	Screw Locks on Hood
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	24 B
Size / Dimension [x]	7.559 in
Size / Dimension [x]	192 mm
Size / Dimension [y]	58 mm
Size / Dimension [y]	2.283 "
Size / Dimension [z]	110.5 mm
Size / Dimension [z]	4.35 "
Style	Side Entry
Thread Size	M50

19400240 Series

Part	Housing Finish	Size	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Connector Type	Thread Size	Lock Location	Style	Housing Material	Housing Color	Size / Dimension [z]	Size / Dimension [y]	Features
HARTING Technology Group 19400240467	Powder Coated	24 B	125 °C	-40 °C	192 mm	7.559 in	120 mm	58 mm	4.724 "	2.283 "	Hood	M32	Screw Locks on Hood	Top Entry Triple	Aluminum Die Cast	Black
HARTING Technology Group 19400240631	Powder Coated	24 B	125 °C	-40 °C	192 mm	7.559 in	90 mm	80 mm			Hood - 90°	M25	Screw Locks on Hood	Side Entry Triple	Aluminum Die Cast	Black	3.543 in	3.15 in
HARTING Technology Group 19400240652	Powder Coated	24 B	125 °C	-40 °C	192 mm	7.559 in	153 mm	130 mm	6.024 in	5.118 "	Hood - 90°	M32	Screw Locks on Hood	Side Entry Triple	Aluminum Die Cast	Black
HARTING Technology Group 19400240483	Powder Coated	24 B	125 °C	-40 °C							Hood		Locking Clip (1) on Hood	Top Entry	Aluminum Die Cast	Black			Corrosion Resistant
HARTING Technology Group 19400240471	Powder Coated	24 B	125 °C	-40 °C	192 mm	7.559 in	110 mm	58 mm	4.331 "	2.283 "	Hood	M20 M25	Screw Locks on Hood	Quad Top Entry	Aluminum Die Cast	Black
HARTING Technology Group 19400240402	Powder Coated	24 B	125 °C	-40 °C	192 mm	7.559 in	110 mm	58 mm	4.331 "	2.283 "	Hood	M32	Screw Locks on Hood	Top Entry	Aluminum Die Cast	Black
HARTING Technology Group 19400240473	Epoxy Powder Paint	24 B	125 °C	-40 °C	192 mm	7.559 in	110 mm	58 mm	4.331 "	2.283 "	Hood	M20	Screw Locks on Hood	Quad Top Entry	Aluminum Die Cast	Black
HARTING Technology Group 19400240463
HARTING Technology Group 19400240438	Powder Coated	24 B	125 °C	-40 °C	192 mm	7.559 in	110 mm	58 mm	4.331 "	2.283 "	Hood		Screw Locks on Hood	Dual Top Entry	Aluminum Die Cast	Black
HARTING Technology Group 19400240514	Powder Coated	24 B	125 °C	-40 °C	192 mm	7.559 in	110.5 mm	58 mm	4.35 "	2.283 "	Hood	M50	Screw Locks on Hood	Side Entry	Aluminum Die Cast	Black

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 140.76
		10	$ 107.33
		25	$ 97.62
		50	$ 91.31
		100	$ 85.76
Newark	Each	1	$ 117.91
		5	$ 114.83
		10	$ 111.75
		25	$ 101.78

Description

General part information

19400240 Series

Hood Connector Side Entry M50 24B IP65/IP68/IP69K - Dust Tight, Water Resistant, Waterproof
