19400240467

Active

HARTING Technology Group

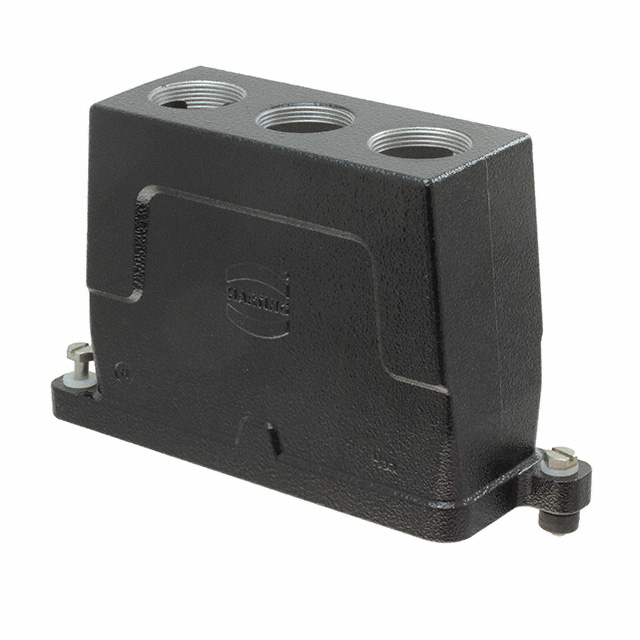

24B HPR HOOD, SCREW LOCKING TOP ENTRY, HIGH CONSTRUCTION, 3XM32

Deep-Dive with AI

Search across all available documentation for this part.

Documents19400240467 Datasheet Datasheet

19400240467

Active

HARTING Technology Group

24B HPR HOOD, SCREW LOCKING TOP ENTRY, HIGH CONSTRUCTION, 3XM32

Deep-Dive with AI

Documents19400240467 Datasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	19400240467

Connector Type	Hood
Housing Color	Black
Housing Finish	Powder Coated
Housing Material	Die Cast, Aluminum
Lock Location	Screw Locks on Hood
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	24 B
Size / Dimension [x]	192 mm
Size / Dimension [x]	7.559 in
Size / Dimension [y]	58 mm
Size / Dimension [y]	2.283 "
Size / Dimension [z]	120 mm
Size / Dimension [z]	4.724 "
Style	Top Entry, Triple
Thread Size	M32

19400240 Series

Part	Housing Finish	Size	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Connector Type	Thread Size	Lock Location	Style	Housing Material	Housing Color	Size / Dimension [z]	Size / Dimension [y]	Features
HARTING Technology Group 19400240467	Powder Coated	24 B	125 °C	-40 °C	192 mm	7.559 in	120 mm	58 mm	4.724 "	2.283 "	Hood	M32	Screw Locks on Hood	Top Entry Triple	Aluminum Die Cast	Black
HARTING Technology Group 19400240631	Powder Coated	24 B	125 °C	-40 °C	192 mm	7.559 in	90 mm	80 mm			Hood - 90°	M25	Screw Locks on Hood	Side Entry Triple	Aluminum Die Cast	Black	3.543 in	3.15 in
HARTING Technology Group 19400240652	Powder Coated	24 B	125 °C	-40 °C	192 mm	7.559 in	153 mm	130 mm	6.024 in	5.118 "	Hood - 90°	M32	Screw Locks on Hood	Side Entry Triple	Aluminum Die Cast	Black
HARTING Technology Group 19400240483	Powder Coated	24 B	125 °C	-40 °C							Hood		Locking Clip (1) on Hood	Top Entry	Aluminum Die Cast	Black			Corrosion Resistant
HARTING Technology Group 19400240471	Powder Coated	24 B	125 °C	-40 °C	192 mm	7.559 in	110 mm	58 mm	4.331 "	2.283 "	Hood	M20 M25	Screw Locks on Hood	Quad Top Entry	Aluminum Die Cast	Black
HARTING Technology Group 19400240402	Powder Coated	24 B	125 °C	-40 °C	192 mm	7.559 in	110 mm	58 mm	4.331 "	2.283 "	Hood	M32	Screw Locks on Hood	Top Entry	Aluminum Die Cast	Black
HARTING Technology Group 19400240473	Epoxy Powder Paint	24 B	125 °C	-40 °C	192 mm	7.559 in	110 mm	58 mm	4.331 "	2.283 "	Hood	M20	Screw Locks on Hood	Quad Top Entry	Aluminum Die Cast	Black
HARTING Technology Group 19400240463
HARTING Technology Group 19400240438	Powder Coated	24 B	125 °C	-40 °C	192 mm	7.559 in	110 mm	58 mm	4.331 "	2.283 "	Hood		Screw Locks on Hood	Dual Top Entry	Aluminum Die Cast	Black
HARTING Technology Group 19400240514	Powder Coated	24 B	125 °C	-40 °C	192 mm	7.559 in	110.5 mm	58 mm	4.35 "	2.283 "	Hood	M50	Screw Locks on Hood	Side Entry	Aluminum Die Cast	Black

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 424.86
Newark	Each	1	$ 358.64
		10	$ 341.68
		25	$ 329.56
TME	N/A	1	$ 367.85
		3	$ 312.68
		5	$ 257.50

Description

General part information

19400240 Series

Hood Connector Top Entry, Triple M32 24B IP65/IP68/IP69K - Dust Tight, Water Resistant, Waterproof

Documents

Technical documentation and resources

19400240467 Datasheet

Datasheet
