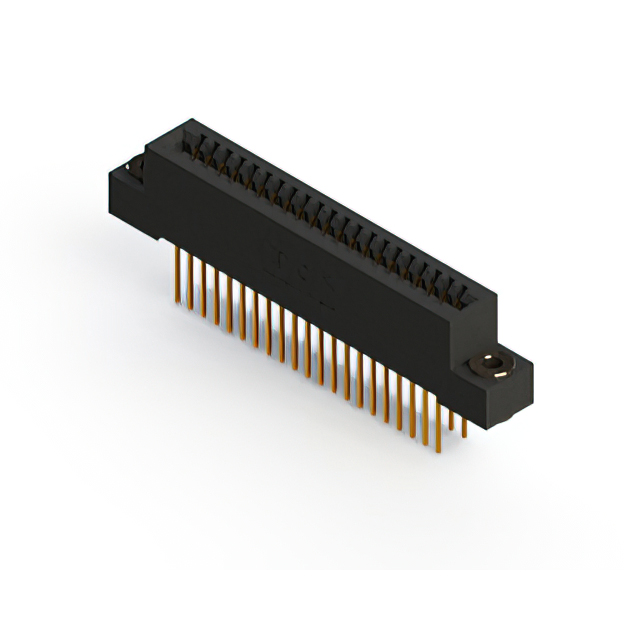

892-042-541-203

Active

EDAC Inc.

CONN EDGE DUAL FMALE 42POS 0.100

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

892-042-541-203

Active

EDAC Inc.

CONN EDGE DUAL FMALE 42POS 0.100

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	892-042-541-203

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Floating Bobbin, Flush Mount
Flange Feature [diameter]	0.116 in
Flange Feature [diameter]	2.95 mm
Gender	Female
Material - Insulation	Polyphenylene Sulfide (PPS)
Mounting Type	Through Hole
Number of Positions	42
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Dual
Termination	Wire Wrap
Termination Rows	2

892-042 Series

...

Part	Termination Rows	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Material - Insulation	Number of Positions	Mounting Type	Termination	Card Type	Pitch [x]	Pitch [x]	Color	Contact Material	Number of Rows	Read Out	Gender	Operating Temperature [Max]	Operating Temperature [Min]	Contact Type	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Number of Positions/Bay/Row [custom]	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Features
EDAC Inc. 892-042-542-201	2	10 Áin	0.25 Ám	Gold	Polyphenylene Sulfide (PPS)	42	Through Hole	Wire Wrap	Non Specified - Dual Edge	2.54 mm	0.1 in	Black	Copper Alloy	2	Dual	Female	125 °C	-40 °C	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in
EDAC Inc. 892-042-521-101	1	10 Áin	0.25 Ám	Gold	Polyphenylene Sulfide (PPS)	42	Through Hole	Solder	Non Specified - Single Edge	2.54 mm	0.1 in	Black	Copper Alloy	1	Single	Female	125 °C	-40 °C	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in	42
EDAC Inc. 892-042-542-101	1	10 Áin	0.25 Ám	Gold	Polyphenylene Sulfide (PPS)	42	Through Hole	Wire Wrap	Non Specified - Single Edge	2.54 mm	0.1 in	Black	Copper Alloy	1	Single	Female	125 °C	-40 °C	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in	42
EDAC Inc. 892-042-500-104	1	10 Áin	0.25 Ám	Gold	Polyphenylene Sulfide (PPS)	42	Through Hole	Solder Eyelet(s)	Non Specified - Single Edge	2.54 mm	0.1 in	Black	Copper Alloy	1	Single	Female	125 °C	-40 °C	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in	42	3.96 mm	Flush Mount Top Opening Unthreaded	0.156 in
EDAC Inc. 892-042-558-202	2	10 Áin	0.25 Ám	Gold	Polyphenylene Sulfide (PPS)	42	Through Hole Right Angle	Solder	Non Specified - Dual Edge	2.54 mm	0.1 in	Black	Copper Alloy	2	Dual	Female	125 °C	-40 °C	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in		3.25 mm	Flush Mount Top Opening Unthreaded	0.128 "
EDAC Inc. 892-042-560-212	2	10 Áin	0.25 Ám	Gold	Polyphenylene Sulfide (PPS)	42	Board Edge Straddle Mount	Solder	Non Specified - Dual Edge	2.54 mm	0.1 in	Black	Copper Alloy	2	Dual	Female	125 °C	-40 °C	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in		3.25 mm	Flush Mount Side Opening Unthreaded	0.128 "	Card Extender
EDAC Inc. 892-042-541-103	1	10 Áin	0.25 Ám	Gold	Polyphenylene Sulfide (PPS)	42	Through Hole	Wire Wrap	Non Specified - Single Edge	2.54 mm	0.1 in	Black	Copper Alloy	1	Single	Female	125 °C	-40 °C	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in	42	2.95 mm	Floating Bobbin Flush Mount	0.116 in
EDAC Inc. 892-042-520-101	1	10 Áin	0.25 Ám	Gold	Polyphenylene Sulfide (PPS)	42	Through Hole	Solder	Non Specified - Single Edge	2.54 mm	0.1 in	Black	Copper Alloy	1	Single	Female	125 °C	-40 °C	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in	42
EDAC Inc. 892-042-558-104	1	10 Áin	0.25 Ám	Gold	Polyphenylene Sulfide (PPS)	42	Through Hole Right Angle	Solder	Non Specified - Single Edge	2.54 mm	0.1 in	Black	Copper Alloy	1	Single	Female	125 °C	-40 °C	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in	42	3.96 mm	Flush Mount Top Opening Unthreaded	0.156 in
EDAC Inc. 892-042-541-203	2	10 Áin	0.25 Ám	Gold	Polyphenylene Sulfide (PPS)	42	Through Hole	Wire Wrap	Non Specified - Dual Edge	2.54 mm	0.1 in	Black	Copper Alloy	2	Dual	Female	125 °C	-40 °C	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in		2.95 mm	Floating Bobbin Flush Mount	0.116 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 74.43
Newark	Each	1	$ 89.32
		100	$ 69.00
		250	$ 59.59
		500	$ 51.00
		1000	$ 36.88

Description

General part information

892-042 Series

42 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Black
