892-042-558-202
ActiveEDAC Inc.

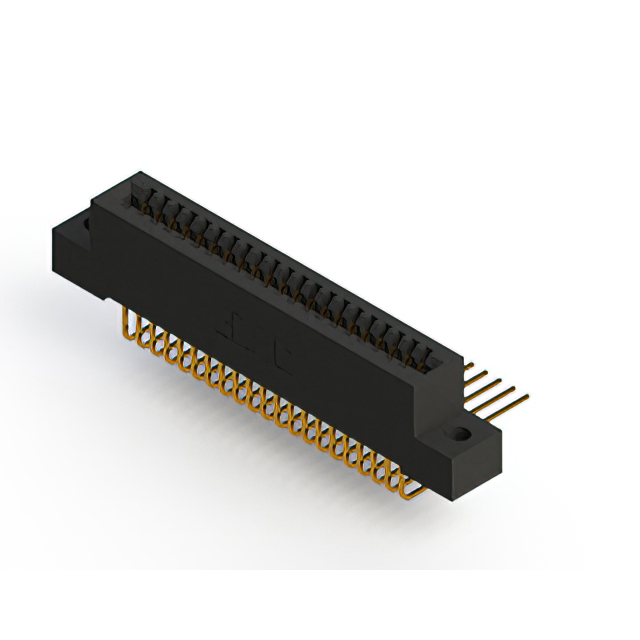

CARD EDGE CONNECTOR, 42 CONTACT(S), 2 ROW(S), FEMALE, RIGHT ANGLE, 0.1 INCH PITCH, SOLDER TERMINAL, HOLE .128, BLACK INSULATOR,
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
892-042-558-202
ActiveEDAC Inc.
CARD EDGE CONNECTOR, 42 CONTACT(S), 2 ROW(S), FEMALE, RIGHT ANGLE, 0.1 INCH PITCH, SOLDER TERMINAL, HOLE .128, BLACK INSULATOR,
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 892-042-558-202 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Flush Mount, Top Opening, Unthreaded |
| Flange Feature [diameter] | 3.25 mm |
| Flange Feature [diameter] | 0.128 " |
| Gender | Female |
| Material - Insulation | Polyphenylene Sulfide (PPS) |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 42 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
892-042 Series
...
| Part | Termination Rows | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Material - Insulation | Number of Positions | Mounting Type | Termination | Card Type | Pitch [x] | Pitch [x] | Color | Contact Material | Number of Rows | Read Out | Gender | Operating Temperature [Max] | Operating Temperature [Min] | Contact Type | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Number of Positions/Bay/Row [custom] | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 2 | 10 Áin | 0.25 Ám | Gold | Polyphenylene Sulfide (PPS) | 42 | Through Hole | Wire Wrap | Non Specified - Dual Edge | 2.54 mm | 0.1 in | Black | Copper Alloy | 2 | Dual | Female | 125 °C | -40 °C | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | |||||
EDAC Inc. | 1 | 10 Áin | 0.25 Ám | Gold | Polyphenylene Sulfide (PPS) | 42 | Through Hole | Solder | Non Specified - Single Edge | 2.54 mm | 0.1 in | Black | Copper Alloy | 1 | Single | Female | 125 °C | -40 °C | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 42 | ||||
EDAC Inc. | 1 | 10 Áin | 0.25 Ám | Gold | Polyphenylene Sulfide (PPS) | 42 | Through Hole | Wire Wrap | Non Specified - Single Edge | 2.54 mm | 0.1 in | Black | Copper Alloy | 1 | Single | Female | 125 °C | -40 °C | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 42 | ||||
EDAC Inc. | 1 | 10 Áin | 0.25 Ám | Gold | Polyphenylene Sulfide (PPS) | 42 | Through Hole | Solder Eyelet(s) | Non Specified - Single Edge | 2.54 mm | 0.1 in | Black | Copper Alloy | 1 | Single | Female | 125 °C | -40 °C | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 42 | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | |
EDAC Inc. | 2 | 10 Áin | 0.25 Ám | Gold | Polyphenylene Sulfide (PPS) | 42 | Through Hole Right Angle | Solder | Non Specified - Dual Edge | 2.54 mm | 0.1 in | Black | Copper Alloy | 2 | Dual | Female | 125 °C | -40 °C | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 3.25 mm | Flush Mount Top Opening Unthreaded | 0.128 " | ||
EDAC Inc. | 2 | 10 Áin | 0.25 Ám | Gold | Polyphenylene Sulfide (PPS) | 42 | Board Edge Straddle Mount | Solder | Non Specified - Dual Edge | 2.54 mm | 0.1 in | Black | Copper Alloy | 2 | Dual | Female | 125 °C | -40 °C | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | Card Extender | |
EDAC Inc. | 1 | 10 Áin | 0.25 Ám | Gold | Polyphenylene Sulfide (PPS) | 42 | Through Hole | Wire Wrap | Non Specified - Single Edge | 2.54 mm | 0.1 in | Black | Copper Alloy | 1 | Single | Female | 125 °C | -40 °C | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 42 | 2.95 mm | Floating Bobbin Flush Mount | 0.116 in | |
EDAC Inc. | 1 | 10 Áin | 0.25 Ám | Gold | Polyphenylene Sulfide (PPS) | 42 | Through Hole | Solder | Non Specified - Single Edge | 2.54 mm | 0.1 in | Black | Copper Alloy | 1 | Single | Female | 125 °C | -40 °C | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 42 | ||||
EDAC Inc. | 1 | 10 Áin | 0.25 Ám | Gold | Polyphenylene Sulfide (PPS) | 42 | Through Hole Right Angle | Solder | Non Specified - Single Edge | 2.54 mm | 0.1 in | Black | Copper Alloy | 1 | Single | Female | 125 °C | -40 °C | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 42 | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | |
EDAC Inc. | 2 | 10 Áin | 0.25 Ám | Gold | Polyphenylene Sulfide (PPS) | 42 | Through Hole | Wire Wrap | Non Specified - Dual Edge | 2.54 mm | 0.1 in | Black | Copper Alloy | 2 | Dual | Female | 125 °C | -40 °C | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.95 mm | Floating Bobbin Flush Mount | 0.116 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
892-042 Series
42 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Black
