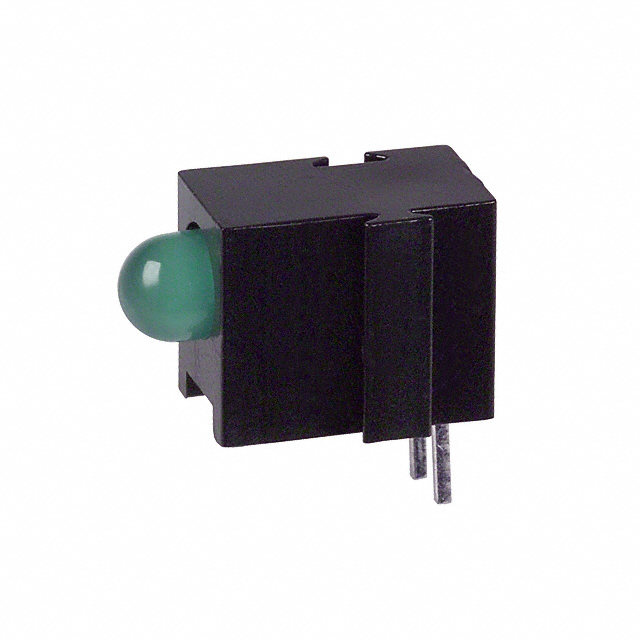

SSF-LXH2300LGD-LM
ActiveLumex Opto/Components Inc.
LED CBI 3MM GREEN RA PCMNT
Deep-Dive with AI
Search across all available documentation for this part.
SSF-LXH2300LGD-LM
ActiveLumex Opto/Components Inc.
LED CBI 3MM GREEN RA PCMNT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SSF-LXH2300LGD-LM |
|---|---|
| Color | Green |
| Configuration | Single |
| Lens Size | 3 mm |
| Lens Size | T-1 |
| Lens Style | Round with Domed Top |
| Lens Type | Tinted, Diffused |
| Millicandela Rating | 50 mcd |
| Mounting Type | Through Hole, Right Angle |
| Viewing Angle | 60 ° |
| Wavelength - Peak | 565 nm |
SSF-LXH2300 Series
| Part | Mounting Type | Configuration | Viewing Angle | Lens Size | Lens Size | Color | Millicandela Rating | Current | Lens Type | Lens Style | Voltage Rating | Wavelength - Peak |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
Lumex Opto/Components Inc. | Through Hole Right Angle | Single | 60 ° | 3 mm | T-1 | Green | 30 mcd | 25 mA | Diffused Tinted | Round with Domed Top | 5 V | 565 nm |
Lumex Opto/Components Inc. | Through Hole Right Angle | 3 mm | T-1 | Red | Round with Domed Top | |||||||
Lumex Opto/Components Inc. | Through Hole Right Angle | Single | 60 ° | 3 mm | T-1 | Red | 50 mcd | Diffused Tinted | Round with Domed Top | 2 V | 635 nm | |
Lumex Opto/Components Inc. | Through Hole Right Angle | Single | 60 ° | 3 mm | T-1 | Green | 50 mcd | Diffused Tinted | Round with Domed Top | 565 nm | ||
Lumex Opto/Components Inc. | Through Hole Right Angle | Single | 60 ° | 3 mm | T-1 | Red | 50 mcd | Diffused Tinted | Round with Domed Top | 2 V | 635 nm | |
Lumex Opto/Components Inc. | Through Hole Right Angle | Single | 60 ° | 3 mm | T-1 | Green | 50 mcd | Diffused Tinted | Round with Domed Top | 565 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
SSF-LXH2300 Series
LED Circuit Board Indicator LED Circuit Board Indicator Single Green Diffused, Tinted 2.2V 20mA Round with Domed Top 3mm, T-1 Through Hole, Right Angle
