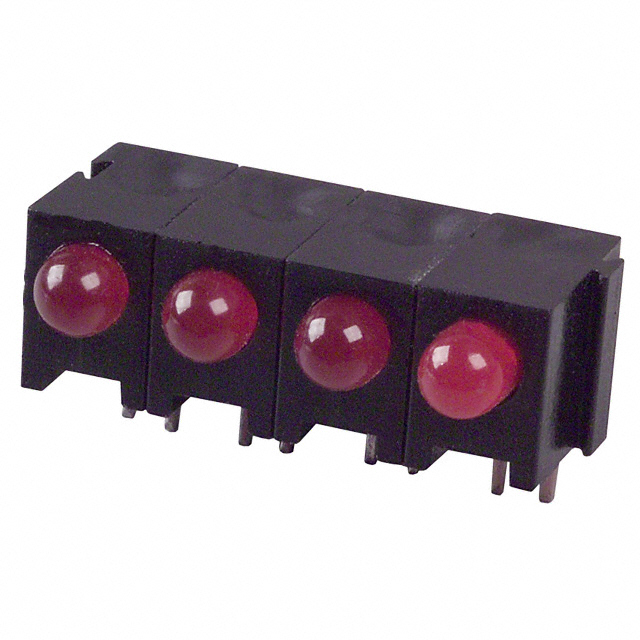

SSF-LXH2300/4ID

Obsolete

Lumex Opto/Components Inc.

LED CBI 3MM RED RA PCMNT

Search across all available documentation for this part.

Obsolete

Lumex Opto/Components Inc.

LED CBI 3MM RED RA PCMNT

Technical Specifications

Parameters and characteristics for this part

Part	Mounting Type	Configuration	Viewing Angle	Lens Size	Lens Size	Color	Millicandela Rating	Current	Lens Type	Lens Style	Voltage Rating	Wavelength - Peak
Lumex Opto/Components Inc. SSF-LXH2300GD-5V-LM	Through Hole Right Angle	Single	60 °	3 mm	T-1	Green	30 mcd	25 mA	Diffused Tinted	Round with Domed Top	5 V	565 nm
Lumex Opto/Components Inc. SSF-LXH2300/4ID	Through Hole Right Angle			3 mm	T-1	Red				Round with Domed Top
Lumex Opto/Components Inc. SSF-LXH2300LID-LM	Through Hole Right Angle	Single	60 °	3 mm	T-1	Red	50 mcd		Diffused Tinted	Round with Domed Top	2 V	635 nm
Lumex Opto/Components Inc. SSF-LXH2300GD-LM	Through Hole Right Angle	Single	60 °	3 mm	T-1	Green	50 mcd		Diffused Tinted	Round with Domed Top		565 nm
Lumex Opto/Components Inc. SSF-LXH2300ID-LM	Through Hole Right Angle	Single	60 °	3 mm	T-1	Red	50 mcd		Diffused Tinted	Round with Domed Top	2 V	635 nm
Lumex Opto/Components Inc. SSF-LXH2300LGD-LM	Through Hole Right Angle	Single	60 °	3 mm	T-1	Green	50 mcd		Diffused Tinted	Round with Domed Top		565 nm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LED Circuit Board Indicator LED Circuit Board Indicator Red Round with Domed Top 3mm, T-1 Through Hole, Right Angle

Technical documentation and resources

No documents available
