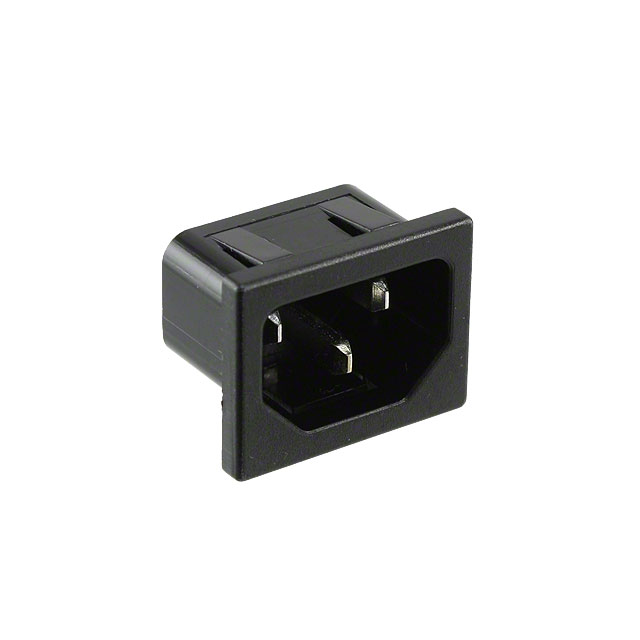

701W-15/21

Active

Qualtek

PWR ENT RCPT IEC320-C14 PNL SLDR

Search across all available documentation for this part.

Active

Qualtek

PWR ENT RCPT IEC320-C14 PNL SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	701W-15/21

Accomodates a Fuse	False
Approval Agency	VDE, CCC, UL, CSA
Connector Style	IEC 320-C14
Connector Type	Male Blades, Receptacle
Current Rating - Appliance Inlet	10 A
Filter Type	Unfiltered - Commercial
Mounting Type	Panel Mount, Snap-In
Panel Cutout Dimensions [x]	27.2 mm
Panel Cutout Dimensions [y]	19.7 mm
Panel Thickness [custom]	0.059 in
Panel Thickness [custom]	1.5 mm
Termination	Solder Eyelet
Voltage Rating - Appliance Inlet	250 VAC

Part	Termination	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Approval Agency	Filter Type	Panel Thickness [custom]	Panel Thickness [custom]	Current Rating - Appliance Inlet	Connector Style	Voltage Rating - Appliance Inlet	Mounting Type	Connector Type	Termination
Qualtek 701W-15/06	Solder	27.2 mm	19.7 mm	CCC CSA UL VDE	Unfiltered - Commercial	0.059 in	1.5 mm	10 A	IEC 320-C14	250 VAC	Panel Mount Snap-In Through Hole Right Angle	Male Blades Receptacle
Qualtek 701W-15/21	Solder Eyelet	27.2 mm	19.7 mm	CCC CSA UL VDE	Unfiltered - Commercial	0.059 in	1.5 mm	10 A	IEC 320-C14	250 VAC	Panel Mount Snap-In	Male Blades Receptacle
Qualtek 701W-15/48	Solder Eyelet	26.7 mm	19.8 mm	CCC CSA UL VDE	Unfiltered - Commercial	0.059 in	1.5 mm	10 A	IEC 320-C14	250 VAC	Panel Mount Snap-In	Male Blades Receptacle
Qualtek 701W-15/26	Quick Connect	27.2 mm	19.7 mm	CCC CSA UL VDE	Unfiltered - Commercial	0.059 in	1.5 mm	10 A	IEC 320-C14	250 VAC	Panel Mount Snap-In	Male Blades Receptacle	0.189 " 4.8 mm
