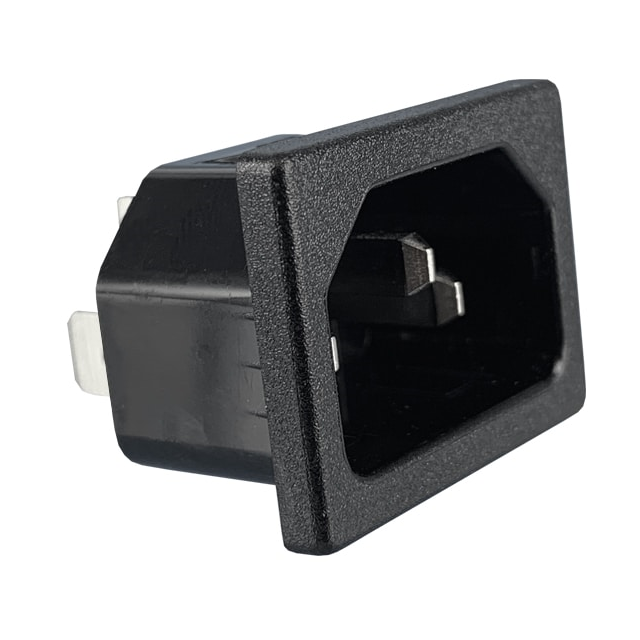

701W-15/26
ActiveQualtek
PWR ENT RCPT IEC320-C14 PANEL QC
Deep-Dive with AI
Search across all available documentation for this part.
701W-15/26
ActiveQualtek
PWR ENT RCPT IEC320-C14 PANEL QC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 701W-15/26 |
|---|---|
| Accomodates a Fuse | False |
| Approval Agency | VDE, CCC, UL, CSA |
| Connector Style | IEC 320-C14 |
| Connector Type | Male Blades, Receptacle |
| Current Rating - Appliance Inlet | 10 A |
| Filter Type | Unfiltered - Commercial |
| Mounting Type | Panel Mount, Snap-In |
| Panel Cutout Dimensions [x] | 27.2 mm |
| Panel Cutout Dimensions [y] | 19.7 mm |
| Panel Thickness [custom] | 0.059 in |
| Panel Thickness [custom] | 1.5 mm |
| Termination | 0.189 ", 4.8 mm |
| Termination | Quick Connect |
| Voltage Rating - Appliance Inlet | 250 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.89 | |
| 10 | $ 0.75 | |||
| 25 | $ 0.72 | |||
| 50 | $ 0.71 | |||
| 100 | $ 0.67 | |||
| 300 | $ 0.61 | |||
| 500 | $ 0.55 | |||
| 1000 | $ 0.54 | |||
Description
General part information
701W-15 Series
Power Entry Connector Receptacle, Male Blades IEC 320-C14 Panel Mount, Snap-In
