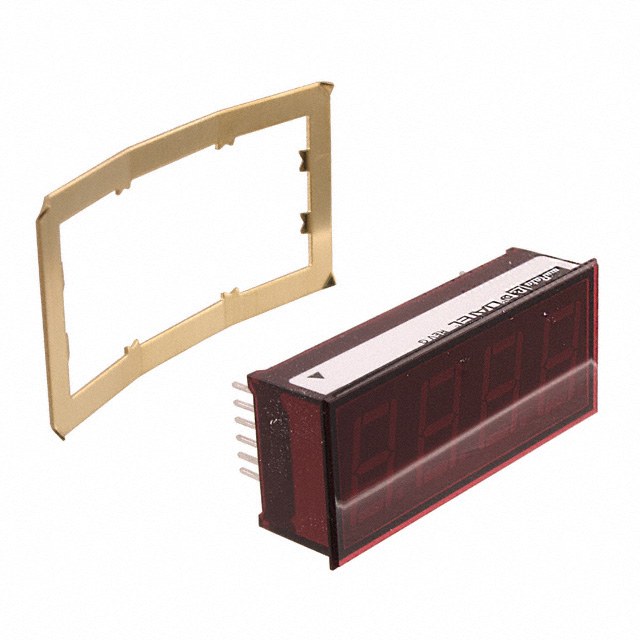

DMS-30PC-1-RS-C

Active

Murata Power Solutions Inc.

DISPLAYS, 30.5 DIGIT, LED DISPLAY LOW-POWER, MINIATURE DIGITAL PANEL VOLTMETERS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

DMS-30PC-1-RS-C

Active

Murata Power Solutions Inc.

DISPLAYS, 30.5 DIGIT, LED DISPLAY LOW-POWER, MINIATURE DIGITAL PANEL VOLTMETERS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DMS-30PC-1-RS-C

Display Characters - Height [z]	14.2 mm
Display Characters - Height [z]	0.56 in
Display Type	LED - Red Characters
Measuring Range [Max]	2 V
Measuring Range [Min]	-2 V
Measuring Type	Voltage
Number of Characters Per Row	3.5
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	0 °C
Output Type	Reference
Panel Cutout Dimensions [x]	53.8 mm
Panel Cutout Dimensions [y]	22.3 mm
Termination Style	PC Pin
Type	Voltmeter
Voltage - Supply	5 V
Weight	20.87 g
Weight	0.046 lb

DMS-30PC Series

Part	Output Type	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Display Type	Measuring Type	Operating Temperature [Max]	Voltage - Supply	Termination Style	Type	Number of Characters Per Row	Display Characters - Height [z]	Display Characters - Height [z]	Weight	Weight	Measuring Range [Min]	Measuring Range [Max]	Features
Murata Power Solutions Inc. DMS-30PC-2-RL-C	Reference	22.3 mm	53.8 mm	LED - Red Characters	Voltage	60 °C	5 V	PC Pin	Voltmeter	3.5	14.2 mm	0.56 in	20.87 g	0.046 lb
Murata Power Solutions Inc. DMS-30PC-3-GS-C	Reference	22.3 mm	53.8 mm	LED - Green Characters	Voltage	60 °C	5 V	PC Pin	Voltmeter	3.5	14.2 mm	0.56 in	20.87 g	0.046 lb	-200 V	200 V	Bezel Sold Separately
Murata Power Solutions Inc. DMS-30PC-0-GS-C	Reference	22.3 mm	53.8 mm	LED - Green Characters	Voltage	60 °C	5 V	PC Pin	Voltmeter	3.5	14.2 mm	0.56 in	20.87 g	0.046 lb	-200 mV	0.2 VDC
Murata Power Solutions Inc. DMS-30PC-2-BS-C	Reference	22.3 mm	53.8 mm		Voltage	60 °C	5 V	PC Pin	Voltmeter	3.5	14.2 mm	0.56 in	20.87 g	0.046 lb
Murata Power Solutions Inc. DMS-30PC-1-RS-C	Reference	22.3 mm	53.8 mm	LED - Red Characters	Voltage	60 °C	5 V	PC Pin	Voltmeter	3.5	14.2 mm	0.56 in	20.87 g	0.046 lb	-2 V	2 V
Murata Power Solutions Inc. DMS-30PC-4/20S-24BS-I-C		22.3 mm	53.8 mm		Process	60 °C	24 VDC	Screw Terminal	Process Meter	3.5	14.2 mm	0.56 in	28.12 g	0.062 lb
Murata Power Solutions Inc. DMS-30PC-1-OS-C	Reference	22.3 mm	53.8 mm	LED - Orange Characters	Voltage	60 °C	5 V	PC Pin	Voltmeter	3.5	14.2 mm	0.56 in	20.87 g	0.046 lb	-2 V	2 V
Murata Power Solutions Inc. DMS-30PC-3-BS-C	Reference	22.3 mm	53.8 mm		Voltage	60 °C	5 V	PC Pin	Voltmeter	3.5	14.2 mm	0.56 in	20.87 g	0.046 lb	-200 V	200 V	Bezel Sold Separately
Murata Power Solutions Inc. DMS-30PC-0-GL-C	Reference	22.3 mm	53.8 mm	LED - Green Characters	Voltage	60 °C	5 V	PC Pin	Voltmeter	3.5	14.2 mm	0.56 in	20.87 g	0.046 lb	-200 mV	0.2 VDC	Bezel Sold Separately
Murata Power Solutions Inc. DMS-30PC-4/20S-24RS-I-C		22.3 mm	53.8 mm	LED - Red Characters	Process	60 °C	24 VDC	Screw Terminal	Process Meter	3.5	14.2 mm	0.56 in	28.12 g	0.062 lb

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 62.37
		5	$ 57.17
		10	$ 55.44
		25	$ 53.13
		50	$ 49.67
		100	$ 46.08

Description

General part information

DMS-30PC Series

Voltmeter LED - Red Characters Display Panel Mount
