DMS-30PC-4/20S-24BS-I-C

Active

Murata Power Solutions Inc.

PANEL METER, DMS-30PC-4/20S SERIES, CURRENT LOOP, 4 TO 20MA, 3.5 DIGITS, 21.6 V TO 24 V, BLUE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN +1

DMS-30PC-4/20S-24BS-I-C

Active

Murata Power Solutions Inc.

PANEL METER, DMS-30PC-4/20S SERIES, CURRENT LOOP, 4 TO 20MA, 3.5 DIGITS, 21.6 V TO 24 V, BLUE

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DMS-30PC-4/20S-24BS-I-C

Display Characters - Height [z]	14.2 mm
Display Characters - Height [z]	0.56 in
Measuring Type	Process
Number of Characters Per Row	3.5
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	0 °C
Panel Cutout Dimensions [x]	53.8 mm
Panel Cutout Dimensions [y]	22.3 mm
Termination Style	Screw Terminal
Type	Process Meter
Voltage - Supply	24 VDC
Weight	28.12 g
Weight	0.062 lb

DMS-30PC Series

Part	Output Type	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Display Type	Measuring Type	Operating Temperature [Max]	Voltage - Supply	Termination Style	Type	Number of Characters Per Row	Display Characters - Height [z]	Display Characters - Height [z]	Weight	Weight	Measuring Range [Min]	Measuring Range [Max]	Features
Murata Power Solutions Inc. DMS-30PC-2-RL-C	Reference	22.3 mm	53.8 mm	LED - Red Characters	Voltage	60 °C	5 V	PC Pin	Voltmeter	3.5	14.2 mm	0.56 in	20.87 g	0.046 lb
Murata Power Solutions Inc. DMS-30PC-3-GS-C	Reference	22.3 mm	53.8 mm	LED - Green Characters	Voltage	60 °C	5 V	PC Pin	Voltmeter	3.5	14.2 mm	0.56 in	20.87 g	0.046 lb	-200 V	200 V	Bezel Sold Separately
Murata Power Solutions Inc. DMS-30PC-0-GS-C	Reference	22.3 mm	53.8 mm	LED - Green Characters	Voltage	60 °C	5 V	PC Pin	Voltmeter	3.5	14.2 mm	0.56 in	20.87 g	0.046 lb	-200 mV	0.2 VDC
Murata Power Solutions Inc. DMS-30PC-2-BS-C	Reference	22.3 mm	53.8 mm		Voltage	60 °C	5 V	PC Pin	Voltmeter	3.5	14.2 mm	0.56 in	20.87 g	0.046 lb
Murata Power Solutions Inc. DMS-30PC-1-RS-C	Reference	22.3 mm	53.8 mm	LED - Red Characters	Voltage	60 °C	5 V	PC Pin	Voltmeter	3.5	14.2 mm	0.56 in	20.87 g	0.046 lb	-2 V	2 V
Murata Power Solutions Inc. DMS-30PC-4/20S-24BS-I-C		22.3 mm	53.8 mm		Process	60 °C	24 VDC	Screw Terminal	Process Meter	3.5	14.2 mm	0.56 in	28.12 g	0.062 lb
Murata Power Solutions Inc. DMS-30PC-1-OS-C	Reference	22.3 mm	53.8 mm	LED - Orange Characters	Voltage	60 °C	5 V	PC Pin	Voltmeter	3.5	14.2 mm	0.56 in	20.87 g	0.046 lb	-2 V	2 V
Murata Power Solutions Inc. DMS-30PC-3-BS-C	Reference	22.3 mm	53.8 mm		Voltage	60 °C	5 V	PC Pin	Voltmeter	3.5	14.2 mm	0.56 in	20.87 g	0.046 lb	-200 V	200 V	Bezel Sold Separately
Murata Power Solutions Inc. DMS-30PC-0-GL-C	Reference	22.3 mm	53.8 mm	LED - Green Characters	Voltage	60 °C	5 V	PC Pin	Voltmeter	3.5	14.2 mm	0.56 in	20.87 g	0.046 lb	-200 mV	0.2 VDC	Bezel Sold Separately
Murata Power Solutions Inc. DMS-30PC-4/20S-24RS-I-C		22.3 mm	53.8 mm	LED - Red Characters	Process	60 °C	24 VDC	Screw Terminal	Process Meter	3.5	14.2 mm	0.56 in	28.12 g	0.062 lb

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 108.57
		10	$ 103.95
		25	$ 101.06
		50	$ 97.60
		100	$ 91.25
Newark	Each	10	$ 108.11
		25	$ 105.10
		50	$ 101.50
		100	$ 94.90

Description

General part information

DMS-30PC Series

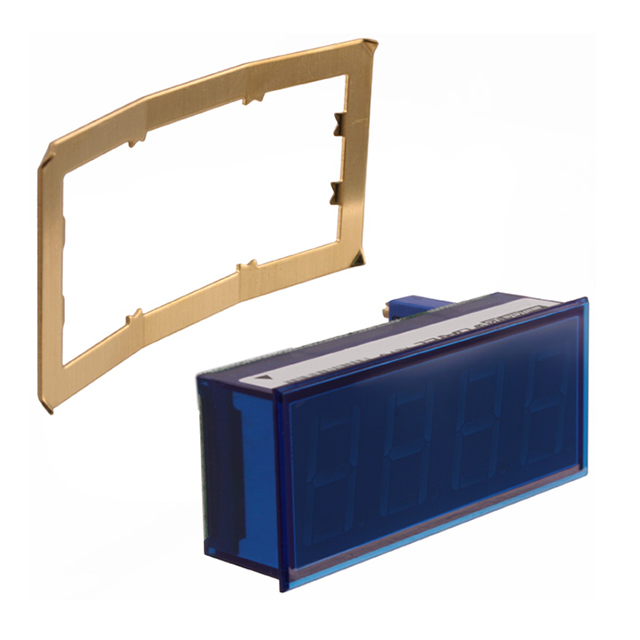

The DMS-30PC-4/20S-24BS-I-C is a 3-1/2-digit high-intensity blue LED Panel Meter with isolated supply. It offers an outstanding combination of electrical performance, display readability, ease-of-use and long-term reliability. This meter is constructed using Murata Power Solutions super-reliable, field-proven epoxy-encapsulated DMS-30PC digital voltmeter. The decimal point and range-change settings are made on a gold-plated, vibration-resistant, DIP switch and there is no cumbersome solder gap or jumpers to contend with connections to the current loop and the power source are both made on a rugged, 4-position, screw-type terminal block. It is user-friendly design accommodates virtually hundreds of different input-current/output-reading combinations. This eliminates the majority of requirements for more costly, long-lead-time, factory "specials" especially in applications requiring several different-range meter.
