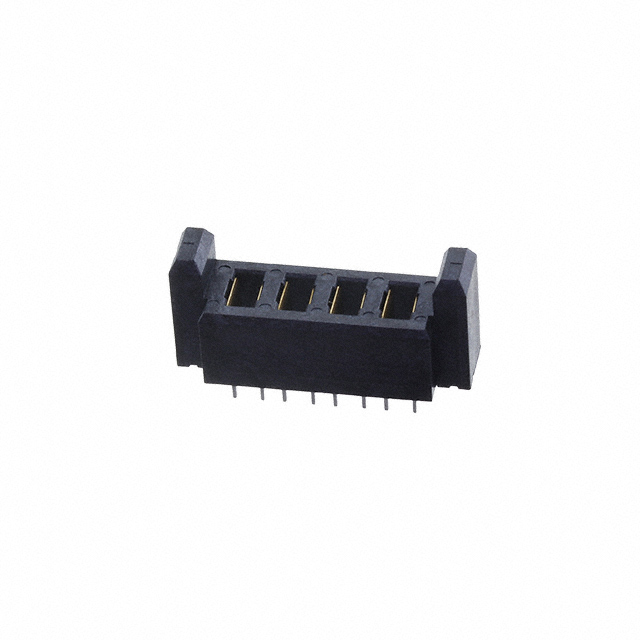

UPS-04-07.0-01-L-V - Powerstrip UPS Series

UPS-04-07.0-01-L-V

Active
Samtec Inc.

CONN DUAL BLADE POWER HEADER RCP 4POWER POS 2MM SOLDER ST TOP ENTRY THRU-HOLE POWERSTRIP™ TUBE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsUPS DatasheetUPS Series Other Related Documents 03+2
UPS-04-07.0-01-L-V - Powerstrip UPS Series

UPS-04-07.0-01-L-V

Active
Samtec Inc.

CONN DUAL BLADE POWER HEADER RCP 4POWER POS 2MM SOLDER ST TOP ENTRY THRU-HOLE POWERSTRIP™ TUBE

Deep-Dive with AI

DocumentsUPS DatasheetUPS Series Other Related Documents 03+2

Technical Specifications

Parameters and characteristics for this part

SpecificationUPS-04-07.0-01-L-V
ColorBlack
Connector TypeReceptacle, Female Blade Sockets
Contact FinishGold
Contact Finish Thickness10 Áin
Contact Finish Thickness0.25 Ám
Contact MaterialBeryllium Copper
Current Rating (Amps)20 A
Material - InsulationLiquid Crystal Polymer (LCP)
Mounting TypeThrough Hole
Number of Positions4
Number of Rows1
Operating Temperature [Max]125 °C
Operating Temperature [Min]-55 °C
Pitch [x]0.15 in
Pitch [x]3.81 mm
TerminationSolder
Voltage Rating530 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
ArrowN/A 1$ 4.27
25$ 3.86
50$ 3.59
100$ 3.42
500$ 2.76
DigikeyTube 1$ 4.27
25$ 3.86
50$ 3.59
100$ 3.58

Description

General part information

UPS-04 Series

Power to the Board .150" PowerStrip/20 A Dual Blade Power Socket Strip
