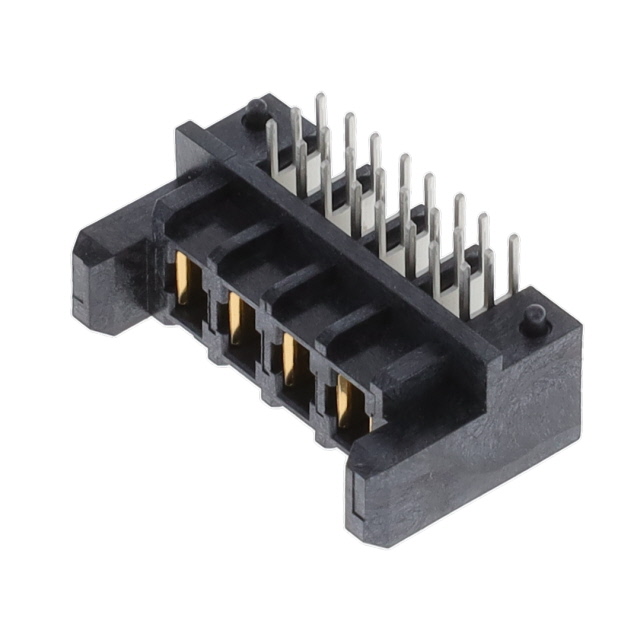

UPS-04-01-01-L-RA - UPS-04-01-01-L-RA

UPS-04-01-01-L-RA

Active
Samtec Inc.

POWER TO THE BOARD .150" POWERSTRIP/20 A DUAL BLADE POWER SOCKET STRIP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetUPS Datasheet+3
UPS-04-01-01-L-RA - UPS-04-01-01-L-RA

UPS-04-01-01-L-RA

Active
Samtec Inc.

POWER TO THE BOARD .150" POWERSTRIP/20 A DUAL BLADE POWER SOCKET STRIP

Deep-Dive with AI

DocumentsDatasheetUPS Datasheet+3

Technical Specifications

Parameters and characteristics for this part

SpecificationUPS-04-01-01-L-RA
ColorBlack
Connector TypeReceptacle, Female Blade Sockets
Contact FinishGold
Contact Finish Thickness10 Áin
Contact Finish Thickness0.25 Ám
Contact MaterialBeryllium Copper
Current Rating (Amps)20 A
FeaturesBoard Guide
Material - InsulationLiquid Crystal Polymer (LCP)
Mounting TypeThrough Hole, Right Angle
Number of Positions4
Number of Rows1
Operating Temperature [Max]125 °C
Operating Temperature [Min]-55 °C
Pitch [x]0.15 in
Pitch [x]3.81 mm
TerminationSolder
Voltage Rating620 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTube 1$ 4.70
25$ 4.25
50$ 3.95
100$ 3.94
SagerN/A 1$ 4.70
25$ 4.25
50$ 3.95
100$ 3.76
500$ 3.03
1000$ 2.79
2500$ 2.30
5000$ 2.00

Description

General part information

UPS-04 Series

Power to the Board .150" PowerStrip/20 A Dual Blade Power Socket Strip
