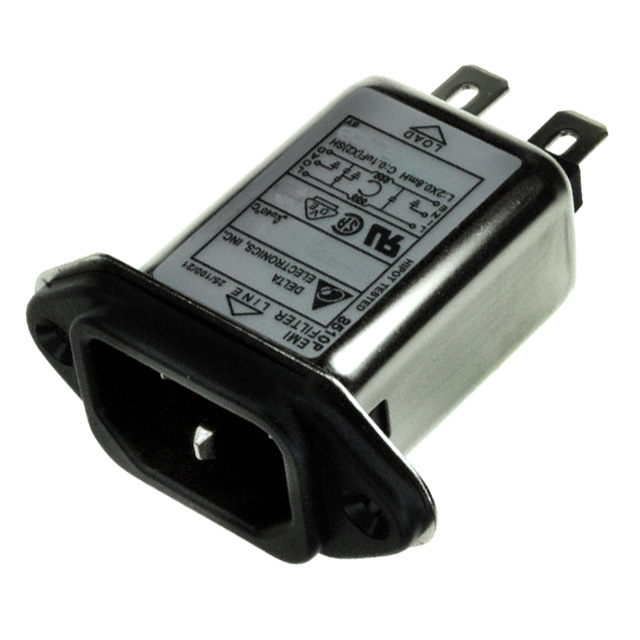

03GEEG3E
ActiveDelta Electronics
IEC CONNECTOR WITH INBUILT EMI PROTECTION, MAXIMUM CURRENT OF 3 A, MAXIMUM VOLTAGE OF 250 VAC, AND AN OPERATING FREQUENCY OF 50/60 HZ
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
03GEEG3E
ActiveDelta Electronics
IEC CONNECTOR WITH INBUILT EMI PROTECTION, MAXIMUM CURRENT OF 3 A, MAXIMUM VOLTAGE OF 250 VAC, AND AN OPERATING FREQUENCY OF 50/60 HZ
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 03GEEG3E |
|---|---|
| Accomodates a Fuse | False |
| Approval Agency | UL, VDE, CSA |
| Connector Style | IEC 320-C14 |
| Connector Type | Male Blades, Receptacle |
| Current Rating - Appliance Inlet | 3 A |
| Current Rating - Filter | 3 A |
| Filter Type | Filtered (EMI, RFI) - Commercial |
| Mounting Type | Panel Mount, Flange |
| Panel Cutout Dimensions [x] | 28.45 mm |
| Panel Cutout Dimensions [y] | 21.6 mm |
| Termination | Quick Connect |
| Voltage Rating - Appliance Inlet [Max] | 250 VAC |
| Voltage Rating - Appliance Inlet [Min] | 115 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 6.79 | |
| 10 | $ 5.20 | |||
| 25 | $ 4.69 | |||
| 50 | $ 4.35 | |||
| 100 | $ 4.04 | |||
| 250 | $ 3.67 | |||
| 500 | $ 3.42 | |||
| 1000 | $ 3.19 | |||
| 2500 | $ 2.93 | |||
Description
General part information
03GEEG Series
Power Entry Connector Receptacle, Male Blades IEC 320-C14 Panel Mount, Flange
