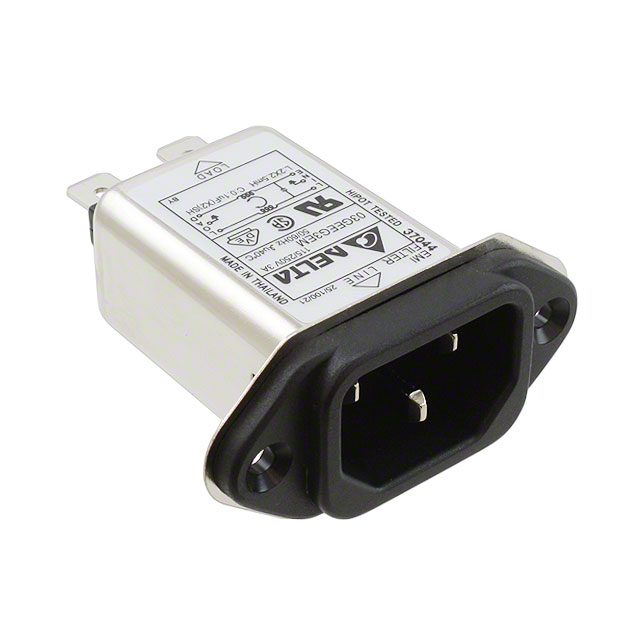

03GEEG3EM

Active

Delta Electronics

PWR ENT RCPT IEC320-C14 PANEL QC

Search across all available documentation for this part.

Active

Delta Electronics

PWR ENT RCPT IEC320-C14 PANEL QC

Technical Specifications

Parameters and characteristics for this part

Specification	03GEEG3EM

Accomodates a Fuse	False
Approval Agency	UL, VDE, CSA
Connector Style	IEC 320-C14
Connector Type	Male Blades, Receptacle
Current Rating - Appliance Inlet	3 A
Current Rating - Filter	3 A
Filter Type	Filtered (EMI, RFI) - Commercial, Medical
Mounting Type	Panel Mount, Flange
Panel Cutout Dimensions [x]	28.45 mm
Panel Cutout Dimensions [y]	21.6 mm
Termination	Quick Connect
Voltage Rating - Appliance Inlet [Max]	250 VAC
Voltage Rating - Appliance Inlet [Min]	115 VAC

Part	Connector Type	Voltage Rating - Appliance Inlet [Min]	Voltage Rating - Appliance Inlet [Max]	Features	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Filter Type	Mounting Type	Approval Agency	Termination	Current Rating - Appliance Inlet	Connector Style	Current Rating - Filter
Delta Electronics 03GEEG3E-R	Male Blades Receptacle	115 VAC	250 VAC	Bleed Resistor	21.6 mm	28.45 mm	Filtered (EMI RFI) - Commercial	Flange Panel Mount	CSA UL VDE	Quick Connect	3 A	IEC 320-C14	3 A
Delta Electronics 03GEEG3E	Male Blades Receptacle	115 VAC	250 VAC		21.6 mm	28.45 mm	Filtered (EMI RFI) - Commercial	Flange Panel Mount	CSA UL VDE	Quick Connect	3 A	IEC 320-C14	3 A
Delta Electronics 03GEEG3QM	Male Blades Receptacle	115 VAC	250 VAC		21.6 mm	28.45 mm	Filtered (EMI RFI) - Commercial Medical	Flange Panel Mount	CSA UL VDE	Quick Connect	3 A	IEC 320-C14	3 A
Delta Electronics 03GEEG3EM	Male Blades Receptacle	115 VAC	250 VAC		21.6 mm	28.45 mm	Filtered (EMI RFI) - Commercial Medical	Flange Panel Mount	CSA UL VDE	Quick Connect	3 A	IEC 320-C14	3 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	270	$ 4.21

General part information

Power Entry Connector Receptacle, Male Blades IEC 320-C14 Panel Mount, Flange
