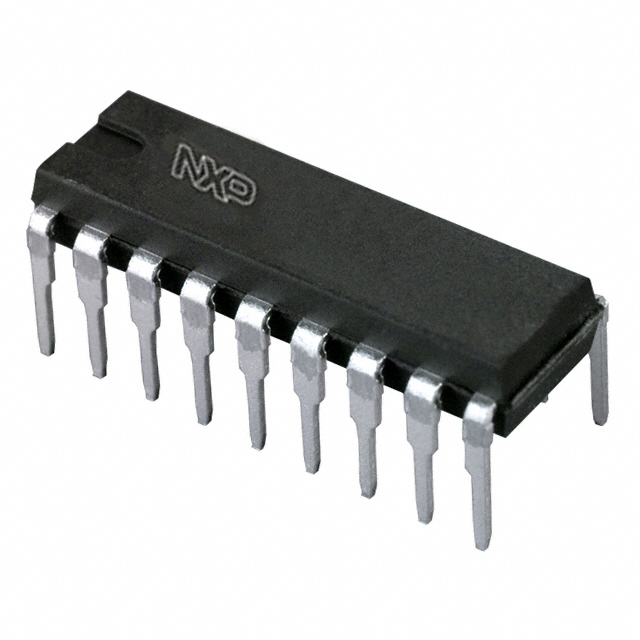

TDA1517P/N3,112

Obsolete

Freescale Semiconductor - NXP

IC AMP CLASS B STEREO 6W 18HDIP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TDA1517P/N3,112

Obsolete

Freescale Semiconductor - NXP

IC AMP CLASS B STEREO 6W 18HDIP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TDA1517P/N3,112

Features	Mute, Short-Circuit and Thermal Protection, Depop, Standby
Max Output Power x Channels @ Load	6 W
Max Output Power x Channels @ Load [x]	2
Mounting Type	Through Hole
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output Type	2-Channel (Stereo)
Package / Case	18-DIP
Package / Case [x]	0.3 in
Package / Case [x]	7.62 mm
Supplier Device Package	18-HDIP
Type	Class B
Voltage - Supply [Max]	18 V
Voltage - Supply [Min]	6 V

TDA151 Series

Part	Output Type	Max Output Power x Channels @ Load	Features	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Type	Mounting Type	Supplier Device Package	Voltage - Supply [Min]	Voltage - Supply [Max]	Package / Case [x]	Package / Case [custom]	Package / Case [custom]	Package / Case [custom]	Max Output Power x Channels @ Load [x]	Package / Case [x]	Package / Case [x]
Freescale Semiconductor - NXP TDA1519C/N3,112	1-Channel (Mono) or 2-Channel (Stereo)	11 W 22 W	Depop Mute Short-Circuit and Thermal Protection Standby	9-SIP	-25 °C	150 °C	Class B	Through Hole	9-PSIL	6 V	17.5 V
Freescale Semiconductor - NXP TDA1519CSP/N3,118	1-Channel (Mono) or 2-Channel (Stereo)	11 W 22 W	Depop Mute Short-Circuit and Thermal Protection Standby	SOT-354-1	-25 °C	150 °C	Class B	Through Hole	9-SMS	6 V	17.5 V
Freescale Semiconductor - NXP TDA1519CSP/N3,112	1-Channel (Mono) or 2-Channel (Stereo)	11 W 22 W	Depop Mute Short-Circuit and Thermal Protection Standby	SOT-354-1	-25 °C	150 °C	Class B	Through Hole	9-SMS	6 V	17.5 V
Freescale Semiconductor - NXP TDA1519CTD/N3,118	1-Channel (Mono) or 2-Channel (Stereo)	11 W 22 W	Depop Mute Short-Circuit and Thermal Protection Standby	20-SOIC (0.433" 11.00mm Width) Exposed Pad	-25 °C	150 °C	Class B	Surface Mount	20-HSOP	6 V	17.5 V	11 mm
Freescale Semiconductor - NXP TDA1517ATW/N1,112	1-Channel (Mono) or 2-Channel (Stereo)	4 W 8 W	Depop Mute Short-Circuit and Thermal Protection Standby		-40 °C	85 °C	Class B	Surface Mount	20-HTSSOP	6 V	18 V		0.173 in 4.4 mm	Exposed Pad	20-TSSOP
Freescale Semiconductor - NXP TDA1517/N3,112	2-Channel (Stereo)	6 W	Depop Mute Short-Circuit and Thermal Protection Standby	9-SIP Exposed Tab	-40 °C	85 °C	Class B	Through Hole	9-SIL MPF	6 V	18 V					2
Freescale Semiconductor - NXP TDA1519CTD/N3,112	1-Channel (Mono) or 2-Channel (Stereo)	11 W 22 W	Depop Mute Short-Circuit and Thermal Protection Standby	20-SOIC (0.433" 11.00mm Width) Exposed Pad	-25 °C	150 °C	Class B	Surface Mount	20-HSOP	6 V	17.5 V	11 mm
Freescale Semiconductor - NXP TDA1516BQ/N2,112	1-Channel (Mono) or 2-Channel (Stereo)	12 W 22 W	Differential Inputs Mute Standby	13-SIP Formed Leads			Class B	Through Hole	13-PDBS	6 V	18 V
Freescale Semiconductor - NXP TDA1517P/N3,112	2-Channel (Stereo)	6 W	Depop Mute Short-Circuit and Thermal Protection Standby	18-DIP	-40 °C	85 °C	Class B	Through Hole	18-HDIP	6 V	18 V					2	0.3 in	7.62 mm
