7029-2555
ActiveAmphenol SV Microwave

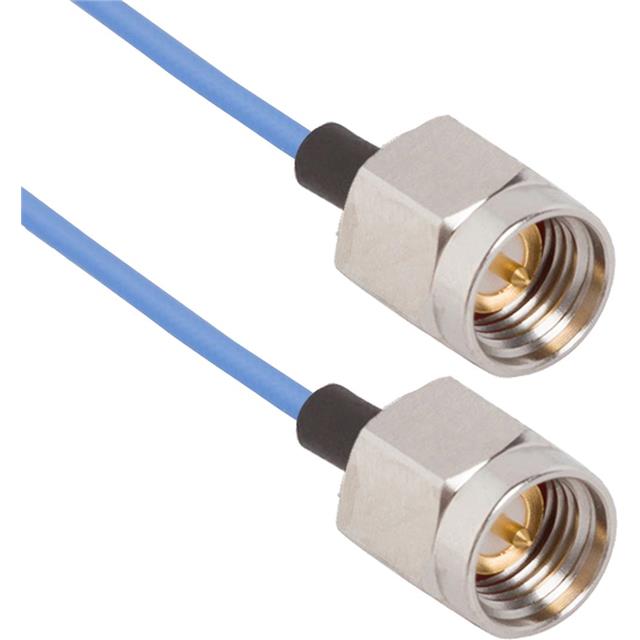

CBL ASSY SMA PLUG TO PLUG 6"
Deep-Dive with AI
Search across all available documentation for this part.
7029-2555
ActiveAmphenol SV Microwave
CBL ASSY SMA PLUG TO PLUG 6"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 7029-2555 |
|---|---|
| 1st Connector | SMA Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | SMA Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Type | 0.047" Flexible Cable |
| Color | Blue |
| Features | Shielded |
| Frequency - Max [Max] | 18 GHz |
| Length | 152.4 mm |
| Length | 6 in |
| Operating Temperature [Max] | 165 °C |
| Operating Temperature [Min] | -65 ░C |
| Overall Impedance | 50 Ohms |
| Style | SMA to SMA |
7029 Series
| Part | Features | Frequency - Max [Max] | Cable Type | Color | Length | Length | 1st Connector | 2nd Connector | 2nd Connector Mounting Type | Overall Impedance | Operating Temperature [Min] | Operating Temperature [Max] | Style | 2nd Contact Gender | 1st Connector Mounting Type | 1st Contact Gender |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol SV Microwave | Shielded | 18 GHz | 0.047" Flexible Cable | Blue | 24 " | 609.6 mm | SMA Jack | SMPM Jack | Free Hanging (In-Line) | 50 Ohms | -65 ░C | 165 °C | SMA to SMPM | Female | Free Hanging (In-Line) | Female |
Amphenol SV Microwave | Shielded | 18 GHz | 0.047" Flexible Cable | Blue | 12 " | 304.8 mm | SMA Plug | SMA Plug | Free Hanging (In-Line) | 50 Ohms | -65 ░C | 165 °C | SMA to SMA | Male | Free Hanging (In-Line) | Male |
Amphenol SV Microwave | Shielded | 18 GHz | TFlex-405 | Blue | 6 in | 152.4 mm | SMPM Jack | SMA Plug Right Angle | Free Hanging (In-Line) | 50 Ohms | -65 ░C | 165 °C | SMA to SMPM | Male | Free Hanging (In-Line) | Female |
Amphenol SV Microwave | Shielded | 18 GHz | TFlex-405 | Blue | 24 " | 609.6 mm | SMA Plug | SMA Plug | Free Hanging (In-Line) | 50 Ohms | -65 ░C | 165 °C | SMA to SMA | Male | Free Hanging (In-Line) | Male |
Amphenol SV Microwave | Shielded | 18 GHz | 0.047" Flexible Cable | Blue | 12 " | 304.8 mm | SMPM Jack | SMA Plug Right Angle | Free Hanging (In-Line) | 50 Ohms | -65 ░C | 165 °C | SMA to SMPM | Male | Free Hanging (In-Line) | Female |
Amphenol SV Microwave | Shielded | 18 GHz | TFlex-405 | Blue | 12 " | 304.8 mm | SMA Plug | SMA Plug | Free Hanging (In-Line) | 50 Ohms | -65 ░C | 165 °C | SMA to SMA | Male | Free Hanging (In-Line) | Male |
Amphenol SV Microwave | Shielded | 18 GHz | 0.047" Flexible Cable | Blue | 12 " | 304.8 mm | SMA Jack | SMPM Jack | Free Hanging (In-Line) | 50 Ohms | -65 ░C | 165 °C | SMA to SMPM | Female | Free Hanging (In-Line) | Female |
Amphenol SV Microwave | Shielded | 18 GHz | 0.047" Flexible Cable | Blue | 6 in | 152.4 mm | SMA Plug | SMA Plug | Free Hanging (In-Line) | 50 Ohms | -65 ░C | 165 °C | SMA to SMA | Male | Free Hanging (In-Line) | Male |
Amphenol SV Microwave | Shielded | 18 GHz | TFlex-405 | Blue | 12 " | 304.8 mm | SMA Jack | SMPM Jack | Free Hanging (In-Line) | 50 Ohms | -65 ░C | 165 °C | SMA to SMPM | Female | Free Hanging (In-Line) | Female |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 77.54 | |
| 10 | $ 71.15 | |||
| 25 | $ 68.42 | |||
| 50 | $ 66.14 | |||
| 100 | $ 62.49 | |||
Description
General part information
7029 Series
Cable Assembly Coaxial SMA to SMA 0.047" Flexible Cable 6.000" (152.40mm)
